Microchip Technology MCP606T-I/OT

Summary of MCP606T-I/OT by Microchip Technology

The MCP606T-I/OT from Microchip Technology represents a versatile, general-purpose single-channel CMOS operational amplifier, housed in a compact SOT-23-5 package. Designed for high-precision applications in a space-saving form factor, the MCP606T-I/OT is part of the MCP606/7/8/9 op amp family, which targets battery-powered instruments, high-impedance sensors, and applications requiring rail-to-rail outputs. Its 2.5V to 6.0V supply voltage range, low power consumption, and robust industrial temperature tolerance (-40°C to +85°C) position it as a reliable standard for both consumer and industrial electronics.

Main electrical specifications of MCP606T-I/OT by Microchip Technology

The MCP606T-I/OT amplifier is engineered for precise signal processing with a low input offset voltage of 250 µV (maximum), minimizing inherent measurement errors. Its input bias current is rated at 80 pA maximum at +85°C, and quiescent current is limited to 25 µA maximum, enabling designs where power efficiency is critical. Notably, the device supports rail-to-rail output, which maximizes dynamic range in low-voltage environments. With unity-gain stability and no phase reversal, system designers can trust its consistent amplification even under demanding input and output swings. The absolute maximum ratings accommodate supply voltages up to 7.0V, robust input and output currents, and comprehensive ESD protection (≥3 kV HBM), ensuring durability for real-world deployment.

Operational features and capabilities of MCP606T-I/OT by Microchip Technology

At the core of the MCP606T-I/OT is Microchip’s advanced CMOS process, supporting ultra-low power operation while sustaining high input impedance. The PMOS input stage allows for input common mode voltages that extend below ground (VSS) up to VDD-1.1V, accommodating high-impedance sensor interfaces and ground-referenced signals. Designers benefit from rail-to-rail output capable of swinging within 15 mV of the negative rail under a 25 kΩ load, thus ensuring that the full supply voltage range is available for signal output. The device handles capacitive loads gracefully, with straightforward compensation via an output series resistor, promoting stability in applications such as buffers or analog sensor interfaces.

A variety of performance graphs – including input offset voltage drift, quiescent current variations, open-loop gain, bandwidth, and noise density – further substantiate its credentials for precision analog signal chains.

Use cases and applications of MCP606T-I/OT by Microchip Technology

The MCP606T-I/OT excels in several key engineering applications:

Battery-powered instruments: Minimal quiescent current and input bias enable precise current measurement and signal conditioning without sacrificing battery life.

High-impedance sensors: Its negligible input bias and offset error are ideal for interfacing with strain gauges, medical sensors, or photodiodes, where signal integrity is paramount.

Test and measurement equipment: In low-side battery current sensing circuits, the MCP606T-I/OT delivers accurate load current conversions using differential amplification with reference resistors.

Precision amplifiers: Application topologies such as transimpedance amplifiers (for photodiode sensors in both photovolatic and photoconductive modes), twoand three-op-amp instrumentation amplifiers, and load isolation circuits all benefit from the MCP606T-I/OT’s characteristics of low offset, rail-to-rail I/O, and high input impedance.

For optimal performance, PCB design considerations such as guard rings around sensitive input pins are recommended to minimize surface leakage, particularly in ultra-low current applications.

Packaging types and physical specifications of MCP606T-I/OT by Microchip Technology

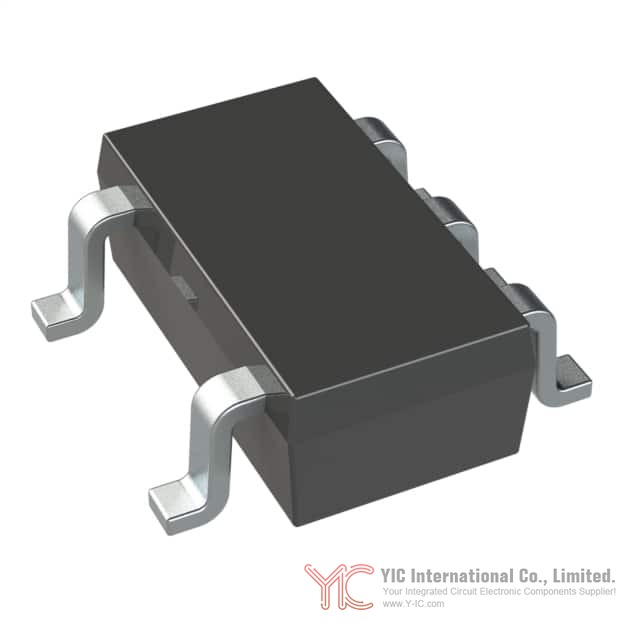

The MCP606T-I/OT features a space-efficient SOT-23-5 package, ideal for high-density layouts and portable instrumentation. The MCP606 series also includes variants in standard PDIP, SOIC, and TSSOP formats, catering to prototyping and mass production needs alike. Package marking follows industry standards for traceability, with clear year and week codes and full RoHS compliance. Precise land pattern recommendations and mechanical drawings are available from Microchip, ensuring reliable soldering and assembly during PCB manufacture.

Design assistance and technical documentation for MCP606T-I/OT by Microchip Technology

Microchip Technology provides a comprehensive suite of design aids for the MCP606T-I/OT:

SPICE macro models for linear and transient simulations, ensuring accurate prediction of analog chain performance under specific load, voltage, and temperature conditions.

FilterLab® software, simplifying the design of active analog filters and giving ready-to-use schematics.

Mindi™ Circuit Designer & Simulator, which lets designers quickly model, analyze, and export analog circuits.

Microchip Advanced Part Selector (MAPS), facilitating device comparison and selection within Microchip’s portfolio.

Application notes covering op amp selection, DC/AC performance, capacitive load driving, and analog sensor interfacing.

Evaluation boards tailored for SOIC, MSOP, TSSOP, DIP, and quad package configurations, expediting prototyping and bench testing.

Alternative or compatible models for MCP606T-I/OT by Microchip Technology

For designs that require alternative channel counts or package options, engineers may consider other members of the MCP606/7/8/9 op amp family:

MCP608: Single op amp with Chip Select (CS) feature, available in 8-lead PDIP, SOIC, and TSSOP packages, ideal for designs needing low-power on-demand operation.

MCP607: Dual op amps in standard dual packages for space-efficient dual-channel analog front ends.

MCP609: Quad op amps in 14-lead packages, supporting multiple signal channels in test equipment or sensor arrays.

These devices share the core low-power, rail-to-rail output, and high-precision electrical specifications, allowing straightforward interchange depending on system requirements. Selection may depend on channel count, board space, and specific feature needs (e.g., Chip Select capability).

Conclusion

The MCP606T-I/OT from Microchip Technology delivers a compelling combination of precision, low noise, and ultra-low power operation in a compact SOT-23-5 package. Its robust electrical performance, versatile package options, and extensive application support make it a standout choice for engineers developing battery-powered instruments, high-impedance sensor interfaces, and general analog front-end subsystems. Supported by Microchip’s tools, resources, and broad family portfolio, the MCP606T-I/OT remains a reliable solution for modern analog design challenges.
