Microchip Technology ATSAME70N20A-CNT

Microchip ATSAME70N20A-CNT Product Summary

The ATSAME70N20A-CNT, developed by Microchip Technology, offers an ARM® Cortex®-M7 MCU platform optimized for demanding embedded applications that require high computational performance, robust connectivity, and advanced analog integration. This device is positioned within the SAM E70 family, delivering a balanced combination of processing capability, substantial on-chip memory, comprehensive interfacing, and integrated safety features. Specifically, ATSAME70N20A-CNT features a 32-bit core running at up to 300 MHz, 1 MB embedded Flash, and a compact 100-ball TFBGA package (9x9 mm), delivering an effective package-to-performance ratio for space-constrained designs.

Processing Core Architecture and Memory Structure of ATSAME70N20A-CNT

At the heart of the ATSAME70N20A-CNT is the ARM Cortex-M7 single-core processor, running at 300 MHz. The processing system is supported by 16 KB each of instruction and data cache with ECC, a Memory Protection Unit partitioned into 16 zones, DSP and Thumb-2 instruction set support, and a single/double-precision hardware floating-point unit (FPU) to accelerate complex arithmetic and signal processing tasks.

The memory architecture is equally advanced. Besides the 1 MB internal Flash, the microcontroller integrates up to 384 KB of multi-port SRAM, optimized through multi-port access and interleaved addressing for performance and deterministic latency. For critical code and data, tightly coupled memory (TCM) is available, running at processor speed for maximum determinism—essential for real-time systems. Additional memory resources include 16 KB of ROM with bootloader and in-application programming support, and 1 KB of battery-backed SRAM for retention in low-power modes.

ATSAME70N20A-CNT employs flexible external memory interfaces; through its static memory controller, it supports standard SRAM, PSRAM, NOR and NAND Flash, and LCD modules, with on-the-fly encryption for security. This enables system expansion by interfacing with large external memory arrays, if needed.

Power Management and Supply Innovations in ATSAME70N20A-CNT

ATSAME70N20A-CNT is engineered for efficient low-power operation without sacrificing performance. An embedded voltage regulator allows seamless single-supply operation, with the supply voltage spanning 1.7V to 3.6V for industrial variants. Robust supply monitoring is enabled by integrated Power-on-Reset (POR), Brown-out Detector (BOD), and dual watchdog timers (including a reinforced safety watchdog) to support safe operation through voltage excursions and software deadlocks.

Multiple power modes—active, sleep, wait, and backup—enable flexible configuration for application-specific energy profiles. In backup mode, the device consumes as little as 1.1 μA, retaining RTC, RTT, and backup SRAM contents. Wakeup can be achieved via configurable external pins, supply monitoring events, or internal timer alarms, catering to safety-critical or battery-powered product requirements. Fast startup logic ensures that critical tasks resume within microseconds from low-power states, reducing latency in real-time event-driven systems.

I/O Interfaces, System Signals, and Package Choices for ATSAME70N20A-CNT

The device offers up to 114 general-purpose I/O lines with advanced features such as programmable pullup/down, Schmitt triggers, glitch and debounce filters, and on-die serial resistor termination for improved signal integrity and lower EMI. Each I/O line supports interrupt-on-change and is controlled by highly-configurable PIO controllers.

System I/O lines support critical features such as oscillators, resets, debugging, JTAG boundary scan, and flash erase. The NRST and ERASE pins enable system-wide and memory erasure options, respectively, and are protected via built-in resistors and debounce logic.

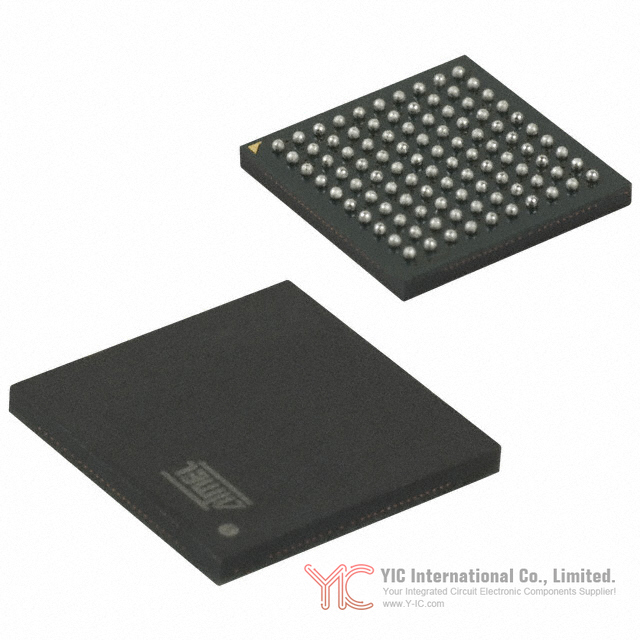

The ATSAME70N20A-CNT variant is delivered in a 100-ball TFBGA package (9x9 mm, 0.8 mm pitch), well-suited for high-density PCB design. Multiple package options are available across the SAM E70 family for varying pin-count and board footprint needs, including QFP and BGA forms, to ease integration into diverse projects.

Peripheral Functions and Connection Options of ATSAME70N20A-CNT

ATSAME70N20A-CNT integrates an extensive set of high-performance peripherals, ideally suited for complex, communications-intensive applications. Key interfaces include:

Ethernet MAC (GMAC) supporting IEEE 1588 PTP, energy-efficient Ethernet, AVB with timestamping, and credit-based traffic shaping—essential for industrial automation and networked audio/video.

USB 2.0 High-Speed Device/Mini Host functionality (480 Mbps, up to 10 endpoints), facilitating rapid external communications and firmware downloads.

Dual CAN-FD controllers for real-time, high-speed communication in automotive and industrial automation use cases.

Dedicated serial interfaces: three USARTs (with LIN, ISO7816, IrDA, RS-485, LON), five UARTs, multiple I2C-compliant two-wire interfaces, and quad-SPI (QSPI) with XIP support for large serial NOR Flash.

Image sensor interface (ISI) and MediaLB for multimedia and automotive infotainment connections.

Rich timer subsystem: four 16-bit timer/counters with capture, waveform, PWM; two advanced PWM controllers supporting high-resolution motor control, power factor correction, lighting, and fault protection.

Analog features: Dual 12-channel analog front-end converters (AFEC), high-speed dual-channel DAC, and analog comparator for precision, real-time measurement and actuation.

Peripheral signal multiplexing, managed through multiple PIO controllers, allows dynamic assignment of package pins to peripheral or digital I/O functions—critically enabling flexible board layout strategies.

Flash Storage Handling Improved Embedded Flash Controller (EEFC) in ATSAME70N20A-CNT

A critical feature for modern MCUs is robust on-chip flash management. The Enhanced Embedded Flash Controller (EEFC) in ATSAME70N20A-CNT supports fast code execution via a 128-bit wide memory bus and integrated code/data prefetch buffers, reducing wait states at high clock frequencies. Multiple flash programming, erase, and lock/unlock sequences are supported via protected command interfaces.

Additional features include a 512-byte user signature area, a unique device identifier (UID) programmed at manufacturing, and lock regions for IP protection. Numerous general-purpose nonvolatile memory (GPNVM) bits permit flexible boot and security configuration. ECC protection and error reporting ensure code/data reliability for safety-critical systems.

The ATSAME70N20A-CNT further provides parallel programming support via a Fast Flash Programming Interface (FFPI) for volume production scenarios and supports in-field firmware upgrades using ROM-based SAM-BA and IAP functions.

Security, Encryption, and Protection Features Integrated in ATSAME70N20A-CNT

To meet the requirements of connected devices in industrial, automotive, and security-conscious applications, the ATSAME70N20A-CNT integrates a hardware cryptography engine (AES-256, 192, 128) compliant with FIPS PUB-197, a true random number generator, and secure hash algorithm (SHA1, SHA224, SHA256) support. The Integrity Check Monitor (ICM) enables on-the-fly flash, SRAM, and peripheral data integrity verification.

System safety is augmented by dual independent watchdogs, a supply monitor, brownout detector, programmable reset controller, and memory protection unit. These features collectively address industrial and automotive functional safety needs, and conform to standards like AEC-Q100, making the device highly suitable for long-life or mission-critical products.

Debug, Testing, and Programming Capabilities of ATSAME70N20A-CNT

For efficient development and field diagnostics, ATSAME70N20A-CNT provides a wide set of debugging capabilities:

ARM Serial Wire Debug Port (SW-DP) and six-pin Embedded Trace Macrocell (ETM) for real-time instruction and data tracing

Flash Patch and Breakpoint (FPB), Data Watchpoint and Trace (DWT), and Instrumentation Trace Macrocell (ITM) units to facilitate complex debugging

IEEE1149.1 JTAG boundary scan for production testing

Dedicated boot assistance programs in ROM, enabling secure and flexible code download via UART and USB interfaces

Support for parallel gang programming with FFPI

Robust register protection mechanisms throughout the EEFC, system, and supply controllers, reducing the risk of accidental configuration or firmware update errors

These features ensure that both initial development, system integration, and long-term maintenance can be conducted with efficiency and confidence.

Comparable or Substitute Devices for ATSAME70N20A-CNT

Engineering teams considering the ATSAME70N20A-CNT may also evaluate other models within the Microchip SAM E70 family for alignment with memory, package, and peripheral needs. For instance, SAM E70 series devices offer a range of Flash (512 KB to 2 MB) and SRAM (256 KB to 384 KB) options, as well as varying pin counts and feature sets. The closely related SAM S70, V70, and V71 families provide different mixes of CAN, Ethernet, and MediaLB support; notably, S70 devices remove CAN-FD and Ethernet, while V71 models add automotive-grade (AEC-Q100) qualifications. Direct pin- and software-compatible replacements can often be found within these families, allowing for scalability across performance tiers or future-proofing for potential supply chain constraints.

Conclusion

The ATSAME70N20A-CNT integrates industry-leading computational performance, connectivity, memory, and safety features within a compact footprint, making it a top contender for embedded system solutions in sectors like industrial automation, automotive control, telecommunications, and advanced instrumentation. Its advanced ARM Cortex-M7 core, robust peripheral offering, flexible power management, comprehensive security, and scalable family roadmap address both short- and long-term design challenges for engineers. Selection engineers and procurement specialists will find the ATSAME70N20A-CNT (and broader SAM E70 range) aligns with state-of-the-art embedded design best practices, while offering flexibility for adaptation as project requirements evolve.
