Texas Instruments TMS320C6746BZWTA3

Summary of TMS320C6746BZWTA3 by Texas Instruments

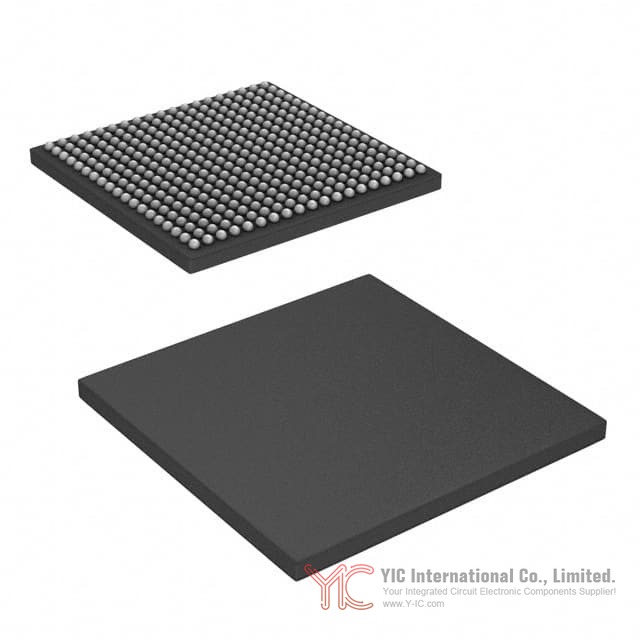

The TMS320C6746BZWTA3 is a fixed- and floating-point digital signal processor (DSP) developed by Texas Instruments, part of the TMS320C674x series. Housed in a 361-ball NFBGA package, this low-power, high-performance DSP is designed for embedded applications requiring robust processing, flexibility in interfacing, and efficiency in both algorithm execution and system integration. The device supports both commercial and industrial temperature ranges, making it suitable for use in a diverse array of electronic environments.

Main Characteristics of the TMS320C6746BZWTA3

At the core of the TMS320C6746BZWTA3 are several architectural innovations and peripheral resources that facilitate demanding real-time signal processing, including:

Up to 456 MHz operation, yielding up to 3648 MIPS and 2746 MFLOPS.

Superset instruction set compatible with Texas Instruments’ C64x+ and C67x+ DSP series for mixed fixed/floating-point applications.

Two-level cache architecture with 32KB L1P program RAM/cache, 32KB L1D data RAM/cache, and 256KB unified L2 RAM/cache, all with flexible partitioning.

Comprehensive external memory interface supporting asynchronous NOR/NAND, SDRAM, as well as high-speed DDR2/mobile DDR.

Rich selection of serial and parallel interfaces: three UARTs, two SPIs, two I2C buses, USB 2.0 OTG with integrated PHY, MMC/SD, and more.

Programmable Real-Time Unit Subsystem (PRUSS) for industrial and protocol-specific tasks.

Advanced peripheral set, including Ethernet MAC (10/100 Mbps), video and audio ports (McASP, McBSP, VPIF, uPP), enhanced DMA, timers, and PWM modules.

Power management and clock gating functions for energy sensitive designs.

CPU Architecture and Memory Structure of TMS320C6746BZWTA3

The heart of the TMS320C6746BZWTA3 is the C674x DSP core, bringing together the raw fixed-point throughput of C64x+ and the floating-point capability of C67x+ architecture. It features 64 general-purpose 32-bit registers split into dual banks, and eight functional units (.M, .L, .D, .S types) responsible for parallel multiply, arithmetic, load/store, and control tasks. This versatile setup allows simultaneous execution of multiple SP/DP floating-point or integer operations, making it ideal for signal processing workloads employing Fast Fourier Transforms, sorting algorithms, and data packing/unpacking.

A two-level cache design underpins the memory architecture, with a configurable L1 program/data cache and a sizable L2 unified cache expandable to mapped RAM. The device’s on-chip memory resources are complemented by access to external memory via dual memory controllers: EMIFA (for NOR/NAND/SDRAM) and dedicated DDR2/mDDR controller supporting up to 256MB address space, advanced DDR2 features, and optimized PCB routing.

Integrated Peripherals and Interfaces in TMS320C6746BZWTA3

The TMS320C6746BZWTA3 stands out for its broad peripheral integration, facilitating system-level design and connectivity:

Serial Communication: Three configurable UARTs with modulated FIFOs and auto-flow controls, two SPIs, and two I2C buses (400Kbps fast-mode) support standard industrial protocols.

High-Speed Data Transfer: MMC/SDIO (up to MMC v4.0 and SD v2.0), USB 2.0 OTG with host and device modes, and 10/100 Mbps Ethernet MAC with MII/RMII and MDIO management.

Audio and Video Processing: Audio interfaces comprise McASP (16 serializers), McBSP (TDM, I2S, AC97), and FIFO buffers for robust DMA-tolerant streams. The VPIF video interface supports SD and raw capture/display channels.

Parallel Expansion: Universal Parallel Port (uPP) and Host-Port Interface (UHPI) enable high-bandwidth parallel communication with FPGAs, ADC/DACs, and external host processors.

PWM and Timing: Enhanced HRPWM modules, timers (three 64-bit general-purpose), eCAP capture/PWM modules, and real-time clock (RTC) support for precise timing and control.

Programmable Real-Time Unit Subsystem (PRUSS): Two independent PRU cores offering rapid bit manipulation, protocol emulation, and custom industrial automation tasks.

Pin multiplexing, controlled by flexible SYSCFG registers, enables each pin to support several alternate functions. This optimizes package size while providing interface adaptability for complex designs.

System Setup, Startup Options, and Power Control for TMS320C6746BZWTA3

System configuration in the TMS320C6746BZWTA3 is managed via the SYSCFG module, responsible for device identification, pin multiplexing, master bus priorities, boot state capture, and pull-up/pull-down management. It introduces fine-grained control over power domains and module resets, facilitating efficient power and clock gating for both local and global modules.

Boot modes are software-selectable, offering support for NAND/NOR flash, HPI, I2C, SPI, UART, and MMC/SD booting sequences based on sampled pin states. The internal ROM bootloader provides flexibility for multi-stage boot implementations in embedded systems.

Power supply sequencing is straightforward, with detailed recommendations to ensure logic supplies, IO rails, and RTC power sequencing to prevent latch-up and guarantee a stable start-up. Dynamic voltage and frequency scaling (DVFS) is supported for real-time power management, with integrated tools to manage transitions across voltage/performance points.

Electrical Parameters for TMS320C6746BZWTA3

The TMS320C6746BZWTA3 offers robust electrical characteristics, with attention to ESD protection (500V HBM, 250V CDM), absolute maximum ratings suited for extended operation, and recommended junction temperature and supply voltages supporting both 3.3V and 1.8V IO configurations. Internal pull-up/pull-down resistors minimize the requirement for external bias components except when system-specific logic levels demand additional assurance.

Key timing and signal integrity specifications are provided for each interface—clock input, PLLs, memory controllers, and communication ports—enabling designers to maintain reliable signal margins and meet interface standards.

Best Design Guidelines for Using TMS320C6746BZWTA3

For optimal system reliability, designers should:

Implement proper external pull-up/pull-down resistors on boot/configuration pins as needed.

Observe supply sequencing and reset protocols, ensuring all IO rails are powered before releasing device reset.

Follow PCB design rules for memory interfaces (especially DDR2/mDDR): six-layer stack-ups, keepout regions, balanced T topology for CK/ADDR_CTRL, and correct placement and sizing of bypass capacitors.

Respect trace length and impedance constraints for high-speed interfaces according to device guidelines to guarantee signal integrity, particularly in sensitive audio, video, or memory expansion applications.

Common Use Cases for TMS320C6746BZWTA3

The TMS320C6746BZWTA3 is deployed in a broad spectrum of embedded signal processing tasks, including:

Currency inspection systems—rapid, real-time signal analysis for automated recognition.

Entry-level machine vision—low-power, cost-effective processing for algorithmic image evaluation.

Biometric identification—fixed/floating-point mixed precision computing for fingerprint, iris, and facial recognition platforms.

Industrial automation—protocol handling via PRUSS and extensive GPIOs.

Audio/video acquisition and conversion—using McASP/McBSP for multichannel codec integration.

Alternative or Substitute Models for TMS320C6746BZWTA3

For design scalability or risk mitigation, engineers may consider devices in the same series offering similar architecture and compatibility. The TMS320C6748 or TMS320C6742, also based on the C674x core, provide ABI and source-level compatibility, but with variations in peripheral set, performance, or package type. The C6000 family’s C64x+ and C67x+ devices are code-compatible, offering migration pathways for previous product generations. For designs requiring higher performance, memory, or peripheral richness, evaluating higher-end TMS320C6000 series members is recommended, ensuring system requirements align with supported interfaces and signal standards.

Conclusion

The Texas Instruments TMS320C6746BZWTA3 is a comprehensive fixed- and floating-point DSP solution balanced between performance, low power, and integration. Its two-level cache architecture, parallel processing capabilities, and rich set of on-chip peripherals make it ideally suited for engineers designing complex, high-speed embedded hardware in industrial automation, signal processing, and multimedia applications. Attention to recommended system design practices and selection of the appropriate device variant or equivalent platform ensures reliable operation, upgradeability, and long-term manufacturability.
