Summary of the TMS320C6205DZWT200 Fixed-Point DSP

The Texas Instruments TMS320C6205DZWT200 is a high-performance fixed-point digital signal processor (DSP) tailored for computation-intensive, real-time embedded signal processing applications. Fabricated using 0.15 µm CMOS technology and housed in a 288-ball grid array (BGA) package, this device stands as a powerful member of the TMS320C62x DSP family, operating at clock rates up to 200 MHz and achieving a performance benchmark of 1600 million instructions per second (MIPS). The TMS320C6205DZWT200 is engineered to enable efficient processing, parallel computation, and flexible interfacing for a diverse range of digital signal processing tasks in communications, industrial, and embedded domains.

Processor Architecture of the TMS320C6205DZWT200

At the heart of the TMS320C6205DZWT200 is the VelociTI™ advanced very-long-instruction-word (VLIW) architecture, a defining feature of Texas Instruments’ C62x series. The processor houses eight highly independent functional units: six 32–/40–bit arithmetic logic units (ALUs) and two 16-bit multipliers capable of 32-bit results. This architecture allows the execution of up to eight instructions per cycle through its parallel execution model, maximizing computational throughput. A load-store design with 32 general-purpose 32-bit registers ensures high data availability, while features like instruction packing, conditional instructions, and advanced addressing modes (including indirect, linear, and circular) provide both flexibility and code size efficiency. The robust core facilitates up to two multiply-accumulate operations per cycle, supporting high-demand DSP algorithms such as those used in multimedia, telecommunication, and control systems.

System Throughput and Processing Strength of the TMS320C6205DZWT200

The TMS320C6205DZWT200 delivers a 5-nanosecond instruction cycle, enabling deterministic real-time processing suitable for latency-sensitive operations in multichannel and multifunction systems. The processor’s architecture is engineered for extreme parallelism, leading to optimized performance for high-throughput signal processing routines. Engineers can leverage 1600 MIPS and 400 MMACS (million multiply-accumulates per second), ensuring adequate headroom for increasingly complex algorithms.

Instruction set extensions enable operations such as overflow protection, normalization, bit-field manipulation, and bit-counting—essential for developing robust embedded applications. These features, coupled with a rich set of conditional execution capabilities, allow designers to implement advanced digital filtering, adaptive algorithms, and customized data-handling routines efficiently.

Built-in Memory and Peripheral Features of the TMS320C6205DZWT200

The TMS320C6205DZWT200 integrates 1 megabit of fast-access on-chip SRAM, split into two main blocks: a 512K-bit (16K x 32-bit) configurable program/cache memory, and a dual-access 512K-bit (64K bytes) data RAM organized as two 32K-byte banks for concurrent processor accesses. This substantial on-chip memory reduces reliance on external memory components, accelerating processing and lowering system latency in time-critical applications.

Peripheral resources include:

Two multichannel buffered serial ports (McBSPs), compatible with industry standards like T1/E1, MVIP, SCSA, ST-Bus, and AC’97 codecs. Each McBSP supports up to 256 channels, enabling direct interfacing with a variety of digital communication and audio converters.

Two 32-bit general-purpose timers for precise timing, pulse generation, or event counting.

A flexible 32-bit/33-MHz PCI master/slave interface (compliant with PCI v2.2 and PC99), providing seamless connectivity to host processors and high-speed system peripherals.

A four-channel direct memory access (DMA) controller supporting autonomous and fast memory transactions—crucial for offloading high-bandwidth data movement from the CPU.

A glueless external memory interface (EMIF) supporting both synchronous (SDRAM, SBSRAM) and asynchronous (SRAM, EPROM) memories, addressing up to 52 Mbytes of external space.

Connectivity Options and Interface Specifications for TMS320C6205DZWT200

The TMS320C6205DZWT200 is equipped with a comprehensive set of industry-standard interfaces, simplifying integration into complex system architectures.

PCI Interface: The 32-bit, 33-MHz PCI controller supports both master and slave operations. It enables direct access to the DSP's internal resources and external memory, with built-in support for prefetchable and non-prefetchable memory and I/O spaces. Four 8-entry x 32-bit FIFOs enhance data throughput across the PCI bus.

EMIF: The external memory interface allows direct connection to synchronous DRAMs, synchronous-burst SRAMs, and various asynchronous memory devices without the need for glue logic. Multiple programmable timing parameters facilitate support for diverse memory types.

Serial Connectivity: Two McBSPs support protocols such as SPI, T1/E1, and AC’97, offering flexible options for data streaming and peripheral interfacing in communication, audio, or industrial applications.

JTAG: IEEE-1149.1-compliant test access port supports boundary scan testing and emulation, facilitating board-level test and in-system debugging with standard TI development tools.

EEPROM Interface: 4-wire serial interface allows connection to configuration EEPROMs for boot-time parameterization.

Power Control and Power-Up Procedures of the TMS320C6205DZWT200

The TMS320C6205DZWT200 incorporates robust power management features to optimize energy consumption and system integration.

Core and I/O voltages are supplied separately (1.5 V for the core and 3.3 V for I/Os, with 5-V tolerance on PCI pins), allowing compatibility with a broad range of board-level designs.

No strict sequencing is required between the core and I/O supplies, but simultaneous activation is recommended to avoid excessive transient currents and ensure safe start-up.

Integrated flexible phase-locked loop (PLL) circuitry allows the use of a wide range of input clocks and provides system designers with options for frequency scaling and jitter management.

Multiple power-down modes are programmable via control register fields, enabling deep-sleep and low-power standby for battery-sensitive or low-duty-cycle applications. Engineers should refer to the control/status register (CSR) specification for correctly programming and utilizing these modes.

All PLL-related components and supply routing should minimize noise coupling, as recommended in the device datasheet and TI layout guidelines.

Timing, Signal Integrity, and Electrical Properties of TMS320C6205DZWT200

The TMS320C6205DZWT200 delivers tightly controlled electrical and timing parameters, critical for high-performance embedded and real-time systems. Input clock frequency, PCI timing requirements, EMIF asynchronous and synchronous timing, interrupt response, reset assertion, and serial interface timings are all documented for robust system-level design.

Key signal characteristics:

Input and output voltage thresholds are referenced to 1.5 V logic levels.

Detailed memory and peripheral timing diagrams support system integration with a variety of external devices.

Maximum bit rate for McBSP interfaces is 100 Mbps or CPU/2, depending on configuration.

PCI and EMIF interfaces support multiple voltage levels and have programmable timing to match external system characteristics.

Engineers must ensure correct configuration of external filters and clock sources for the PLL and observe recommended rise/fall times for all clock and reset signals to maintain stability and minimize timing errors.

Physical Design and Package Information of the TMS320C6205DZWT200

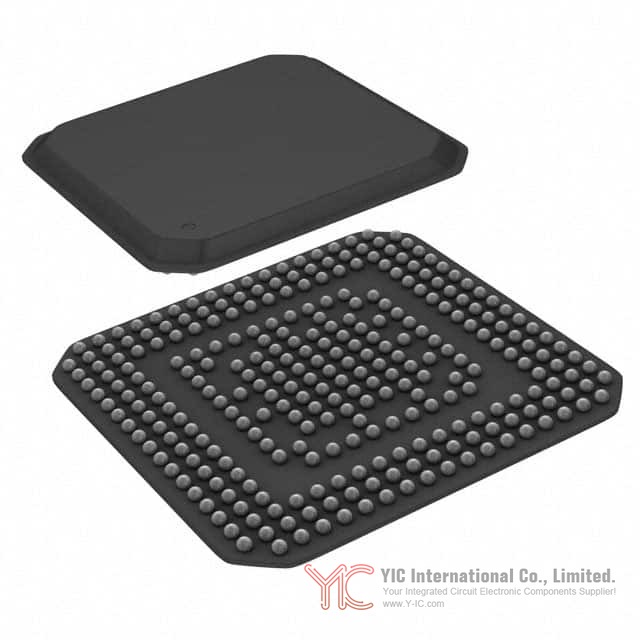

The device is available in a robust 288-ball plastic BGA package (ZHK and GHK suffixes), with a maximum package height of 1.4 mm and RoHS-compliant, lead-free solder balls (ZHK variant). Ball pitch is 0.8 mm, enabling high-density board layouts with reliable solderability. The package supports efficient heat dissipation, essential for sustained operation at peak throughput.

Thermal resistance data should be referenced when designing for high ambient or densely populated board environments. Mechanical outline drawings and stencil recommendations are provided for ensuring manufacturability and minimizing paste release variations in automated assembly.

Development Tools and Technical Assistance for TMS320C6205DZWT200

Texas Instruments delivers a mature development environment for the TMS320C6205DZWT200, supporting swift system prototyping and debug:

Software development is anchored by Code Composer Studio™ IDE, which provides integrated C/C++ and assembly toolchains, debugging, and profiling.

Extended hardware support includes XDS™ emulators and evaluation modules (EVM), with extensive example code, onboard peripherals, and compatibility with standard JTAG debug tools.

Real-time operating system and foundational libraries (DSP/BIOS) streamline multitasking and peripheral management.

An extensive library of documentation (reference guides, technical briefs, and application reports) and third-party add-ons accelerates algorithm integration and system bring-up.

Alternative and Substitute Products for TMS320C6205DZWT200

When considering alternatives to the TMS320C6205DZWT200, engineers should focus on devices within the Texas Instruments TMS320C62x family, which share architecture, peripherals, and development support. Potential equivalents include:

TMS320C6203: Features similar VelociTI™ VLIW architecture with variations in memory size, maximum clock frequency, and peripheral mix.

TMS320C6211 or TMS320C6202: Offer variations in operating speed, power envelope, and peripheral integration.

For applications requiring floating-point capability, the TMS320C67x family serves as a close architectural match with extended numeric support.

Device migration should be assessed with respect to required computational bandwidth, peripheral needs, system interface (such as PCI or EMIF), and package compatibility. For long-term availability or minimized redesign, favor models with active support and suitable lifecycle status.

Conclusion

The TMS320C6205DZWT200 fixed-point DSP stands out as a performance- and interface-rich processor targeted at demanding signal processing applications. Its advanced VLIW core, generous on-chip memory, comprehensive set of peripherals and interfaces, robust power management, and established development environment make it an optimal solution for engineers developing high-throughput, low-latency embedded systems. By understanding the full breadth of its architecture and ecosystem—as detailed in this guide—hardware and procurement engineers can make informed decisions when specifying DSPs for new or evolving product platforms.
