SN74V263-6GGM Synchronous FIFO Product Introduction

The SN74V263-6GGM from Texas Instruments is a high-speed, deep, CMOS-based synchronous FIFO (First-In, First-Out) memory device, designed to meet the stringent data buffering requirements across a range of high-throughput applications. This device supports up to 16K x 9 or 8K x 18 organizations, enabling a total storage capacity of 144 Kbits, and operates at clock frequencies up to 166 MHz. Provided in a compact 100-ball BGA or 80-pin TQFP, the SN74V263-6GGM is ideal for bus-matching and buffering solutions, making it a mainstay in network, video, telecommunications, and general data communications systems requiring efficient bridging and buffering of mismatched bus widths or clock domains.

Essential Attributes of SN74V263-6GGM

The SN74V263-6GGM distinguishes itself with a suite of features finely tuned for high-performance data handling:

Configurable memory organization: 8192 x 18 or 16384 x 9 selectable by control pins.

Up to 166 MHz operation with 4.5 ns access times.

User-selectable bus width on both input and output: ×9, ×18, and mixed-width operation.

3V CMOS core with 5V-tolerant inputs, supporting modern low-power designs and legacy interfaces.

Flexible endianness (bigor little-endian) and parity handling for system compatibility.

Short, fixed first-word latency and zero-latency retransmit option.

Rich flag suite: full, empty, half-full, and programmable almost-full/almost-empty flags with both synchronous or asynchronous behavior.

Depth and width scalability through easy cascading and paralleling.

Robust ESD and latch-up performance, compliant with modern reliability expectations.

Functional Block Diagram Explanation of SN74V263-6GGM

The SN74V263-6GGM integrates a dual-port RAM to enable seamless clock domain crossing between independent and asynchronous write and read clock domains. Its data input (Dn) and output (Qn) ports can independently sustain 9- or 18-bit wide operation, making the device suitable for systems requiring bus-width adaptation or word/byte conversion. Control logic orchestrates write cycles on a rising WCLK (write clock) edge when WEN (write enable) is active, while read cycles are triggered by RCLK (read clock) upon assertion of REN (read enable). OE (output enable) tri-states the output for system-level bus sharing.

A master reset (MRS) initializes the state machines, pointers, and critical configuration logic. Partial reset (PRS) provides the flexibility to reinitialize FIFO pointers in the midst of operation without altering user-programmed settings, a key advantage for robust, error-tolerant designs.

Bus Alignment and Endian Setting Options in SN74V263-6GGM

One of the SN74V263-6GGM’s vital strengths is its bus-matching capability, allowing seamless adaptation between differing input and output data widths. The input-width (IW) and output-width (OW) control pins, sampled during master reset, set the width combinations, supporting:

×9 in to ×9 out (typical byte-to-byte)

×9 in to ×18 out or ×18 in to ×9 out (byte-to-word/word-to-byte conversion)

×18 in to ×18 out (pure word-based transfer)

Endianness is also configurable: the big-endian/little-endian (BE) control samples at master reset, dictating whether the most-significant or least-significant byte/word is presented first on readout—a critical feature for interoperability with a variety of microprocessor and DSP data formats. Parity handling can be interspersed or non-interleaved, as required for advanced error-checking.

Status Indicator and Programmable Flag Features in SN74V263-6GGM

Comprehensive FIFO status feedback is provided through several flags:

Full (FF)/Input Ready (IR): Indicates memory full state or space for new writes (mode dependent).

Empty (EF)/Output Ready (OR): Indicates no valid data or valid data present at output (mode dependent).

Half-Full (HF): Signals when FIFO occupancy crosses the half-full threshold, aiding in flow control.

Programmable Almost-Full (PAF) and Almost-Empty (PAE): These user-definable flags allow the system to react to customizable thresholds close to the full or empty points, maximizing throughput and minimizing risk of data overflow or underflow.

Programming of PAF and PAE thresholds is supported via either serial or parallel methods, with the flag logic configurable for synchronous or asynchronous behavior, thus accommodating a wide range of architecture timing requirements.

Timing Configurations and FWFT vs. Traditional Mode in SN74V263-6GGM

The SN74V263-6GGM supports two principal operation modes, providing designers with flexibility to optimize for latency vs. explicit read control:

First-Word Fall-Through (FWFT) Mode: The first valid word written to an empty FIFO appears automatically at the output after three RCLK transitions, with no explicit REN required for the first read. Subsequent reads require assertion of REN. OR and IR signals provide output-ready and input-ready status, respectively.

Standard Mode: All reads—first and subsequent—require REN low with a rising edge of RCLK. EF and FF signals indicate FIFO empty or full status.

This dual-mode support enables system architects to optimize interface protocols for either minimal latency or explicit transaction control.

Resetting and Data Retransmission Methods for SN74V263-6GGM

Two levels of reset functionality are provided:

Master Reset (MRS): Completely initializes the FIFO, programming configuration (bus widths, timing modes, endianness, parity, flag programming mode) and clears contents and pointers.

Partial Reset (PRS): Resets pointers without modifying configuration or flag offset programming, especially useful for application-layer error recovery without a full reinitialization.

Retransmit capability allows the entire contents of the FIFO to be read multiple times, with selectable zero-latency or normal-latency behavior, an advantage in applications requiring repeated streaming of buffered data without refilling the FIFO.

Width and Depth Scalability Options Using SN74V263-6GGM

Designers often face requirements for wider or deeper FIFOs than available in a single device. The SN74V263-6GGM supports:

Width Expansion: By parallelizing multiple devices and combining their control signals, the system can create extremely wide data paths (e.g., two devices for 36-bit width at ×18 configuration).

Depth Expansion: In FWFT mode, devices can be cascaded in series to enlarge buffer depth without external logic, as the FWFT handshaking automates data passing and flag signal progression down the chain. Timing considerations are provided for understanding data ripple and latency in long FIFO chains.

Programming and Accessing Flag Offset Registers within SN74V263-6GGM

The programmable almost-empty (PAE) and almost-full (PAF) flag thresholds can be set either during or after master reset via parallel or serial programming mechanisms. Parallel programming utilizes the Dn input bus and the LD and WEN control signals, while serial programming uses the SI pin and WCLK. Reading of the programmable offset registers is always permitted in parallel mode, ensuring visibility into flag configurations for diagnostics or dynamic reconfiguration. Timing diagrams clarify the number of read/write operations required based on the bus width and device type.

Electrical Specifications and Packaging Details for SN74V263-6GGM

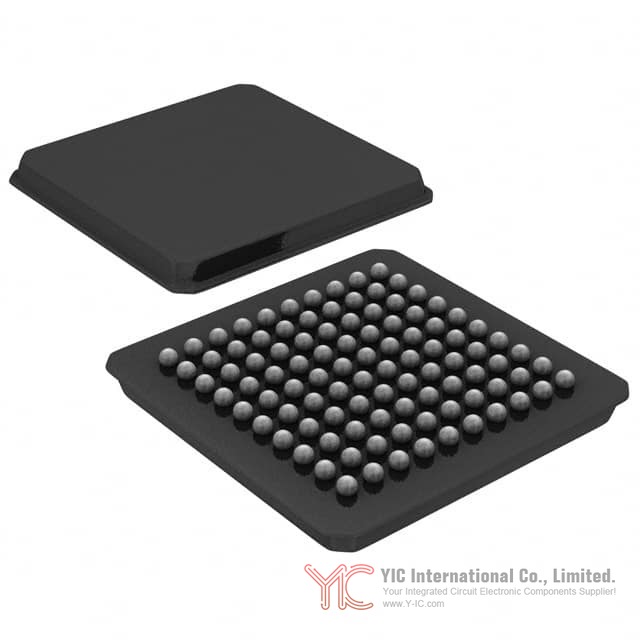

The SN74V263-6GGM operates from a 3.3V ±0.15V supply and is fully compliant with CMOS voltage levels, while its inputs are 5V tolerant. It is available in 100-BGA (Ball Grid Array) and 80-TQFP (Thin Quad Flat Pack) packages, offering options for high-density PCB design or lower-cost leaded mounting. With maximum clock ratings up to 166 MHz and access times of 4.5 ns, this FIFO is tailored for demanding high-speed applications. Operating temperature and ESD/latch-up ratings meet or exceed industrial standards. RoHS and "Green" versions are available for designs requiring environmentally friendly materials.

Alternative or Substitute Products Comparable to SN74V263-6GGM

Within the Texas Instruments FIFO family, several options mirror the SN74V263-6GGM architecture, differing primarily in depth:

SN74V273: 16384 x 18 / 32768 x 9 for applications requiring double the SN74V263's depth.

SN74V283: 32768 x 18 / 65536 x 9 for even higher capacity.

SN74V293: 65536 x 18 / 131072 x 9 for maximum buffer depth within this product line.

For enhanced reliability or extended environmental requirements, Enhanced Product versions (SN74V263-EP, SN74V283-EP, SN74V293-EP) are available. Selection between these devices should be based on required word depth, environmental rating, and package/cost constraints. Engineers should compare the timing, control pinout, and configuration register compatibility to ensure a drop-in replacement in legacy designs.

Conclusion

The SN74V263-6GGM stands out in the Texas Instruments FIFO product range as a flexible, high-speed, and scalable solution for buffering and bus-matching in modern digital systems. Its configurability, programmable status feedback, integration with both legacy and advanced designs, and robust package/power options ensure that it remains a preferred choice for engineers involved in network, communications, and embedded design. Those specifying buffering resources for new or evolving platforms should consider the SN74V263-6GGM and its family derivatives as foundational tools in the pursuit of reliable, high-throughput system architectures.
