Texas Instruments MSP430F6638IZCAT

MSP430F6638IZCAT Microcontroller General Introduction

For engineers searching for a high-performance, ultra-low-power 16-bit microcontroller, the Texas Instruments MSP430F6638IZCAT offers a compelling set of features for battery-powered or energy-sensitive embedded designs. Based on the MSP430 CPUXV2 architecture, the MSP430F6638IZCAT combines robust analog and digital peripherals, configurable clocking, and versatile communication interfaces in a compact 113-ball NFBGA package (7x7mm). With 256KB of embedded flash, integrated USB 2.0, LCD controller, and rich analog functions, the device is tailored for complex applications such as portable instrumentation, metering, sensor systems, and remote controls.

Core Architecture and Main Characteristics of the MSP430F6638IZCAT

At its heart, the MSP430F6638IZCAT features a 16-bit RISC CPU operating up to 20MHz with single-cycle register operations and advanced addressing modes. This core architecture enables fast context switching and high code density, vital for energy-critical tasks and real-time control. The device implements up to 74 I/O pins (in its largest configuration) and provides four 16-bit timers (one Timer_B and three Timer_A), enhancing its suitability for motor control, measurement, and timing applications.

A key hardware feature is the sophisticated analog integration: a 12-bit SAR ADC (with autoscan capability), dual 12-bit DACs (with synchronizable outputs), and a high-precision analog voltage comparator. The inclusion of a hardware multiplier supporting 32-bit operations accelerates complex math, particularly in sensor and signal-processing contexts.

MSP430F6638IZCAT Energy Management and Working Modes

A cornerstone of the MSP430 family is ultra-low-power consumption, and the MSP430F6638IZCAT delivers on this with a rich set of power management features. The device supports five primary low-power modes (LPM0-4), as well as deep shutdown options (LPM3.5, LPM4.5) enabling battery backup retention of the RTC and selective RAM. Engineers can optimize active current (as low as 270μA/MHz at 8MHz, 3V) and reduce standby/shutdown currents to the sub-microampere range (for instance, 1.1μA in RTC mode, 0.3μA in deep shutdown at 3V).

The integrated voltage regulator (LDO), supply voltage supervisor, and programmable brownout detection ensure operation across a 1.8V-3.6V supply range, critical in battery-powered designs facing variable line conditions. Fast wake-up times (3μs typical from standby) allow prompt response to external events, maintaining system reactivity without penalty to energy budget.

Built-in Peripheral Components of MSP430F6638IZCAT

MSP430F6638IZCAT excels in peripheral richness. Communication interfaces include two USCI modules supporting UART (with automatic baud detection), IrDA, SPI, and I²C protocols. Integrated USB 2.0 Full-Speed (including PHY, PLL, and power management) enables direct connection to PCs and other USB hosts. The device’s LCD_B controller can directly drive up to 160 segments with contrast control and advanced blinking features, ideal for portable meters or industrial displays.

Analog and digital integration is equally strong. The 12-bit ADC offers multiple channel inputs, flexible reference selections, and autoscan; dual 12-bit DACs support waveform generation and analog control. Complementary modules include six-channel DMA (to offload CPU in data transfers), an RTC with alarm and backup switching, Watchdog and CRC16 modules, plus system-level functions such as JTAG/Spy-Bi-Wire debugging and a robust onboard bootloader interface.

MSP430F6638IZCAT Timing System, Clock, and Power Input

The MSP430F6638IZCAT employs a unified clock system with multiple oscillators: low-frequency (VLO, REFO, and 32kHz XT1 crystals) and high-frequency (XT2 crystal up to 32MHz), controlled via a frequency-locked loop (FLL) and digital modulator for precise stabilization. This flexibility is essential for engineers designing for both low-speed measurement and high-speed communication tasks.

Careful attention to clock source selection and layout is advised (especially for crystal oscillators) to minimize EMI and ensure reliable startup—Texas Instruments provides detailed PCB, capacitor, and oscillator configuration guidelines to promote robust long-term operation.

MSP430F6638IZCAT Memory Organization and Code Upload Methods

The microcontroller’s memory organization supports demanding embedded applications: 256KB flash (with segmented main and information areas), 16KB RAM (plus additional SRAM when USB is unused), and eight bytes of battery-retained backup RAM. Flash can be programmed via JTAG, Spy-Bi-Wire, or bootloader (BSL) using either USB or UART. Segmentation allows efficient code/data partitioning and safe concurrent updates. The flexible bootloader with programmable password access streamlines firmware upgrades during development or in the field.

MSP430F6638IZCAT Package Details and Pin Layout

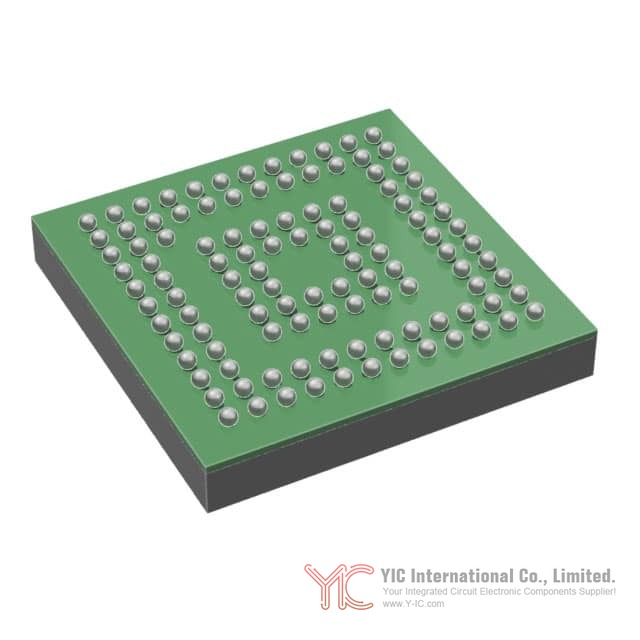

The MSP430F6638IZCAT comes in a space-saving 113-ball NFBGA package (ZCA, 7x7mm, 1mm height), suitable for compact PCB layouts in portable and handheld applications. The datasheet provides explicit pinouts, signal descriptions, and design notes—including Schmitt-triggered digital I/Os, analog-dedicated ports, and crystal layouts. Multiple package options are available within the device family, offering engineers flexibility in performance, I/O count, and footprint.

MSP430F6638IZCAT Supported Development Environments and Software

Texas Instruments delivers a robust ecosystem for rapid prototyping and evaluation. The MSP430F6638IZCAT is fully supported by the Code Composer Studio IDE and MSP430Ware, featuring a comprehensive library of API functions, code examples, and middleware. Hardware development boards—such as the MSP-TS430PZ100USB and MSP-FET—facilitate system bring-up and in-circuit programming/debugging. Additional tools such as MSP Flasher, EnergyTrace, and ULP Advisor assist in optimizing performance and energy efficiency, while safety and math libraries support compliance with standards and advanced algorithm deployment.

Alternative or Substitute Models to MSP430F6638IZCAT

Depending on application requirements, engineers may consider other members of the MSP430F663x family, which share a common architecture and peripheral set but differ in memory size, I/O count, and package. Notable alternatives include:

MSP430F6637IZCAT: 192KB flash, 16KB RAM

MSP430F6636IZCAT: 128KB flash, 8KB RAM

MSP430F6635IZCAT: 96KB flash, 8KB RAM

MSP430F6634, MSP430F6633, MSP430F6632, MSP430F6631, MSP430F6630: providing further granularity in memory and feature set

Selection criteria should be based on total I/O requirements, necessary flash/RAM for application code, analog features, and available package type. When migrating designs or evaluating for long-term supply, carefully review device availability and lifecycle status via the manufacturer’s product pages.

Conclusion

The MSP430F6638IZCAT exemplifies Texas Instruments’ high-integration, ultra-low-power microcontroller strategy, combining a performance-centric 16-bit RISC core, robust analog and digital peripherals, and extensive power management features. Its broad suite of interfaces, advanced clocking, memory flexibility, and strong development tool support make it a strong candidate for product selection engineers and procurement teams tackling modern embedded designs where size, power, and analog integration are key success factors. For engineers seeking to future-proof their applications, examining the entire MSP430F663x family ensures tailored fit and design resilience in both new and evolving projects.
