Lattice Semiconductor Corporation LC4256V-5TN176I

Product Introduction Lattice LC4256V-5TN176I CPLD

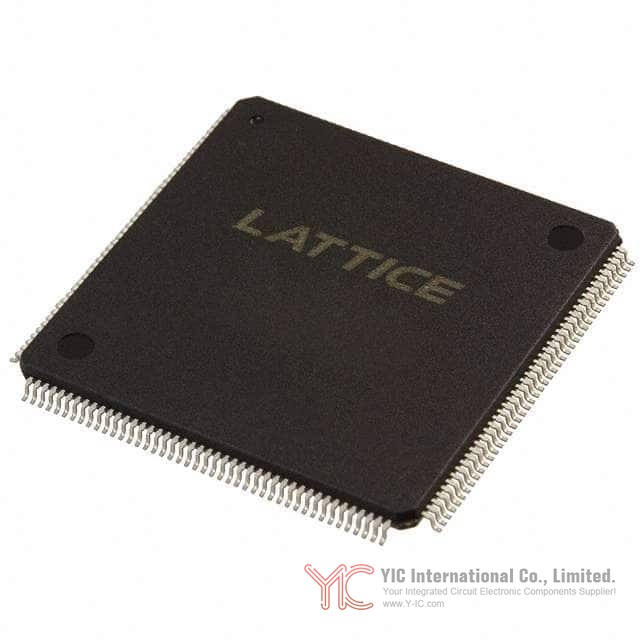

The LC4256V-5TN176I by Lattice Semiconductor is an in-system programmable Complex Programmable Logic Device (CPLD) in the well-established ispMACH 4000V series. Implemented in a 176-pin TQFP package, the device integrates 256 macrocells and boasts a speed grade of 5ns. The LC4256V-5TN176I stands out for high performance, broad voltage support, and advanced features targeting power-sensitive and timing-critical applications. Its comprehensive mix of features positions it as a versatile logic solution suitable for a broad range of industrial, communications, and consumer electronics.

Highlighted Features of LC4256V-5TN176I and ispMACH 4000V Series

As a member of the ispMACH 4000V family, the LC4256V-5TN176I delivers core strengths shaped by Lattice’s distinctive programmable logic architectures:

Maximum operating frequency up to 400 MHz and propagation delay of 2.5ns, suitable for high-speed digital systems.

In-system programmability compliant with IEEE 1532 and full boundary scan (IEEE 1149.1).

Support for multiple supply and I/O voltage standards: 3.3V, 2.5V, and 1.8V LVCMOS.

5V tolerant inputs (for banks at 3.3V), PCI compatibility, and hot-socketing.

Typical static current draw of 1.3mA for low-power operation.

Enhanced macrocells with independent clock, reset, preset, and clock enable control.

Flexible global and local output enable control and programmable output slew rate selection.

Wide device offering with multiple package options and temperature grades, with the LC4256V-5TN176I tailored for industrial environments (–40°C to +105°C).

These capabilities align the LC4256V-5TN176I for both performance-focused and power-conscious system designs, providing robust support for next-generation applications.

LC4256V-5TN176I Architecture and Internal Structure

The LC4256V-5TN176I is built around the advanced ispMACH 4000 architecture, which provides a balanced blend of high speed, low power, and flexible routing resources. The device comprises multiple 36-input, 16-macrocell Generic Logic Blocks (GLBs) interconnected by a high-efficiency Global Routing Pool (GRP) and Output Routing Pools (ORPs).

Each GLB combines:

A 36-input programmable AND array feeding an enhanced logic allocator.

16 macrocells capable of combinatorial or registered outputs, each supporting individual clock, reset/preset, and enable control.

Advanced allocation circuitry enabling fast 5-product-term paths, speed locking, and wide product-term chains (up to 80 product terms).

Clock multiplexers supporting selection from four block clocks, local product-term clocks, or a dedicated shared clock.

Programmable macrocell-specific set/reset logic with guaranteed power-up states.

GLBs interconnected through the GRP, ensuring predictable, consistent delays for all signals across the device.

The architecture includes dual I/O banks with independent power supplies, supporting multiple voltage domains and facilitating mixed-voltage interface applications. The Output Routing Pool enables flexible pin-mapping and supports fast output paths, critical for high-speed designs.

Power Consumption, Package Options, and Environmental Specs of LC4256V-5TN176I

Low power consumption is a defining trait of the ispMACH 4000V family. The LC4256V-5TN176I achieves static currents as low as 1.3mA, supporting system power budgets in energy-sensitive applications. The device operates reliably across a broad supply voltage range, with hot-socketing support ensuring safe insertion/removal in live systems.

Packaged in an industry-standard 176-pin TQFP, the LC4256V-5TN176I offers a compact form factor and is available in lead-free variants, aligned with modern environmental and RoHS requirements. Its industrial temperature grade (–40°C to +105°C) addresses extended-range applications and robust, long-life designs.

LC4256V-5TN176I Input/Output, Interface Compatibility, and System Integration

The LC4256V-5TN176I maximizes versatility through rich interface and I/O features:

Supports LVCMOS (1.8V, 2.5V, 3.3V), LVTTL, and PCI signaling standards.

5V-tolerant inputs for compatibility with legacy systems and PCI slots (when supplied at 3.3V).

Per-pin selectable pull-up, pull-down, or bus-keeper options for flexible board-level interfacing.

Programmable output slew rate to tune signal integrity, minimize noise on long traces, or maximize speed for short, well-terminated lines.

Individually programmable open-drain outputs and fast input paths for timing-critical signals.

Dual I/O banks enable different I/O standards to coexist.

Pinout retention and density migration features, supporting future-proof platform upgrades without board redesign.

System integration is further simplified by built-in IEEE standard boundary scan test support and full compliance with in-system programming flows.

In-System Programming Methods, Security Functions, and Board Testing for LC4256V-5TN176I

The LC4256V-5TN176I’s in-system programming (ISP) capability, standardized on IEEE 1532, streamlines production and board-level updates. ISP reduces manufacturing costs and accelerates prototyping, while enabling field reprogramming for product lifecycle flexibility.

Security features include a user-programmable security bit, which blocks unauthorized readback of configuration, safeguarding intellectual property. The User Electronic Signature (UES) function allows embedding of unique IDs or revision codes within each device for traceability and automated inventory management.

IEEE 1149.1-compliant boundary scan enables robust board testability, supporting interconnect checks, system debugging, and high-quality manufacturing test coverage with minimal test fixture overhead.

Performance Metrics and Timing Requirements of LC4256V-5TN176I

Performance is a highlight, with the LC4256V-5TN176I supporting up to 400MHz clockings and propagation delays down to 2.5ns. The combination of fast bypass paths, speed-locked routing, and wide product term capabilities enables a range of timing-critical logic implementations, from state machines to address decoders.

Timing models are straightforward and well-documented, facilitating accurate timing closure with standard Lattice design tools. Engineers can leverage extensive timing and power estimation resources provided in the ispMACH 4000 family technical documentation to optimize designs for application-specific requirements.

Design Adaptability and Upgrade Paths for LC4256V-5TN176I

To support evolving product designs, the LC4256V-5TN176I offers seamless density migration—lower or higher macrocell counts in the same package can utilize near-identical pinouts. This feature preserves board layout investments and accelerates time-to-market for product variants or upgrades.

Design flexibility is reinforced by programmable I/O standards, user-defined pull options, and macrocell-level configuration. This allows the LC4256V-5TN176I to serve in roles from simple bus interface and glue logic to complex state control and data path manipulation, supporting platforms ranging from industrial controllers to advanced consumer electronics.

Alternative or Substitute Models for LC4256V-5TN176I

When considering second sources or drop-in replacements, it is important to review both Lattice and other suppliers’ CPLD offerings:

Other devices in the Lattice ispMACH 4000V family with similar macrocell counts and package/voltage options (e.g., LC4256V in other TQFP packages or extended temperature grades).

Lattice ispMACH 4000B (2.5V) or 4000C (1.8V) devices for low core voltage operation, if the system voltage environment changes.

For zero-power applications, the ispMACH 4000Z series may be suitable, but attention must be paid to the specific I/O requirements and available package options.

Comparable devices from other programmable logic manufacturers (depending on design tool compatibility and footprint availability).

Engineers should ensure that equivalent parts meet system voltage, performance, and pin compatibility requirements and that migration between family members is supported by Lattice’s published guidelines.

Conclusion

The Lattice LC4256V-5TN176I CPLD combines speed, flexible system integration, comprehensive interface support, and robust in-system programming into a single, industrial-grade device. Its thoughtful architecture, low-power design, and extended temperature range make it a compelling choice for applications requiring high performance, reliability, and ready migration paths. By offering high I/O configurability, security features, and a widely supported development ecosystem, the LC4256V-5TN176I stands as an exemplary solution for engineers and procurement professionals aiming to future-proof their programmable logic platform.
