LT3507AEFE#PBF Quad Buck/Linear Regulator Overview by Analog Devices

The LT3507AEFE#PBF, developed by Analog Devices, is a versatile power management integrated circuit (PMIC) combining three high-efficiency step-down (buck) regulators and a low dropout (LDO) linear regulator within a single 38-lead TSSOP package. Targeted at engineers and procurement specialists requiring compact, multiple-output, high-density power regulation, the LT3507AEFE#PBF operates over a wide 4V to 36V input range. The device delivers up to 2.7A from channel 1 and 1.8A from each of channels 2 and 3, with the integrated LDO supporting flexible, low-noise output for auxiliary rails. This level of integration facilitates supply solutions in applications where board space, component count, and sequence control are critical design priorities.

Functional Design and System Integration of LT3507AEFE#PBF

The LT3507AEFE#PBF employs a monolithic architecture, integrating three independent current-mode DC/DC buck regulators and a precision LDO linear regulator. Each buck converter channel features an internal switching element, independent shutdown capability (via RUN pins), dedicated tracking/soft-start (TRK/SS) controls, and separate compensation pins (VC). The three bucks operate from a common oscillator, with phasing architecture ensuring antiphase switching between channel 1 and channels 2/3. This unique synchronization significantly reduces input ripple current, minimizing electromagnetic interference and extending input capacitor life in dense power delivery systems.

A single resistor connected to the RT/SYNC pin sets the global switching frequency (250kHz to 2.5MHz), which can also be synchronized to an external clock—enabling design flexibility for noise-sensitive projects or EMI compliance. The LDO channel, equipped with an external drive transistor option via the DRIVE pin, provides a tightly regulated rail that can closely track other outputs, an advantage for analog, RF, or DSP bias applications.

The sequential power-up and reliable operation of downstream microcontrollers or digital processors are streamlined by channel-specific power good (PGOOD) indicators, which signal when each rail is within its regulation window.

Main Electrical Properties and Switching Capabilities of LT3507AEFE#PBF

The LT3507AEFE#PBF’s power channels demonstrate robust electrical performance:

Input voltage operation from 4V (guaranteed undervoltage lockout at 3.8V) up to 36V max.

Output current: 2.7A (channel 1), 1.8A (channels 2 and 3), with buck regulators featuring internal switch current limits (up to 4A typical), ensuring resilience against transient faults.

Programmable switching frequency with typical operation at 900kHz–1.1MHz, balancing efficiency and transient response requirements while supporting small-form-factor inductors and ceramic output capacitors.

Low output ripple and noise, fostered by high-frequency operation and antiphase design, suit high-performance digital and mixed-signal circuits.

Efficient light-load operation and fast transient response, aided by current-mode control and accurate reference voltage (0.8V ±1.5%).

Foldback protection, comprehensive overvoltage/undervoltage lockouts, and thermal shutdown safeguard each output and the system against overload scenarios and external faults.

Enhanced Sequencing, Monitoring, and Protection Functions in LT3507AEFE#PBF

Supply sequencing and system monitoring are simplified in the LT3507AEFE#PBF through several advanced features:

Independent RUN controls for all output channels allow for programmable startup and shutdown sequences.

TRK/SS pins enable tracking of supply voltages or soft-start control, essential for reliable power-up in FPGAs, ASICs, or analog sub-blocks with strict rated start-up conditions.

Dedicated PGOOD outputs per channel report correct output voltage regulation, facilitating supply supervision and sequence acknowledgment for processor-based systems.

User-adjustable undervoltage and overvoltage lockouts (UVLO/OVLO) for customizable protection thresholds, increasing design flexibility under varying input supply scenarios.

On-chip thermal shutdown and frequency foldback responses ensure robust protection against persistent short-circuit, overload, or thermal runaway conditions.

These functions collectively support high-reliability systems requiring complex power-up/down logic, system health monitoring, and fail-safe operation.

Packaging, Heat Dissipation, and PCB Design Considerations for LT3507AEFE#PBF

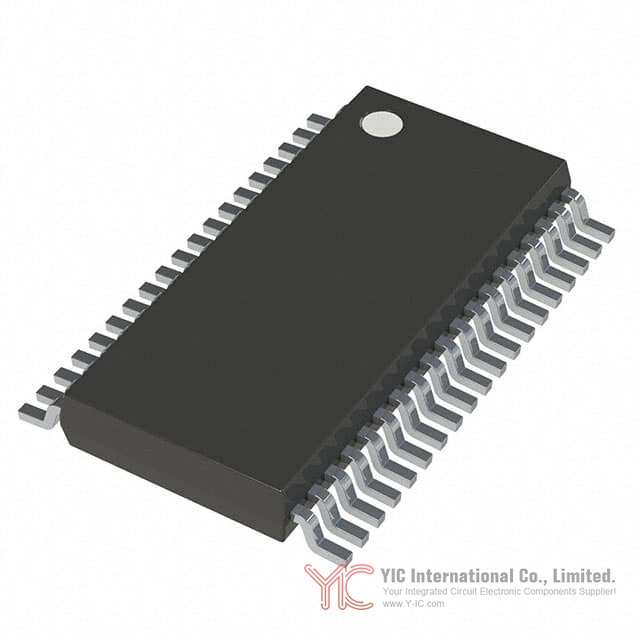

Offered in a thermally enhanced 38-lead TSSOP-EP (Exposed Pad) package, the LT3507AEFE#PBF is optimized for reliable surface-mount assembly and effective heat dissipation. The exposed pad must be soldered directly to the PCB ground plane to maximize heat transfer and achieve the specified operating temperature range (–40°C to 125°C).

The packaging supports high current delivery in compact layouts, and the pinout facilitates straightforward routing for channel grouping, noise isolation, and local decoupling. Inductor/capacitor sizing is simplified by reference frequencies documented in the datasheet. With an MSL rating of 1 (unlimited floor life under standard conditions) and full RoHS/REACH compliance, the package is suitable for automated assembly and global shipping requirements.

Application Use Cases Ideal for LT3507AEFE#PBF

The LT3507AEFE#PBF is ideal for automotive, industrial, and advanced distributed power systems that demand multiple, tightly regulated voltage rails from a single IC. Its wide input tolerance and robust current capacity make it suitable for systems powered by 12V/24V rails or industrial DC sources. Real-world example applications include:

Automotive infotainment or telematics control units that consolidate logic core, analog, I/O, and peripheral voltage rails.

Industrial programmable logic controllers and sensor hubs requiring staged power sequencing for microprocessors, memory, and interface circuits.

DSP power supplies in instrumentation or data acquisition platforms, where low noise and precise sequencing are mandatory.

The device’s flexible tracking and monitoring features are well-suited for FPGA-based systems that require strict rail sequencing to prevent device latch-up, and for mixed analog/digital platforms where supply integrity must be continuously monitored.

Alternative or Substitute Models for Analog Devices LT3507AEFE#PBF

While the LT3507AEFE#PBF provides a unique combination of density, sequencing, and rail options, alternative solutions may be required for applications needing different current or voltage configurations, package profiles, or vendor preferences. Engineers might consider:

Analog Devices LT3507: A close relative with similar functionality but lower output current capacity on some rails.

Texas Instruments TPS65261: A triple synchronous buck regulator with independent enable and PGOOD signals, suitable for similar multi-rail embedded systems.

Maxim Integrated MAX20069: Offers multiple buck outputs and LDO but optimized for automotive systems with extensive protection features.

Renesas ISL95010: Triple buck with advanced sequencing but designed primarily for notebook and mobile platforms.

Model selection should be based on required output configuration, frequency range, thermal design, and compliance with application-specific features such as tracking, monitoring, and protection capabilities.

Conclusion

: Selecting the LT3507AEFE#PBF for High-Integration Power Supply Design

For engineers and procurement personnel seeking to rationalize their multi-rail power supply designs, the LT3507AEFE#PBF presents a compelling PMIC solution by fusing performance, protection, and ease of layout within one package. Its integration of DC/DC and linear regulation, flexible sequencing, and robust system-level diagnostics cater to the most demanding applications in automotive, industrial, and embedded spaces. When considering system upgrades or design cycles, the LT3507AEFE#PBF stands out as a future-proof cornerstone for efficient and reliable power management.
