BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Product Summary

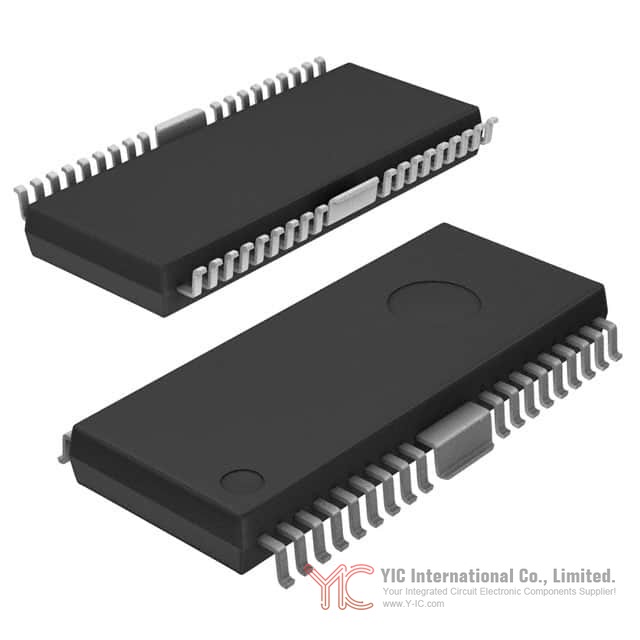

The BA5956FM-E2, manufactured by ROHM Semiconductor, is a versatile half bridge driver integrated circuit specifically engineered for applications requiring robust and flexible motor control, notably in CD, DVD, MD, and automotive CD player systems. Housed in a compact 36-HSOP-M package, the BA5956FM-E2 forms part of ROHM’s family of system motor driver ICs, combining multiple motor control channels into a single chip. This integration significantly reduces footprint and component count, facilitating sleeker designs in data storage and consumer electronics. With its bipolar architecture and support for up to five channels—four dedicated to playback and one for loading functions—the BA5956FM-E2 is optimized for high-reliability and space-critical designs.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Functional Design

At its core, the BA5956FM-E2 implements a half bridge driver topology with current feedback, enabling precise motor control across a range of operational conditions. The internal block diagram reveals a practical organization of driver stages, each with configurable input and output polarities. The IC supports multiple operation modes via its bias and mute terminals: a voltage under 0.7V at the bias terminal enables mute, while voltages above 1.3V switch the output to active mode. A dedicated mute circuit responds to supply voltage drops, further safeguarding system performance.

The BA5956FM-E2 features integrated supply voltage descent mute circuitry and a thermal shutdown circuit. When the chip temperature reaches 175°C (typical), output current is muted to prevent runaway thermal behavior. Driver circuit activation resumes once the chip temperature drops to 150°C (typical). This architecture is not intended as an absolute protection mechanism, but rather as a last-resort safeguard—critical design engineers should not rely solely on this circuit for thermal management.

The driver’s transconductance (the ratio of output current to input voltage) is determined by the sum of the internal output resistance and wire resistance, calculated as:

\[ g_{m} = \frac{1}{R_{d}+R_{WIRE}} (A/V) \]

where typical wire resistance (RWIRE) is 0.15Ω ± 0.05Ω, using gold wire bonding for enhanced reliability.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Main Electrical Specifications

Under normal conditions (Ta=25°C, PreVcc=PowVcc3=12V, PowVcc1=PowVcc2=5V, BIAS=1.65V, RL=8Ω, Rd=0.5Ω, and C=100pF), the BA5956FM-E2 delivers stable and efficient motor drive performance. The IC is engineered for standard voltage environments, but is not designed for applications requiring resistance to radioactive radiation or ultra-high reliability sectors such as aerospace or medical safety.

Engineers should consult the absolute maximum ratings to prevent overstress situations—exceeding supply voltage, ambient temperature, or load ratings can cause irreparable damage. For supply voltages, ensure that all power rails and bias levels fall within the recommended operating ranges stated in the technical documentation.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Reference Data for Key Features

Performance evaluation data for the BA5956FM-E2 includes comprehensive supply fluctuation and load fluctuation I/O characteristic curves at critical temperatures: -35°C, 25°C, and 85°C. These data points, presented as reference values, offer insight into real-world device performance under both supply and load dynamic scenarios. For instance, supply fluctuation curves demonstrate the output stability under voltage variation stress, while load fluctuation curves highlight how loading conditions influence output current and voltage regulation.

System designers can use these datasets to estimate margin and tolerances in thermal and electrical design, particularly in high-cycle, mission-critical systems susceptible to voltage sag or environmental temperature extremes.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Guidelines for Application

Integration of the BA5956FM-E2 into engineering designs requires careful attention to the recommended operating conditions and appropriate layout practices. The device is highly suitable for motor control in audio-visual and automotive electronics, thanks to its multi-channel capability and compact package.

A key engineering scenario involves using bypass capacitors (typically 0.1μF) close to the power supply-GND pins to suppress back regenerated currents from counter electromotive force during motor braking. Designers should select capacitors with proven low-temperature performance, as leak capacitance in electrolytic types can affect operation during cold starts.

The GND terminal must always have the lowest potential in the system. Utilizing star grounding techniques for separate drive and control ground lines is highly recommended for minimizing voltage offsets and reducing susceptibility to noise.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Operational Tips and Engineering Advice

Engineers incorporating the BA5956FM-E2 should observe a series of best practices:

Protect the IC from reverse power connection—external polarity protection diodes are advised.

Avoid excessive capacitance between output and ground pins; values above 0.1μF can induce damaging currents during voltage drop events.

Implement precise thermal design to accommodate device power dissipation; always allow sufficient margin over estimated Pd.

Confirm appropriate application of mute and bias terminal voltages for correct driver enablement.

During mounting, avoid inter-pin shorts and ensure pins are only connected according to the IC’s pinout to prevent immediate damage.

When operating in strong electromagnetic fields, ensure adequate shielding, as the BA5956FM-E2 may be sensitive to interference.

Discharge all on-board capacitors before handling ICs, especially during assembly, inspection, and transport, to reduce risk of ESD.

Observe all recommendations regarding input pin voltages: do not apply negative voltages or exceed maximum Vcc.

Critical system reliability can be further enhanced by monitoring and responding to the thermal shutdown signal, and by integrating fuses or additional protection devices for supply or output overcurrent protection.

BA5956FM-E2 ROHM Semiconductor Half Bridge Driver Possible Alternative Models

ROHM Semiconductor offers several models in the same family as the BA5956FM-E2 that fulfill similar or parallel engineering needs. These include the BA5984FP, BA5814FM, and BA5968FP. Each variant is developed as a multi-channel driver suitable for data storage-type motor control, with variations in channel configuration, package type (e.g., HSOP-28, HSOP-M28), and feature sets.

The BA5984FP supplies four playback channels and one loading driver in an HSOP-28 package, ideal for designs requiring smaller footprints. For applications benefiting from additional regulator or loading driver logic, the BA5968FP and BA5814FM present suitable alternatives, with specialized control circuits and package flexibility.

When selecting a replacement or considering design expansion, engineers should appraise package dimensions, channel count, and specific logic/driver features to match system requirements.

Conclusion

The BA5956FM-E2 from ROHM Semiconductor stands out as an integrated half bridge driver for advanced motor control in data storage and consumer electronics. Its architecture, characterized by multi-channel capability and robust protection mechanisms, supports streamlined design and reliable performance in CD, DVD, and automotive audio systems. By adhering to best layout and operational practices, leveraging reference performance data, and considering compatible family models, procurement managers and product selection engineers can make informed decisions for their next motor drive project. For expanded documentation, model comparisons, and in-depth engineering consultation, direct engagement with ROHM Semiconductor is recommended.
