Renesas Electronics America Inc ISL83699IRZ-T

Mfr. Part

ISL83699IRZ-T

Manufacturer

Renesas Electronics Corporation

Y-IC is a quality distributor for Renesas. We supply genuine, traceable parts and back you with fast response, technical support, and dependable service.

Detailed Description

Quad SPDT analog switch (4 x 1:2) with very low on-resistance in a tiny 3 x 3 mm 16-QFN package with exposed pad. Operates from a single 1.65 V to 3.6 V supply. Delivers fast switching (Ton/Toff 17 ns/14 ns max), very low leakage (3 nA max), low charge injection (-82 pC), and excellent channel isolation and crosstalk (-98 dB at 100 kHz). Suited for precision signal routing over the full operating temperature range of -40°C to +85°C. RoHS3 compliant and supplied on tape and reel for high-volume SMT assembly.

Key Features

Function: 4 independent SPDT analog switches (4 x 1:2 mux/demux topology)

Supply voltage range: 1.65 V to 3.6 V (single supply)

On-state resistance: 450 mΩ max

Switching speed: Ton 17 ns max, Toff 14 ns max

Leakage current: 3 nA max (IS(off))

Charge injection: -82 pC

Channel capacitance (off): 106 pF (CS(off), CD(off))

Crosstalk: -98 dB at 100 kHz

Channel-to-channel ΔRon: 40 mΩ

Operating temperature: -40°C to +85°C (TA)

Package: 16-QFN (3 x 3 mm), exposed pad, surface mount

Compliance: RoHS3

Shipment format: Tape and Reel (TR)

Category: Interface ICs — Analog Switches, Multiplexers, Demultiplexers

Key Advantages

Low RON minimizes signal loss and distortion, improving SNR and linearity

Very low leakage and charge injection preserve accuracy in precision, high-impedance nodes

Fast switching enables high-speed multiplexing and quick settling

Excellent isolation and low crosstalk reduce interference between channels

Small 3 x 3 mm QFN with exposed pad saves board space and helps heat flow

Wide low-voltage supply range fits modern battery and 3.3 V systems

Quad SPDT integrates four channels to cut BOM count and routing complexity

Packaging

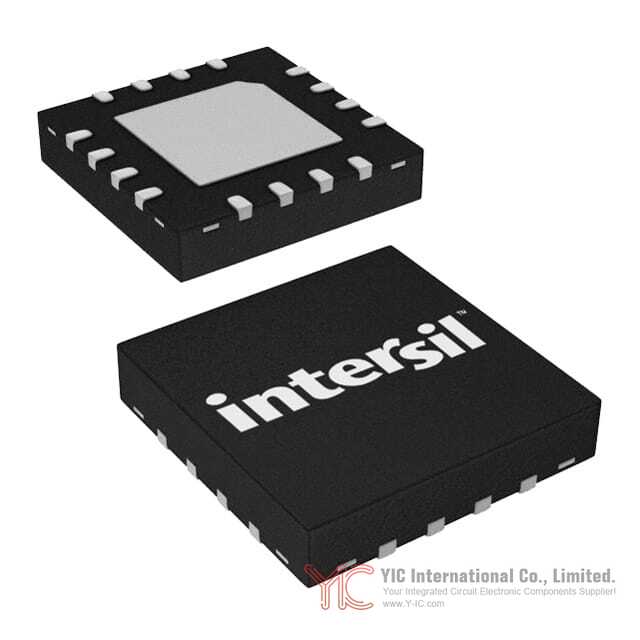

Type: 16-QFN (also referred to as 16-VFQFN) with exposed thermal pad

Body size: 3 x 3 mm nominal; low-profile height (see datasheet for exact dimensions)

Mounting: Surface Mount, tape-and-reel for automated placement

Materials: Copper leadframe, matte-tin plating, epoxy mold compound; fully RoHS3 compliant

Pin configuration: 16 pins total; four SPDT channels with COM/NO/NC per channel, logic control pins, V+ and GND; exposed pad for thermal and electrical ground connection (refer to datasheet for exact pin map)

Thermal characteristics: Exposed pad improves heat spreading into PCB; use soldered pad with thermal vias to ground plane; actual thermal resistance depends on board layout (see datasheet)

Electrical properties (high level): RON 450 mΩ max; Ton/Toff 17/14 ns max; leakage 3 nA max; charge injection -82 pC; off capacitance 106 pF; crosstalk -98 dB at 100 kHz; operates from 1.65–3.6 V supply

Lifecycle

Current status: No official NRND/EOL notice publicly indicated as of the last update. Availability can change; confirm with Y-IC for the latest status.

Form-fit option: ISL83699IRZ (same silicon family, different orderable suffix/packaging quantity)

Potential alternatives to evaluate (verify all specs, pinout, and timing before substitution):

- Texas Instruments TS3A24401 (Quad 1:2 analog switch, low-voltage, small QFN; higher RON)

- Texas Instruments TMUX1574 (Quad 1:2 analog switch, 1.08–5.5 V supply; higher RON)

- Analog Devices ADG884 or ADG774 family (dual SPDT devices; two devices can implement four channels; different pinout/packaging)

- Maxim Integrated/Analog Devices families such as MAX14757/MAX14759 (check function and RON)

If you need a drop-in or closer match, contact our sales team via the Y-IC website for personalized cross-references and availability.

Key Application Areas

Precision signal routing and multiplexing in data acquisition systems

Sensor selection and calibration paths

Portable and battery-powered equipment requiring low-voltage, low-loss switching

Audio and low-frequency analog signal paths with tight crosstalk requirements

Communications and test equipment needing fast, low-leakage channel switching

General-purpose analog mux/demux functions in embedded and industrial designs

Datasheet

Y-IC hosts the most authoritative and up-to-date datasheet for ISL83699IRZ-T. We recommend downloading it directly from this product page for complete electrical specs, pin map, mechanical drawings, and layout guidance.
