IXYS IXTH24N50L

Introduction to IXTH24N50L N-Channel Power MOSFET

The IXTH24N50L, manufactured by IXYS, is a high-performance N-channel power MOSFET designed for demanding high-voltage and high-current switching applications. Packaged in a TO-247 through-hole enclosure, this device is engineered to facilitate efficient power conversion and control in industrial, energy, and motor-driven systems. With a maximum drain-source voltage of 500 V and a continuous drain current rating of 24 A, the IXTH24N50L is suited for environments requiring robust voltage isolation, high reliability, and thermal efficiency.

Principal Electrical and Physical Characteristics of IXTH24N50L

The IXTH24N50L features an N-channel MOSFET structure capable of handling significant power levels. Notably, it supports a drain current of up to 24 A (when measured at case temperature), ensuring it is suitable for high-load scenarios. The device’s power dissipation capability stands at 400 W (at case temperature), reflecting strong thermal management under continuous heavy-duty operation. The TO-247 package offers low thermal resistance and ease of mounting—both critical for designs prioritizing power density and effective heatsinking. Such specifications enable engineers to confidently implement the IXTH24N50L where system robustness and efficiency are mission-critical.

IXTH24N50L Application Scenarios and Design Considerations

The IXTH24N50L is a preferred choice in engineering designs focused on high-voltage switching and energy control. Key use cases include switch-mode power supplies (SMPS), high-voltage DC-DC converters, industrial motor drives, and uninterruptible power supplies (UPS). Its 500 V rating provides a safety margin for circuits with voltage spikes or rapidly changing loads, while the 24 A current capacity meets typical requirements for medium- to high-power systems. Design engineers should note the device’s low on-resistance and high-frequency switching reliability, making it suitable for minimizing conduction and switching losses in precision power management systems.

IXTH24N50L Packaging Details, Safety Guidelines, and Environmental Specifications

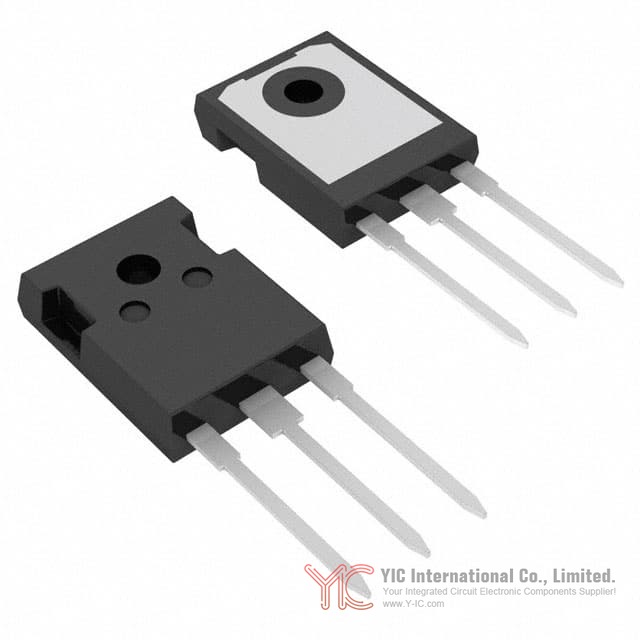

The mechanical design of the IXTH24N50L employs the industry-standard TO-247 through-hole package, facilitating straightforward PCB integration and accommodating robust thermal dissipation strategies, such as heatsinking. The component is rated at Moisture Sensitivity Level (MSL) 1, indicating unlimited shelf life under standard handling conditions—a significant consideration for production logistics and storage. These attributes simplify procurement and inventory management, while also ensuring device reliability throughout the supply chain and lifecycle.

Alternative or Substitute Options for IXTH24N50L

When considering design alternatives or second-sourcing for the IXTH24N50L, engineers should evaluate possible equivalent or replacement models with similar electrical and mechanical profiles. Critical parameters to match include drain-source voltage, drain current, package type, and power dissipation capability. While device selection should always be based on rigorous specification matching and system-level validation, established alternatives from other power semiconductor manufacturers with 500 V, 20–30 A, TO-247 N-channel MOSFETs may be suitable—pending domain-specific performance and qualification testing.

Conclusion

The IXTH24N50L N-channel power MOSFET from IXYS stands out as a strong candidate for high-voltage, high-current applications that demand technical robustness, packaging flexibility, and supply chain consistency. Its feature set supports designers and procurement professionals seeking reliability, electrical performance, and manufacturability in power electronics systems. By carefully integrating the IXTH24N50L in relevant applications, engineering teams can enhance operational efficiency and secure long-term supply continuity for mission-critical designs.
