Infineon Technologies IR3555MTRPBF

Introduction to the IR3555MTRPBF PowIRstage by Infineon Technologies

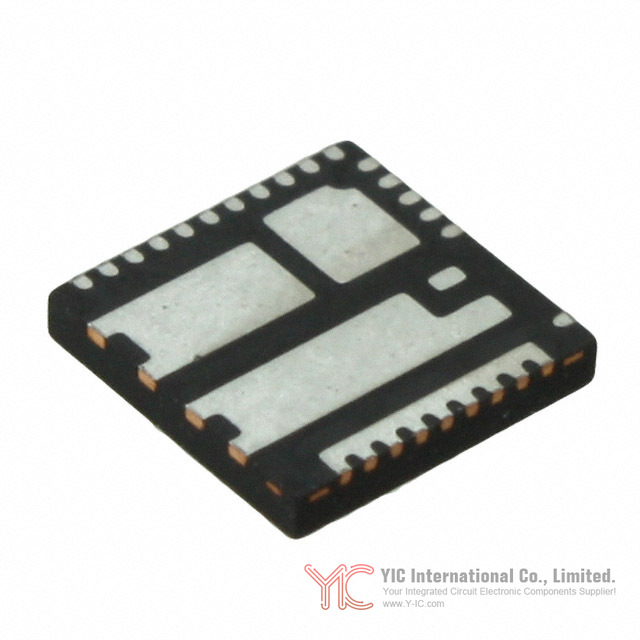

The IR3555MTRPBF PowIRstage by Infineon Technologies is a high-performance, integrated gate driver solution engineered primarily for synchronous buck converter and voltage regulator applications. Housed in a compact 30-PQFN (6x6mm) package, this device delivers robust 60A output current capability, making it suitable for demanding loads such as CPUs, GPUs, ASICs, and DDR memory arrays in server-grade and high-current computing systems. IR3555MTRPBF stands out by combining both the driver circuit and power MOSFETs within a single package, streamlining power stage design and enhancing overall system efficiency.

Principal characteristics and structural design of IR3555MTRPBF PowIRstage

Infineon's IR3555MTRPBF PowIRstage integrates control and synchronous MOSFETs, a gate driver, and a Schottky diode to optimize switching efficiency and minimize losses. The device features on-chip MOSFET current sensing with temperature compensation, supporting precise real-time current reporting and protection. Its architecture supports an input voltage (VIN) range of 4.5V to 15V, with supply rails (VCC, VDRV) spanning 4.5V to 7V. The driver-MOSFET pairing achieves excellent switch node performance, reducing signal ringing and fostering reliable high-frequency operation up to 1.0MHz. Features such as Body-Braking™ for load transient support and diode emulation mode are incorporated to further boost light-load efficiency and reduce output capacitance requirements.

Electrical specifications and heat management of IR3555MTRPBF PowIRstage

At its core, the IR3555MTRPBF PowIRstage offers a continuous output current rating of 60A, supporting output voltages from 0.25V up to 5.5V. The integrated design delivers very low Rds(on) values, minimizing power dissipation even under high load conditions. Thermal management is enhanced by a dual-sided cooling strategy and an optimized PQFN package, supporting efficient heat transfer and simplified PCB layout. The IR3555MTRPBF is rated for operation in environments with junction temperatures up to industry standards, equipped with an analog thermal reporting interface (8 mV/°C) as well as thermal flag outputs for system-level monitoring.

Safety features and diagnostic capabilities in IR3555MTRPBF PowIRstage

Robust fault protection and monitoring mechanisms are built into the IR3555MTRPBF PowIRstage to safeguard power systems. The device implements cycle-by-cycle overcurrent protection (OCP), over-temperature protection (OTP), preliminary overvoltage protection (Pre-OVP), and MOSFET phase fault detection. Status flag outputs and analog interfaces provide continuous reporting to the host controller, enabling automated self-preservation during abnormal events and supporting predictive maintenance strategies. Additionally, features such as under voltage lockout (UVLO) ensure safe startup and operation under varying supply conditions.

Advantages of integration and PCB layout advice for IR3555MTRPBF PowIRstage

Thanks to its highly integrated structure, IR3555MTRPBF PowIRstage simplifies PCB layout by minimizing external component count and leveraging the compact 6mm x 6mm package footprint. Optimal performance is achievable when standardized layout guidelines are followed, dramatically reducing switch node ringing and facilitating dual-sided cooling. These properties aid rapid system development and improve phase-to-phase consistency in multi-phase power topologies. The integration of digital PWM and zero-cross detection circuits offers designers the flexibility to implement advanced control schemes and maximize system efficiency, especially in digital-controlled power systems.

Typical uses and system integration for IR3555MTRPBF PowIRstage

The IR3555MTRPBF PowIRstage is tailored for high-frequency, high-current, and low-profile DC-DC conversion in server, data center, and high-performance computing environments. Its ability to precisely regulate core voltages for CPUs, GPUs, ASICs, and DDR memory arrays addresses the stringent requirements of modern digital infrastructure. The device is fully compatible with 3.3V tri-state PWM inputs and supports synchronous diode emulation modes, making it a versatile choice in designs leveraging advanced digital controllers from Infineon and other vendors.

Environmental standards and regulatory compliance of IR3555MTRPBF PowIRstage

In terms of regulatory conformance, the IR3555MTRPBF PowIRstage is provided in a lead-free, RoHS3-compliant package, satisfying global environmental and safety standards. The device boasts a Moisture Sensitivity Level (MSL) rating of 2, allowing for flexible reflow and assembly processes with a one-year floor life. Additionally, the IR3555MTRPBF is certified as REACH unaffected and classified under ECCN EAR99, streamlining export and logistical considerations for global procurement teams.

Alternative or comparable models to IR3555MTRPBF PowIRstage

Given the IR3555MTRPBF PowIRstage’s status as an obsolete device, engineers and purchasing professionals should evaluate alternative models within Infineon’s PowIRstage product family or compatible solutions from other established manufacturers. Key criteria include matching output current capability, package dimensions, integrated protection and monitoring features, as well as ensuring environmental and regulatory conformity. Careful cross-reference with system requirements and interface compatibility is recommended to maintain performance and reliability in replacement scenarios.

Conclusion

The IR3555MTRPBF PowIRstage from Infineon Technologies represents a benchmark in integrated gate driver and power MOSFET solutions, specifically designed for high-current synchronous buck converter applications. Its advanced feature set, robust protection architecture, and optimized thermal design make it an attractive choice for engineers seeking reliable and efficient voltage regulation in demanding server and computing platforms. Attention to integration benefits, application compatibility, and potential alternatives ensures that engineers and procurement professionals are equipped to make informed product selection decisions aligned with their system’s technical and regulatory requirements.
