Renesas Electronics America Inc IDT71V424L10Y

Product Summary

When selecting memory devices for embedded systems and other high-performance applications, engineers require solutions that assure speed, reliability, and ease of integration. The Renesas IDT71V424L10Y Static RAM is engineered to fulfill these demands, offering a robust blend of advanced CMOS technology, high-speed operation, and asynchronous design. This device provides 4 Mbit (organized as 512K x 8 bits) of parallel-access SRAM memory, making it an ideal choice for systems requiring fast data throughput with stable performance across commercial and industrial environments.

Main Functions of Renesas IDT71V424L10Y

The IDT71V424L10Y distinguishes itself with several important features that address key criteria in SRAM selection:

Advanced high-speed CMOS construction ensures rapid data access.

JEDEC center power and ground pinout design reduces system noise, enhancing overall integrity during operation.

Uniform access and cycle times (10 ns, 12 ns, and 15 ns speed grades available) optimize synchronization in timing-sensitive architectures.

Operates from a single 3.3V power supply, simplifying power distribution and design compatibility.

TTL-compatible bidirectional data lines facilitate seamless interfacing with common digital logic families.

Low power consumption is supported through chip deselect functions, allowing efficient operation and thermal management.

The device supports a comprehensive industrial temperature range (−40°C to +85°C), ensuring reliability in demanding environmental conditions.

Available in multiple package types (36-pin SOJ, 44-pin TSOP), the device adapts easily to varied PCB layouts and mechanical constraints.

Operational Structure of IDT71V424L10Y

Engineers often seek insight into device operation at the system level to ensure appropriate implementation. The IDT71V424L10Y's organization as 512K x 8 bits supports broad application use cases, from data buffering to program storage. The device employs fully static asynchronous circuitry, eliminating the need for refresh cycles or external clocks, which simplifies integration in real-time embedded platforms.

The presence of control pins such as Chip Select (CS), Output Enable (OE), and Write Enable (WE) offers flexible data access and precise control over bus activity. Notably, the output enable pin switching as fast as 5 ns allows rapid signal propagation, supporting high-throughput demands in digital acquisition or network switching applications. By adhering to standard TTL voltage levels, the SRAM simplifies interfacing, especially in designs with mixed-voltage domains or legacy components.

IDT71V424L10Y Electrical and Timing Specifications

Selecting an SRAM for high-speed applications requires careful consideration of its electrical parameters and timing profiles. The IDT71V424L10Y operates from a nominal supply voltage of 3.3V ±10%, and is characterized for both commercial and industrial temperature ranges. Maximum ratings must not be exceeded to avoid device degradation. Critical DC characteristics, such as input/output voltage ranges and input capacitance, are provided for precise power budget calculation and signal integrity analysis.

Timing diagrams for read and write cycles illustrate the device's performance in synchronous and asynchronous bus transactions. The fast address access time (minimum 10 ns) and output enable time (minimum 5 ns) indicate the suitability of the IDT71V424L10Y for latency-sensitive operations. Engineers should review the provided truth tables and waveform timings to verify compatibility with system timing constraints, ensuring stable operation during all read/write cycles.

IDT71V424L10Y Packaging Variants

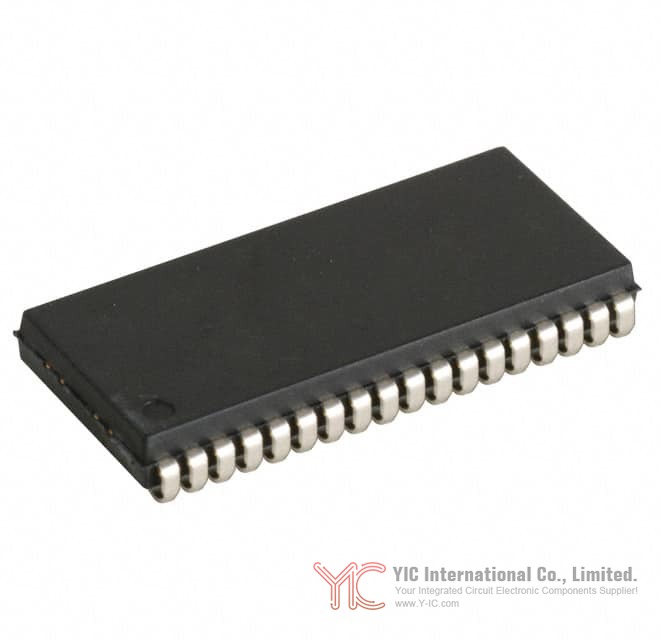

Mechanical compatibility can determine the success of a memory upgrade or redesign. The IDT71V424L10Y is available in industry-standard 36-pin, 400 mil SOJ and 44-pin, 400 mil TSOP packages. This flexibility facilitates straightforward drop-in replacements or new board designs. Pin configurations follow JEDEC standards, which further eases migration and supports rapid prototyping in custom and COTS platforms.

Suggested Operating Parameters for IDT71V424L10Y

Long-term reliability depends on maintaining operation within the manufacturer’s recommended parameters. The IDT71V424L10Y supports robust performance over a wide temperature range (−40°C to +85°C for industrial types), vital for harsh environment deployments in automation, networking, or defense electronics. For optimal behavior, stable supply voltages and proper signal levels must be ensured, particularly during fast switching cycles. Specific parameters, such as maximum allowable input voltages (VIL/VIH) for brief pulses, and rated current for different operational modes, should be validated during circuit simulation and PCB layout.

Alternative or Replacement Models for IDT71V424L10Y

For projects requiring alternative sourcing or qualification of comparable components, the following models from Renesas may serve as direct equivalents or replacements:

IDT71V424S: Shares similar organization, performance characteristics, and package options, evaluated for comparable commercial and industrial sectors.

IDT71V424L: Offers consistent operating voltages, bus widths, and timing profiles, ensuring compatibility in most use cases where the IDT71V424L10Y is specified.

When selecting alternatives, engineers should cross-reference not only electrical and timing specs, but also package pinouts and validation history in relevant applications. Substituting the memory device may necessitate minor PCB or firmware adjustments, particularly if migrating across package variants.

Conclusion

The Renesas IDT71V424L10Y provides a balanced solution for applications demanding high-speed, high-reliability SRAM memory. Its advanced CMOS architecture, extensive temperature range, versatile packaging, and fast, asynchronous operation make it well-suited for embedded, communications, and industrial systems. For product selection engineers and procurement personnel, the IDT71V424L10Y’s technical attributes and compatibility with equivalent devices offer a flexible foundation for both new designs and system upgrades. Careful attention to operating conditions and timing constraints will ensure robust, long-term deployment in mission-critical environments.
