NXP USA Inc. SPC5673KF0VMM1R

SPC5673KF0VMM1R Microcontroller General Introduction

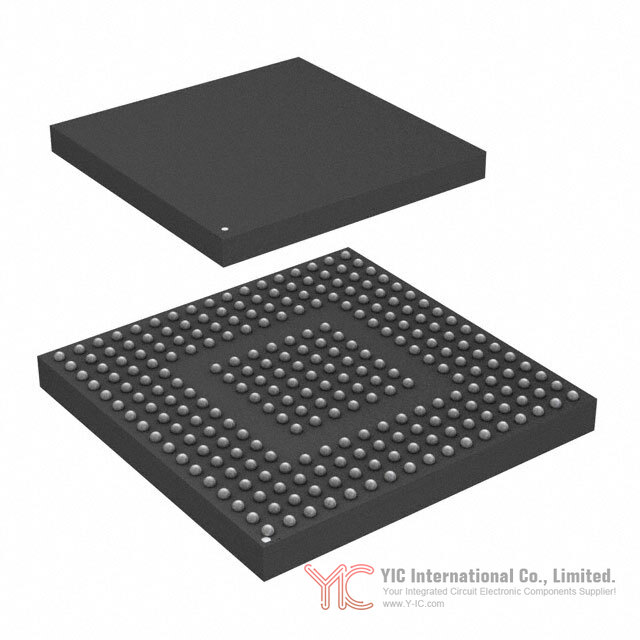

The NXP USA Inc. SPC5673KF0VMM1R is a high-performance, 32-bit automotive-grade microcontroller from the Qorivva MPC567xK family, engineered to address the demanding needs of modern safety and chassis control applications. Housed in a compact 257-LFBGA (14x14 mm) package, this device is built around the robust Power Architecture® core and features 1 MB of flash memory, making it well-suited for advanced driver assistance systems (ADAS), radar, lidar, and sensing applications. Its integration and automotive focus ensure high reliability, compliance with stringent functional safety standards, and efficiency for systems requiring ISO 26262 or ASIL-D safety levels.

SPC5673KF0VMM1R Processor Core Structure

At the heart of the SPC5673KF0VMM1R lies a dual e200z7 core, which operates at frequencies up to 180 MHz, providing ample processing power for safety-critical and real-time applications. The architecture supports both parallel and lock-step configurations, enabling flexibility for workload partitioning or maximum safety operation. Key features include:

Full Power Architecture ISA compatibility with user-level instruction set

Variable Length Encoding (VLE) for code density optimization

Enhanced core features such as hardware-based monitoring, Memory Management Unit (MMU), and Signal Processing Engine 2 (SPE2)

16 KB instruction and 16 KB data caches for high-speed memory access

This dual-core approach allows independent or redundant execution, a vital consideration for systems that require both high performance and rigorous fault tolerance.

SPC5673KF0VMM1R Memory Design and Administration

The memory subsystem in the SPC5673KF0VMM1R is designed to provide fast, reliable access while maximizing safety and data integrity. Highlights include:

1 MB of flash memory with Error Correction Code (ECC) for secure program storage

Up to 512 KB of embedded SRAM with ECC, offering ample space for data buffers, real-time tasks, and safety overlays

64 KB of EEPROM in four independent 16 KB blocks, also with ECC, suitable for parameter storage and system calibration

Dual crossbar interconnects and memory protection units (MPUs) for deterministic and secure data access across concurrent tasks

These memory features ensure that the microcontroller can confidently support complex algorithms, frequent data logging, and critical control routines—core requirements for safety and chassis applications.

SPC5673KF0VMM1R Peripheral Interfaces and Connectivity Options

To meet automotive system demands, the SPC5673KF0VMM1R integrates a diverse set of peripherals and communication interfaces, providing high versatility:

4 x FlexCAN (32 message buffers each), supporting reliable automotive-grade communication

1 x FlexRay (64 message buffers) for high-speed, fault-tolerant networking

1 x Fast Ethernet Controller for connectivity with modern networking topologies

4 x LINFlex (SCI) channels and 3 x I²C for extended device communication

3 x DSPI and Parallel Digital Interface for high-throughput data streams

Quad 12-bit ADCs (11 channels each), supporting multiple sensor interfaces and critical real-time measurements

3 x FlexPWM (3 x 12 channels) and 3 x eTimer modules for precise timing and actuator control

MDDR and CTU connectivity options for memory and timer-based event processing

This breadth of interfaces and analog front-end integration shortens design time and enhances the flexibility of the system architecture, especially when addressing sensor fusion and multiple control domains typical in automotive projects.

Safety and Dependability SafeAssure Solution in SPC5673KF0VMM1R

The SPC5673KF0VMM1R is part of NXP’s SafeAssure program—a suite of hardware and software initiatives aimed at simplifying the path toward compliance with international functional safety standards such as ISO 26262 (ASIL-D) and IEC 61508. Key safety-centric enhancements include:

On-chip redundancy for critical MCU subsystems: CPU core, DMA, interrupt controllers, crossbar buses, and more

Lock-step redundancy checking for real-time detection and correction of common faults

Integrated SoR (Sphere of Replication) for high-integrity path verification

Watchdog timers and dual-level monitoring for runtime assurance

By embedding these advanced redundancy and monitoring mechanisms in hardware, the device enables OEMs and Tier-1 suppliers to achieve higher system safety grades with less reliance on complex software error trapping, expediting functional safety certification processes.

SPC5673KF0VMM1R Software Development Environment and Tools

A thriving development ecosystem is crucial for leveraging the full capabilities of the SPC5673KF0VMM1R. The microcontroller is supported by a comprehensive suite of development tools, including:

Compilers and IDEs: Freescale CodeWarrior, Green Hills Software, Wind River Diab

Debuggers: P&E Micro, Lauterbach, Green Hills Software

AUTOSAR-compliant runtime software for standardized middleware layers

Specialized drivers, including Flash and FEE (Fault-tolerant EEPROM Emulation), and software core self-test utilities

This mature toolchain reduces development risk and shortens time-to-market for new safety and control systems, enabling straightforward integration with automotive networks and rapid prototyping.

Use Cases SPC5673KF0VMM1R for Automotive Chassis and Safety Systems

Designed with a deep understanding of the automotive sector, the SPC5673KF0VMM1R excels in core ADAS, chassis, braking, and power distribution controller applications. The combination of high-speed processing, extensive connectivity, and functional safety helps address these real-world engineering scenarios:

Radar, LIDAR, and ultrasonic/environmental sensor data fusion for advanced driver assistance

Redundant signal processing for electronic stability control and adaptive cruise systems

Chassis domain controllers that demand both vast I/O and mission-critical reliability

Powertrain and electrification management requiring secure real-time performance and ISO 26262 compliance

Its scalable safety architecture and interface mix support both present-day safety innovations and the growing future needs in electrification and connected vehicles.

Alternative or Substitute Models for SPC5673KF0VMM1R

When considering the SPC5673KF0VMM1R during the device selection or procurement phase, engineers may also evaluate alternative or complementary products from the Qorivva MPC56xx series (such as MPC5675K or other MPC567xK variants) depending on final system requirements. Key considerations for selecting equivalents include:

Total flash and SRAM requirements for application software and real-time buffers

Required communication peripherals (e.g., number of CAN, LIN, or FlexRay interfaces)

Processing power for concurrent algorithm execution or redundancy demands

Safety architecture level necessary for compliance (ASIL-B, ASIL-D, etc.)

Existing software and toolchain investments for migration ease

Engineering judgment should guide the equivalent model selection based on unique system constraints and future-proofing strategies.

Conclusion

The SPC5673KF0VMM1R microcontroller stands out as a robust, safety-oriented solution for modern automotive and industrial applications, providing a carefully engineered mix of Power Architecture processing, versatile communication peripherals, and embedded functional safety mechanisms. Supported by a mature toolchain and adoption in demanding ADAS and chassis domains, it presents a compelling choice for engineers and procurement professionals committed to elevating system reliability, safety, and performance. With its scalable memory, flexible I/O, and redundant architecture, the SPC5673KF0VMM1R will continue to be a keystone device in next-generation safety-critical control systems.
