NXP USA Inc. MPC860DEZQ80D4

Summary of the MPC860DEZQ80D4 NXP Microprocessor

The NXP MPC860DEZQ80D4 is a member of the MPC8xx PowerQUICC family, providing an integrated solution for embedded communications processing. Packaged in a 357-pin ball grid array (PBGA) and operating at up to 80 MHz, this device is engineered for telecommunications, network, and industrial control applications demanding robust communication, memory interfacing, and processing power within a single chip. The MPC860DEZQ80D4 leverages Power Architecture™ technology, ensuring compatibility and longevity in designs where classic networking and embedded system architectures are prevalent.

Main Architectural Characteristics of the MPC860DEZQ80D4

At its core, the MPC860DEZQ80D4 features a 32-bit embedded processor that implements the Power Architecture™ instruction set. This CPU includes advanced features such as branch prediction with conditional prefetch, sophisticated instruction and data cache hierarchies (ranging from 4 KB to 16 KB), lockable cache blocks, and integrated memory management units (MMUs) supporting multiple page sizes and virtual address spaces.

A major architectural advantage is the baked-in communications processor module (CPM), originally evolved from the classic QUICC architecture. Building on this heritage, the MPC860DEZQ80D4 delivers enhanced parallel communication capabilities, efficient Direct Memory Access (DMA) management, and autonomous RISC-based control for peripheral functions. This modular architecture reduces CPU burden, enabling deterministic communication and data handling for high-reliability embedded network applications.

Major Functions and On-Chip Peripheral Collections of the MPC860DEZQ80D4

Engineers considering the MPC860DEZQ80D4 will find a highly integrated device designed to reduce bill-of-material (BOM) complexity and improve system reliability. The major features include:

Broad memory interface: Eight-bank memory controller supporting DRAM, SRAM, EPROM, Flash, and SIMMs, programmable with glueless connectivity for variable memory sizes and speeds.

Advanced bus interface: 32-bit data and address buses, dynamic sizing for 8/16/32-bit devices, and up to 32 address lines, allowing flexible system designs.

Embedded memory: Up to 8 KB dual-port RAM for buffer management and real-time operations.

Multiple serial communications interfaces:

- Four Serial Communications Controllers (SCCs) for protocols like Ethernet (IEEE 802.3), HDLC/SDLC, PPP, AppleTalk, UART, IrDA, and more.

- Two Serial Management Controllers (SMCs) supporting UART, transparent operation, and Time-Division Multiplexed (TDM) connectivity.

- Dedicated SPI and I²C interfaces for peripheral expansion and custom buses.

Versatile connectivity: Parallel interface port with Centronics support; PCMCIA interface supporting up to two sockets for flexible expansion.

Communications acceleration: On-chip features for ATM (UNI 4.0), including support for AAL5/AAL0, cell multiplexing/demultiplexing, and direct UTOPIA/serial interface modes.

Hardware timers: Four 16-bit (or two 32-bit) timers and a periodic interrupt timer for precise event scheduling.

System management: Watchdog, low-power modes (doze, sleep, deep sleep, and power-down), advanced debug with breakpoints and watchpoints, and IEEE 1149.1 JTAG for boundary scan and test.

Network-centric applications benefit from careful pin assignment, support for high-speed MII (media-independent interface) for Ethernet PHYs, and a flexible interrupt system with both external and internal sources.

Power Usage, Thermal Management, and Layout Guidelines for the MPC860DEZQ80D4

For reliable operation, the MPC860DEZQ80D4 is specified to operate at 3.3V, with 5V-tolerant I/O except for the EXTAL and EXTCLK pins. Power dissipation is dependent on bus and core frequency, with typical and maximum conditions characterized at 3.3V and 3.5V respectively. Engineers must pay close attention to thermal management, particularly in dense designs. The PBGA packaging offers strong thermal performance, with industry-standard methods for junction-to-ambient, junction-to-board, and junction-to-case resistance. Design engineers are encouraged to utilize a multilayer PCB with extensive ground and power planes, short trace lengths for high-speed signals (especially address/data bus), and robust decoupling strategies including 0.1μF capacitors as close as possible to power pins.

Unused inputs should be pulled to a defined logic level, and care should be taken with PLL power supplies to minimize jitter and noise effects on clock circuits. These practices are especially critical at the upper end of the frequency range and when deploying in harsh thermal environments.

Timing Performance, Signal Quality, and Bus Architecture with MPC860DEZQ80D4

To ensure data integrity and signal coherence, the MPC860DEZQ80D4 offers detailed timing parameters for all major interfaces, including the main system bus (up to 66 MHz synchronous operation), communications channels (SCC, SMC, SPI, I²C), memory access, debug JTAG, and PCMCIA cycles. The device supports both synchronous and asynchronous bus cycles, programmable wait states, and flexible memory controller timings to interface with a wide spectrum of external memory types.

Correct bus design is essential for avoiding timing violations, especially since bus speeds can reach up to half the CPU core frequency (80 MHz part: 40 MHz bus in half-speed mode). The documentation provides comprehensive diagrams for setup, hold, and propagation delays, as well as recommendations for interrupt, reset, and debug timing.

Physical and Packaging Details for the MPC860DEZQ80D4

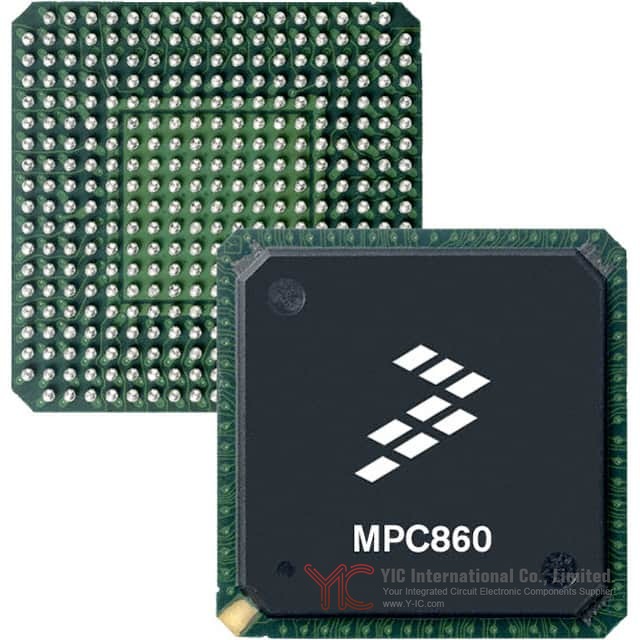

The MPC860DEZQ80D4 is supplied in a 357-ball PBGA (Plastic Ball Grid Array) with a 25x25 mm body size. This choice of package supports high pin-count requirements essential for bandwidth-rich networking applications, while minimizing parasitic inductance and optimizing PCB real estate. The documentation details pinout, ball designations, and mechanical tolerances for both 'ZQ' and older 'ZP' variants, with a recommendation to prefer the 'ZQ' for new designs. Precision in footprint adherence is required for successful soldering and thermal performance, especially in applications utilizing extensive memory and peripheral connections.

Alternative or Substitute Models for MPC860DEZQ80D4

When considering the MPC860DEZQ80D4, engineers may also explore other members of the MPC8xx family to suit variations in performance, peripheral mix, or package options. This may include alternative derivatives such as:

Other MPC860 revisions with different speed grades or packaging (e.g., lower-frequency variants, or packages tailored for high-density layouts).

Functionally similar MPC855T models, for designs requiring a similar communications controller core with minor peripheral differences.

More recent offerings from NXP or Freescale that maintain Power Architecture™ compatibility, should supply chain or lifecycle considerations push for next-generation devices.

When selecting a replacement, careful verification of pin compatibility, feature subset, and electrical characteristics is required, especially in legacy network, telecom, and industrial control environments.

Conclusion

The NXP MPC860DEZQ80D4 stands as a robust, proven solution for engineering teams developing embedded communications systems requiring high integration, flexibility, and reliable performance. With a wealth of peripheral support, advanced network acceleration features, and a mature Power Architecture™-based core, the MPC860DEZQ80D4 serves long lifecycle applications in industrial, networking, and telecommunications fields. Optimal implementation requires careful consideration of PCB design, thermal management, and timing closure, but rewards engineers with a highly integrated multiprotocol controller, reducing system complexity and enhancing maintainability for demanding embedded projects.
