NXP USA Inc. MPC8349EVVAGD

Summary of MPC8349EVVAGD PowerPC e300 Microprocessor Features

The MPC8349EVVAGD, manufactured by NXP USA Inc., is a member of the MPC83xx family, designed for high-performance embedded applications. Housed in a 672-ball LBGA package with dimensions of 35mm x 35mm, it supports robust design integration. This device features a single PowerPC e300 core operating at a frequency of 400MHz, making it well-suited for networking, storage, and general-purpose embedded systems. With extensive support for industry-standard interfaces and advanced security features, the MPC8349EVVAGD stands out as a versatile microprocessor for demanding engineering applications.

MPC8349EVVAGD Core Structure and Performance Specifications

At the heart of the MPC8349EVVAGD is the PowerPC e300 processor core, capable of operating up to 667MHz across the MPC8349EA series. It is a superscalar architecture, able to execute multiple instructions per cycle, optimizing throughput for system-level tasks. The core is equipped with 32KB instruction cache and 32KB data cache, with sections that can be locked for deterministic performance. It supports floating-point computation and integrated power management, allowing system designers to balance processing requirements and power efficiency. Its Power Architecture compliance ensures broad software compatibility and portability across other Freescale-NXP PowerPC platforms.

DDR/DDR2 SDRAM Memory Controller Attributes of MPC8349EVVAGD

The memory controller in MPC8349EVVAGD is designed to handle both DDR1 and DDR2 SDRAM modules, facilitating flexible memory configurations. It supports programmable timing, 32- or 64-bit data bus interfaces, and can handle up to four physical memory banks, each independently addressable up to 1GB. Error Correction Code (ECC) is integrated, providing fault-tolerant memory operations. The controller provides advanced features such as multiple open page support, auto-refresh, sleep mode, and on-the-fly power management. It also offers compatibility with different voltage standards — 2.5V SSTL2 for DDR1 and 1.8V SSTL2 for DDR2 — and supports registered DIMMs for scalability in large systems.

Built-In High-Speed Communication Ports on MPC8349EVVAGD

For networking and peripheral connectivity, the MPC8349EVVAGD integrates dual three-speed Ethernet controllers (TSECs) supporting 10/100/1000 Mbps, compliant with IEEE 802.3 standards. These controllers provide GMII/RGMII, TBI/RTBI, and MII physical interfaces for versatility in network design. Internal buffering delivers 2KB transmit/receive FIFOs per controller, and large jumbo frame support up to 9.6KB enhances high-bandwidth data transfers. The device includes a dual PCI interface, supporting 32-bit and 64-bit data widths up to 66MHz, operating as either host or agent, with programmable address translation and streaming capabilities for high-throughput applications.

Peripheral Connectivity and Interface Options for MPC8349EVVAGD

Complementing its high-speed buses, the MPC8349EVVAGD incorporates a broad suite of peripheral interfaces. These include:

DUART (two 4-wire serial ports compatible with standard UART models)

SPI (serial peripheral interface supporting master/slave operation)

I²C (dual two-wire interfaces with multiple master support and digital filtering)

USB (dual role controller supporting USB 2.0 OTG and high-speed device/host configurations)

Local Bus Controller (multiplexed 32-bit address/data up to 133MHz, supporting various protocols)

GPIO (64 programmable parallel I/O pins)

Timers (periodic, real-time clock, watchdog, and general-purpose timers)

JTAG boundary scan (IEEE 1149.1 compliance for test and debug)

The integrated DMA controller provides four independent virtual channels for concurrent data transfer, with handshaking support and interrupt capabilities.

MPC8349EVVAGD Electrical Specifications and Power Requirements

MPC8349EVVAGD operates at core voltages typically around 1.2V to 1.3V, with recommended operating conditions ensuring reliability and device longevity. I/O supply voltages (OVDD, LVDD, GVDD, AVDD) must be well-matched and tracked according to system design best practices. The device supports flexible power-up sequencing; however, applying core voltage before I/O voltages is advised to avoid excessive current draw during ramp-up. In typical operation at 400MHz and ambient conditions, engineers should anticipate core power dissipation based on benchmark scenarios, with additional consideration for I/O power depending on active interfaces.

MPC8349EVVAGD Heat Dissipation and Thermal Solutions

Thermal management is essential for high-reliability microprocessor deployment. The MPC8349EVVAGD’s TBGA package provides path for efficient heat dissipation. Key parameters for estimation include junction-to-ambient and junction-to-board thermal resistance, which must be factored into system-level modeling. Junction temperature can be calculated using simplified equations based on power dissipation and measured or estimated board/ambient temperature. For high-power designs or constrained airflow environments, heat sink solutions (from vendors such as Aavid Thermalloy, Alpha Novatech, and others) and interface materials (Chomerics, Dow-Corning, Shin-Etsu, Bergquist) are recommended, with attention paid to mounting force and thermal grease application.

Physical Layout, Pin Assignments, and Packaging Details for MPC8349EVVAGD

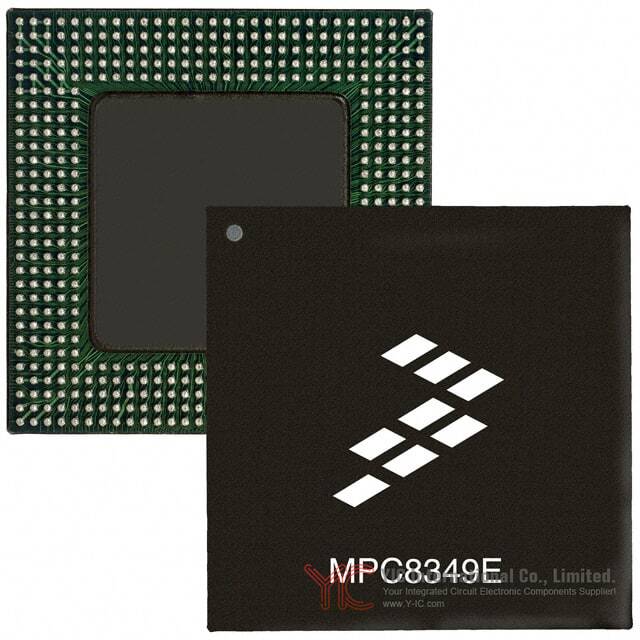

The MPC8349EVVAGD is delivered in a 672-ball tape ball grid array (TBGA), sized at 35mm per side. The pinout is meticulously structured with explicit guidance on signal assignment, directional flow, and required pull-up/pull-down resistor values for correct configuration and system initialization. Open-drain signals must be provided with external resistors as specified in the datasheet, and NC pins should remain unconnected. Detailed mechanical drawings and pin-lists are available to support PCB layout and manufacturing.

Design Guidelines for System Integration Using MPC8349EVVAGD

System integration with MPC8349EVVAGD requires careful attention to clock input selection, PLL configuration (system and core PLL), power supply decoupling, and output buffer impedance matching. The device offers flexibility as a PCI host or agent; hence, the clock source and PLL multipliers should be selected to maintain all internal and external clock frequencies within specified operating ranges. Decoupling and bulk capacitors must be strategically placed to minimize noise and transient effects, with recommendations for ceramic SMT types for lowest inductance. Proper assignment of unused inputs, adherence to output buffer impedance targets, and configuration pin guidance will ensure robust platform stability.

Alternative and Compatible Model Suggestions for MPC8349EVVAGD

For engineers seeking similar solutions or evaluating alternatives, the following recommendations are relevant:

Other MPC8349EA series variants (based on core frequency, temperature range, or package type)

Compatible PowerPC e300 core devices within the MPC83xx family (e.g., MPC8349E, MPC8347EA)

Devices supporting comparable DDR/DDR2 memory interface and dual gigabit Ethernet controllers

Potential migration to NXP’s later Power Architecture-based processors, if advanced features or higher performance is required

Careful cross-referencing specifications, form factors, and feature sets is essential for ensuring compatibility in replacement scenarios.

Conclusion

The MPC8349EVVAGD PowerPC e300 Microprocessor is a comprehensive platform for system designers addressing networking, communications, and embedded processing challenges. With its rich feature set, robust architecture, and detailed electrical, thermal, and mechanical specifications, MPC8349EVVAGD is ideally suited for applications demanding flexibility, high performance, and long-term reliability. Consideration of its system-level characteristics and potential alternatives makes this device a solid choice for advanced embedded solutions.
