NXP USA Inc. MC68336GCFT20

MC68336GCFT20 Microcontroller Summary

The MC68336GCFT20 microcontroller from NXP USA Inc. is part of the M683xx product family, engineered for complex control applications requiring robust performance and flexible integration. Designed with a 32-bit CPU32 core and a ROMless architecture, the MC68336GCFT20 operates at 20 MHz, featuring a comprehensive set of built-in peripherals and a wide operating temperature range. Housed in a 160-pin QFP (28 x 28 mm), this device targets advanced industrial and automotive applications that demand high-speed processing, extensive connectivity, and ease of expansion.

Key Architectural Features and Main Processing Capabilities of MC68336GCFT20

At the heart of the MC68336GCFT20 is the CPU32 architecture, a single-core 32-bit microcontroller capable of executing high-speed operations. With a clock frequency of 20 MHz, the device delivers performance suited to real-time control systems and intensive embedded tasks. The ROMless design provides flexibility for use with external memory modules, accommodating custom firmware requirements and facilitating rapid development cycles. Engineers can capitalize on 7.5K x 8 bytes of on-board RAM, complemented by EEPROM for configuration and non-volatile storage.

Peripheral Modules and Connectivity Options of MC68336GCFT20

The MC68336GCFT20 offers a robust array of integrated peripherals and interfaces, supporting diverse system requirements. Key features include:

CANbus: Supports automotive and industrial communication protocols, enabling reliable, high-speed data transfer between controllers and subsystems.

EBI/EMI: Provides external bus interfaces for expanded memory and peripheral integration.

SCI/SPI: Serial interfaces allow straightforward connectivity with sensors, actuators, and other MCU peripherals, enhancing system modularity.

Programmable timers, PWM output, watchdog timer: Ensures precise timing, motor control, and system reliability in demanding control environments.

A/D converters: Featuring 16 channels at 10-bit resolution, the MCU meets analog signal acquisition needs, crucial in industrial automation.

POR (Power-on Reset): Guarantees stable system initialization and safeguards operational integrity.

A comprehensive pinout supports flexible I/O mapping, including address, data, control signals, and integrated timer channels. Through the combination of these peripherals, the MC68336GCFT20 can serve as the backbone of complex control networks, facilitating synchronized device interaction and real-time data processing.

Physical Dimensions and Packaging Details of MC68336GCFT20

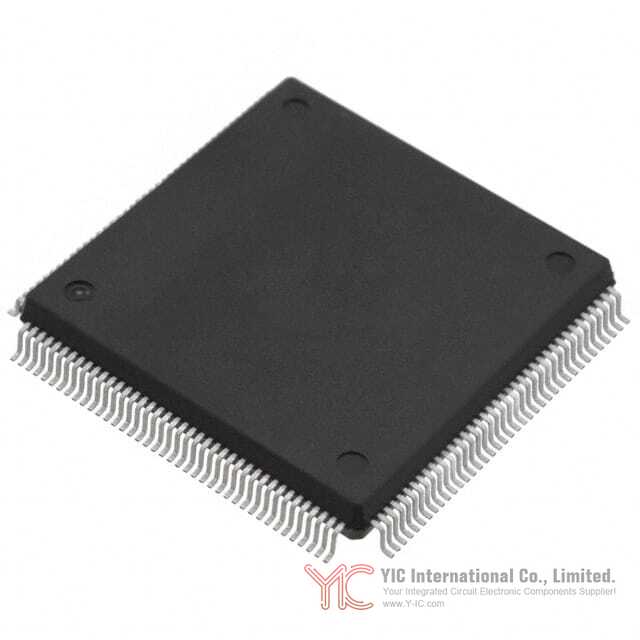

Mechanical suitability is often a determinative factor in component selection for embedded systems. The MC68336GCFT20 comes in a 160-QFP package, measuring 28 x 28 mm, designed for surface mount technology and high-density PCBs. The pin configuration provides easy access to all peripheral signals and supports large-scale integration in automotive or industrial controllers. Dimensional tolerances adhere to ANSI Y14.5M, ensuring predictable fit and alignment within tightly packed circuit boards. Detailed package drawings and tolerances are available for reference during system design and layout stages.

MC68336GCFT20 Environmental Specifications and Compliance Standards

Targeting deployment in harsh environments, the MC68336GCFT20 is rated for operation from -40°C to +85°C. Its supply voltage range from 4.75V to 5.25V is suitable for standard industrial power rails. The device is RoHS non-compliant and REACH unaffected, with a moisture sensitivity level of MSL 2 (one year). These factors are critical for system designers and procurement engineers seeking to meet environmental, regulatory, and reliability standards, especially in legacy or maintenance-intensive installations.

Alternative or Substitute Models for MC68336GCFT20

When considering alternatives or replacements for the MC68336GCFT20, engineers should examine the broader M683xx family and the closely related MC68376 models. The MC68376 shares the same 160-QFP package and peripheral set, offering compatibility for applications requiring hardware equivalence. Both MC68336 and MC68376 variants differ primarily in memory configuration and mask ROM options, allowing tailored selection to specific project requirements. To ensure direct drop-in compatibility, verify pin assignments, operational voltage, temperature range, and peripheral feature sets when cross-referencing models.

Conclusion

Selecting the MC68336GCFT20 microcontroller requires a close evaluation of architectural performance, peripheral support, mechanical integration, and environmental compliance. Its robust 32-bit CPU32 core, flexible peripheral set, and industry-standard packaging position it as a strong solution for advanced embedded applications. By reviewing both its technical attributes and available alternatives, engineers and procurement specialists can optimize their system designs for reliability, scalability, and regulatory adherence.
