ZXSC310E5TA Diodes Incorporated LED Driver Controller Product Summary

The ZXSC310E5TA from Diodes Incorporated is a compact step-up (boost) DC-DC controller IC optimized for driving LEDs, particularly in demanding battery-powered LCD backlighting scenarios. Packaged in a TSOT-23-5, it is engineered to deliver robust LED performance from low input voltages (as low as 0.8V), making it highly suitable for portable and handheld devices. The controller’s ability to operate with single-cell configurations—NiMH, NiCd, or Alkaline—as well as multi-cell or Lithium-ion sources, supports broad design flexibility across multiple platforms.

Main Functions of the ZXSC310E5TA Series

Designed for efficiency, the ZXSC310E5TA achieves up to 94% conversion efficiency—a vital factor in extending battery life and minimizing thermal issues in compact electronic products. Key highlights of this series include:

Wide input voltage range (0.8V to 8V)

Ultra-low standby current (<5μA), supporting extended shelf and operational life

Programmable output current suitable for both serial and parallel LED arrays

Dynamic shutdown control for power management

Compatibility with a range of external switching transistors and Schottky diodes, enabling optimized solution tailoring

Industry-standard miniature SOT23-5 package for cost-effective PCB real estate management

Internal Structure and Working Mechanism of ZXSC310E5TA

At its core, the ZXSC310E5TA is a PFM (Pulse Frequency Modulation) DC-DC controller designed to drive an external switching transistor. The architecture is built around an internal reference circuit, comparator, and current sense function. The current through the LEDs is monitored by a sense resistor, with the comparator threshold set at 19mV. When this limit is reached, the switching transistor is rapidly turned off via an internal monostable timing circuit, which typically enforces a 1.7μs off-period, ensuring complete coil discharge before the next cycle.

Switching frequency and on-pulse duration are primarily determined by the programmed peak current and input-to-output voltage differential, allowing engineers to control output brightness and efficiency for their target application. The fast switch-off capability (typically within 30ns) supports low loss and high-speed operation, essential for maximizing power conversion performance at low input voltage levels.

Intended Uses for ZXSC310E5TA LED Driver

The ZXSC310E5TA series presents a versatile solution for various LED driving applications. Its feature set makes it particularly apt for:

LCD backlighting in digital still cameras, PDAs, and mobile phones

High-efficiency white LED driver circuits

Multiple LED operating environments, including both series and parallel arrays

LED flashlights and portable torches where size, efficiency, and battery life are key design constraints

Sample Circuit Applications Utilizing ZXSC310E5TA

Three primary reference designs illustrate the adaptability of the ZXSC310E5TA in typical engineering contexts:

LCD Backlight Solution: Utilizes a constant DC current, programmable via a sense resistor (often set to 20mA), with serial LED connections for uniform light distribution. Incorporates an external Schottky diode and output capacitor to maintain stable current.

Maximum Brightness Solution: Employs continuous current output to maximize LED luminance, using both rectification and buffering of the DC-DC output.

Optimized Battery Life Solution: Supplies pulsed current to LEDs, minimizing rectifier losses and maximizing battery runtime—a crucial consideration for portable, battery-operated systems.

Design Guidelines and Selection of Components for ZXSC310E5TA

Selection of external components is a critical step for those customizing ZXSC310E5TA-based designs:

Switching Transistor Selection: Efficiency hinges on low VCE(sat) and high gain; the Zetex FMMT618 is recommended due to its low saturation characteristics, enabling minimal conduction losses.

Schottky Diode Selection: In designs prioritizing maximum brightness, low forward voltage and fast recovery Schottky diodes are vital—Zetex ZHCS1000 is cited as a recommended model.

Inductor Selection: Typical designs utilize a 68μH inductor, with core saturation current rating set above the peak required by the converter, and low series resistance (<500mΩ) for peak efficiency.

Sense Resistor Selection: Peak current (IPK) is calculated against worst-case voltage and gain conditions; RSENSE is then defined (RSENSE = VISENSE/IPK) to set the output current as desired.

Capacitor Selection: For rectified outputs (maximum brightness designs), a small ceramic capacitor (approx. 2.2μF) may be required to stabilize output. Input capacitors are generally optional but recommended for enhancing EMC.

Electrical Specifications and Standard Performance Data of ZXSC310E5TA

Under standard test conditions (VCC=1.5V, Ta=25°C), the ZXSC310E5TA demonstrates stable performance suitable for demanding LED applications. The shutdown mode is enabled/disabled via voltage at the STDN pin—>0.7V for operation, <0.1V for standby (open circuit also defaults to enabled), producing a minimal sleep current under 5μA. The typical output power and switching frequency calculations follow well-defined formulas, allowing precise prediction of system behavior.

Engineers are encouraged to use the reference circuit performance curves and tabular selection guides in the product datasheet to optimize efficiency and brightness per application requirements.

Packaging Details for ZXSC310E5TA

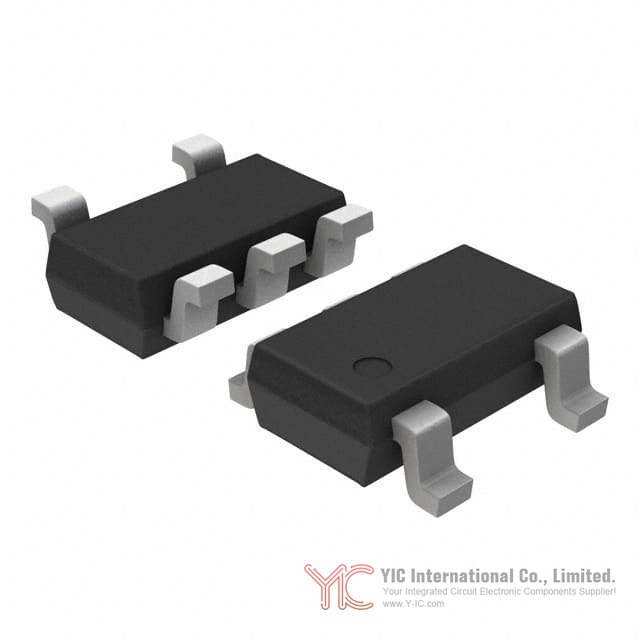

The device is provided in the SOT23-5 package, an industry-standard, compact footprint suitable for high-density PCB layouts. Package dimensions and pinout documentation support straightforward integration into modern electronics manufacturing processes.

Possible Alternatives or Replacement Parts for ZXSC310E5TA

When evaluating alternatives or cross-referencing for supply continuity, typical equivalent models include comparable PFM DC-DC LED driver controllers from Diodes Incorporated or other reputable manufacturers. Key matching criteria should encompass input voltage range, efficiency rating, package compatibility, and current programming capability. While the ZXSC310E5TA is optimized for use with external FMMT618 transistors and ZHCS1000 Schottky diodes, selections may widen based on the particular switch and diode requirements of the intended design.

Conclusion

The Diodes Incorporated ZXSC310E5TA stands out as a compact, high-efficiency boost controller for LED driving in portable, LCD backlit, and multi-LED array environments. Its robust architecture supports flexible configurations, superior power conversion, and extended battery life, particularly when paired with appropriate external components such as the recommended Zetex FMMT618 transistor and ZHCS1000 diode. By understanding the key features, application notes, and reference designs, procurement specialists and design engineers gain a comprehensive guide to the strengths and integration strategies for the ZXSC310E5TA—assuring confident selection for high-performance LED driver solutions.
