Overview of SMCJ33A-13-F Transient Voltage Suppressor Diode

The SMCJ33A-13-F, manufactured by Diodes Incorporated, is a high-performance surface-mount Transient Voltage Suppression (TVS) diode engineered for sensitive electronic circuit protection. Targeted for use in environments where robust overvoltage or surge protection is essential, this device belongs to the SMCJ5.0(C)A–SMCJ200(C)A series, known for their reliability and versatility across a wide voltage range. Understanding the operational specifics and application advantages of the SMCJ33A-13-F can significantly impact the effectiveness and safety margin of modern electronic designs.

Essential Electrical Specifications and Performance Parameters of SMCJ33A-13-F

Engineers evaluating the SMCJ33A-13-F should note its key electrical parameters, crucial for circuit protection strategies. This device is rated for a working standoff voltage (VWM) of 33V and clamps surges at 53.3V (maximum clamping voltage, VC). The SMCJ33A-13-F delivers a peak pulse power dissipation of 1500W on an 8/20µs waveform, supporting transient currents up to 28.1A. These attributes empower the SMCJ33A-13-F to safeguard voltage-sensitive components during lightning surges, inductive load switching, or electrostatic events.

The glass passivated die construction ensures consistency and fast response times, with total device response measured in picoseconds. Additionally, the series supports both unidirectional and bidirectional variants—an important distinction when matching the TVS diode to specific AC or DC protection roles in a system.

Physical Dimensions and Packaging Details of SMCJ33A-13-F

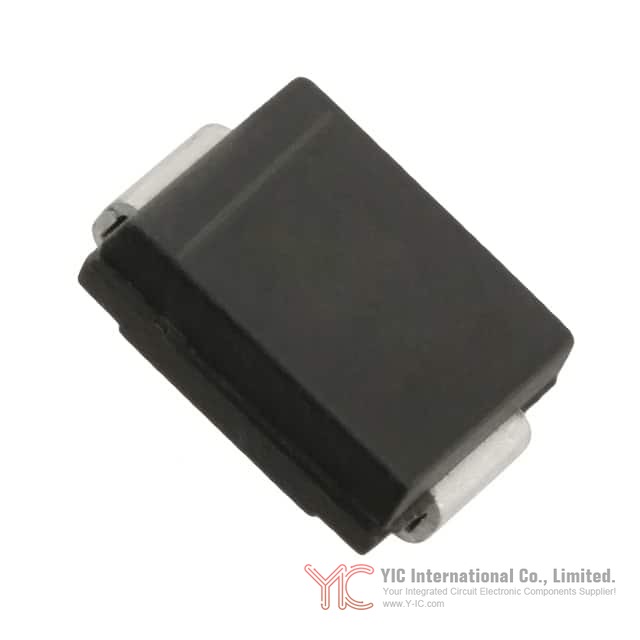

The physical implementation of TVS protection is a key consideration for reliability and manufacturability. The SMCJ33A-13-F comes in the compact SMC (DO-214AB) package, utilizing a molded plastic body that is UL94V-0 rated for flammability. The device is moisture sensitivity Level 1 (MSL 1), simplifying storage and assembly processes.

Terminals are finished with lead-free matte tin and are fully RoHS, halogen, and antimony-free—fulfilling “green” device criteria. Solderability is in accordance with MIL-STD-202, Method 208, ensuring compatibility with conventional SMT reflow production. The package weighs approximately 0.21g and features a clearly marked cathode band on unidirectional types for straightforward orientation during PCB assembly.

Design Guidelines and Application Examples for SMCJ33A-13-F

When selecting transient protection devices, engineers must align TVS specifications with the operational requirements of the protected circuitry. The SMCJ33A-13-F’s 33V standoff (reverse working voltage) makes it suitable for protecting 24V, 28V, and closely rated bus or signal lines in industrial, telecommunication, and consumer applications.

Real-world use cases include safeguarding power supplies, communication interfaces, and control lines from voltage transients due to nearby lightning strikes, industrial switching surges, or the sudden release of stored inductive energy. Its high peak pulse handling capacity and fast response time make the SMCJ33A-13-F effective in environments subject to fast rise-time surges. The device’s suitability for both bidirectional and unidirectional applications provides design flexibility, especially in mixed-signal or symmetrical voltage environments.

Standards Compliance, Reliability, and Environmental Features of SMCJ33A-13-F

Reliability and compliance are essential for both design and procurement considerations. The SMCJ33A-13-F is certified for RoHS 1, 2, and 3 compliance, and is constructed from halogen- and antimony-free materials. Environmental robustness is further enhanced by glass passivation and a Green molding compound for assemblies produced since 2009 (date code 0924 onwards).

The mechanical and electrical design conform to industry standards, and Diodes Incorporated offers automotive-compliant variants under separate documentation, expanding versatility for transportation and other high-reliability sectors.

Alternative or Substitute Devices Comparable to SMCJ33A-13-F

The SMCJ33A-13-F is part of the SMCJ5.0(C)A–SMCJ200(C)A TVS diode series. Within Diodes Incorporated's portfolio, similar voltage ratings or bidirectional options (denoted with a “C” suffix) offer drop-in alternatives if different clamping thresholds or mounting needs arise.

For cross-brand equivalency, it is common practice to refer to related devices from other major TVS diode suppliers—provided they match primary specifications: package (SMC/DO-214AB), working voltage (33V), maximum clamping voltage (circa 53V), and peak pulse power (1500W). Careful review of surge waveforms, tolerances, and response times is necessary before selecting a replacement to ensure system-level qualification and compatibility.

Conclusion

The SMCJ33A-13-F TVS diode from Diodes Incorporated presents a robust, reliable solution for mid-range voltage transient suppression in surface-mount applications. With its advanced electrical characteristics, high power dissipation, compliance with stringent environmental standards, and versatile packaging, the SMCJ33A-13-F meets the demands of modern electronics protection. For engineers and procurement specialists, this device offers an optimal blend of performance and reliability, while providing flexibility for alternatives within the same product family and beyond. Selecting the SMCJ33A-13-F with careful attention to application specifics will help ensure the resilience and longevity of critical electronic systems.
