Diodes Incorporated PI7C9X2G303ELBZXE

General Introduction to PI7C9X2G303ELBZXE

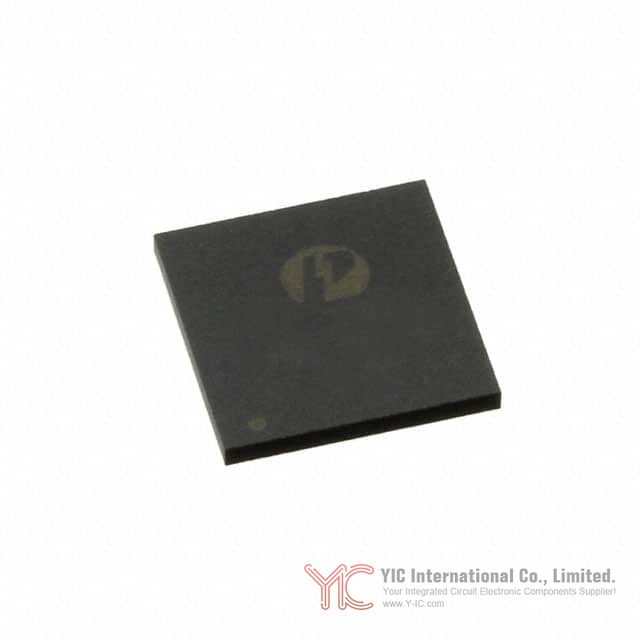

The PI7C9X2G303ELBZXE from Diodes Incorporated is a high-performance PCI Express (PCIe) Gen 2 packet switch, configured with three lanes and three ports. Housed in a compact 136-pin, 8mm x 8mm Advanced Quad Flat No-lead (aQFN) package, it is tailored for applications that demand robust PCIe expansion, low power operation, high reliability, and seamless system management integration. The PI7C9X2G303ELBZXE is fully compliant with PCI Express Base Specification Revision 2.1 and offers compliance with a breadth of industrial standards, making it suitable for use in high-reliability and industrial environments with an ambient operating temperature range from –40°C to 85°C.

Core Design and Main Capabilities of PI7C9X2G303ELBZXE

At its core, the PI7C9X2G303ELBZXE extends host controller reach in PCIe serial interconnect architectures, similar in intent to legacy PCI/PCI-X bridges. With support for both “cut-through” (default) and “store and forward” packet switching, it enables a choice between the lowest possible latency or enhanced data integrity. Its architecture supports peer-to-peer routing, with typical latency as low as 150ns for packet traversal. The integrated reference clock buffer supports multiple downstream devices, and flexibility for configuration comes from strapping pins, EEPROM, or SMBus.

Intelligent arbitration is a hallmark, featuring round-robin, weighted, and time-based weighted arbitration modes to optimize traffic and Quality of Service (QoS). Advanced features include support for dual virtual channels (VC0, VC1), eight traffic classes (TCs), and isochronous traffic handling for multimedia and real-time workloads. The device also implements robust reliability enhancements such as data poisoning, end-to-end CRC, advanced error reporting, and IEEE 1149.1 JTAG boundary scan. Power-saving features minimize consumption—down to 650mW typical in L0 mode—and device state and link-level power management enable deep sleep and auxiliary power options.

Interface Specifications Signals, Pins, and Packaging for PI7C9X2G303ELBZXE

The PI7C9X2G303ELBZXE is presented in a space-efficient 136-aQFN package, supporting dense PCB layouts common in modern systems. It incorporates a full complement of PCI Express interface signals, configuration and system management pins, and IEEE 1149.1 JTAG test access pins for manufacturing, validation, and debug operations. Carefully considered power pin assignments support both main and auxiliary supplies, facilitating the advanced power state transitions described later.

Pin assignments are logically grouped, with dedicated blocks for PCI Express lanes (upstream and downstream), configuration, management, and power—ensuring board designers have clarity in layout and signal integrity strategies. The JTAG interface, supporting standard boundary scan algorithms, accelerates system-level debug and test coverage during production.

Comprehensive Analysis PCIe Switch Operation in PI7C9X2G303ELBZXE

The PI7C9X2G303ELBZXE implements a combined input/output queue (CIOQ) architecture, optimizing internal bandwidth utilization while maintaining guaranteed traffic ordering and deadlock avoidance. On ingress, each port demultiplexes PCIe traffic, extracting transaction and control information. Advanced transaction layer packet (TLP) parsing supports all PCIe traffic types, and integrated buffer management aligns with PCIe transaction ordering rules to prevent data hazards.

Switch-level arbitration and routing leverage both ID-based and address-based logic, ensuring configuration and memory requests are always mapped to the proper port. Isochronous, high-priority traffic (for instance, media or critical control) is reliably managed with mappings to dedicated virtual channels and subject to strict time-based policing. Resource allocation among these queues can be dynamically adjusted: if an application disables VC1, its buffer resources are reassigned to VC0 for maximal throughput. This flexibility is critical in both server and embedded applications where traffic profiles can vary dramatically.

Configurable physical layer circuits provide independent control over each lane’s electrical characteristics, including programmable drive amplitude, de-emphasis, and equalization settings. Via EEPROM or SMBus, engineers can tune the physical interface to account for specific board layouts, backplane designs, or cable lengths.

EEPROM and SMBus Setup and Integration Strategies for PI7C9X2G303ELBZXE

A key feature of the PI7C9X2G303ELBZXE is flexible system initialization and management through external EEPROM and SMBus. The device can auto-load configuration from EEPROM on reset, populating registers that determine both operational characteristics and PCIe enumeration settings. This capability reduces reliance on host software for low-level configuration, simplifying deployment in appliances and embedded subsystems.

The SMBus interface enables full access to readable and writable configuration registers, allowing in-field updates or diagnostics, as well as centralized management in multi-component systems. The SMBus slave interface implements address assignment via dedicated pins, supporting up to eight unique SMBus addresses for complex topologies.

Register Layout and System Management Features of PI7C9X2G303ELBZXE

The PI7C9X2G303ELBZXE supports an extensive set of internal registers. Standard PCIe type 1 headers provide compatibility with PCI and PCI Express enumeration, while a set of extended capability registers implements advanced features, including error logging, virtual channel management, power budgeting, and Access Control Services (ACS) for granular peer-to-peer routing security. Device control and status can be fine-tuned using transparent or advanced register settings, with multiple configuration pointers, memory window controls, and interrupt mappings available.

This architecture allows engineers to build robust handling for performance tuning, monitoring, and failure recovery directly into their system logic or management firmware. Support for hardware-initiated and host-accessible control paths ensures flexibility across both “hard” appliance and “soft” host-managed environments.

Clocking, Diagnostics, and Power Control Systems in PI7C9X2G303ELBZXE

The integrated reference clock buffer simplifies board design and enhances signal integrity by distributing a single 100MHz differential source to all downstream PCIe domains—configurable via pins or registers, and easily disabled for clock domain power savings. Flexible input conditioning supports a range of differential clock types, accommodating various board and system topologies.

Test infrastructure is a strength, with full IEEE 1149.1 JTAG compatibility—facilitating boundary scan for production test, system bring-up, and in-situ validation. The JTAG chain provides device ID, instruction control, and access to detailed boundary scan register maps, supporting both rapid bypass and deep-dive fault isolation.

On the power management front, the device supports all standard PCIe link (L0, L0s, L1, L2/L3) and device (D0, D1, D2, D3-hot/cold) states, with active state power management (ASPM) and sticky registers for rapid state recovery. These features target designs where energy efficiency and fast wake-up are at a premium, including IoT appliances, edge servers, and industrial systems.

Electrical, Timing, and Environmental Specifications for PI7C9X2G303ELBZXE

Engineers and procurement specialists evaluating the PI7C9X2G303ELBZXE benefit from robust environmental and operational metrics. The device is fully rated for –40°C to +85°C operation, with strict adherence to lead-free (RoHS), halogen- and antimony-free definitions—fulfilling requirements for both general industrial and “green” device initiatives.

Electrical characteristics include PCIe Gen 2 signaling at 5.0 Gbps per lane, with programmable analog characteristics supporting both full and half-swing transmission modes. Power consumption is highly optimized: 650mW typical in L0 mode, with deep-sleep and idle port optimizations. Absolute maximums, required supply sequencing, and all signal specifications are documented, supporting worst-case design analysis and margining strategies in high-availability deployments.

Alternative or Substitute Devices for PI7C9X2G303ELBZXE

When assessing the PI7C9X2G303ELBZXE, engineers may consider similar PCIe switch devices supporting Gen 2 operation, 3-port switching, and integrated clock management. Notable categories include PCIe packet switches from brands specializing in high-reliability industrial, storage, or networking applications. Critical selection criteria for equivalents include compliance to PCIe Base Specification 2.1, availability of advanced arbitration and error handling, and similar environmental ratings.

It is crucial to match system requirements such as port count, bandwidth, package type, and power optimization features when selecting a direct replacement. Additionally, software and system management compatibility (EEPROM/SMBus support, register access, and configuration schemes) should be evaluated to ensure seamless drop-in replacement capability.

Conclusion

The PI7C9X2G303ELBZXE offers a compelling solution for designers seeking a modern, reliable, and feature-rich PCIe Gen 2 switch. Its flexible architecture, advanced arbitration and traffic management, robust error handling, and energy-efficient design make it a leading choice for industrial, networking, and embedded applications. With comprehensive configuration, management, and testability features, the PI7C9X2G303ELBZXE delivers both ease of integration and high system robustness—making it well-suited for forward-looking electronic architectures that demand both performance and reliability.
