Diodes Incorporated BZT52C4V7T-7

Summary of BZT52C4V7T-7 Zener Diode Series by Diodes Incorporated

The BZT52C4V7T-7 Zener diode series from Diodes Incorporated represents a widely adopted surface-mount voltage regulation solution for modern electronics. Targeted at engineers and procurement specialists, this 4.7V, 300mW Zener diode, housed in the compact SOD523 package, is designed for low-profile applications where board space and reliability are paramount. The BZT52C4V7T-7 is part of a broader family that spans a variety of nominal Zener voltages from 2.0V up to 36V, supporting a range of design scenarios from voltage referencing to transient suppression.

Key Attributes of the BZT52C4V7T-7 Zener Diode Series

The BZT52C4V7T-7 Zener diode series showcases features engineered for practical design needs in compact electronics. The diode’s flat lead, low-profile surface-mount package provides high power dissipation capabilities relative to its size. Crucially for compliance-driven industries, the device is totally lead-free, fully RoHS compliant, and meets Halogen- and Antimony-free "Green" definitions, aligning with EU environmental directives. Reliability is a highlight, as this series is AEC-Q101 qualified for automotive applications and is PPAP capable, meeting stringent requirements for automotive and industrial sectors.

Package Specifications for the BZT52C4V7T-7 Zener Diode Series

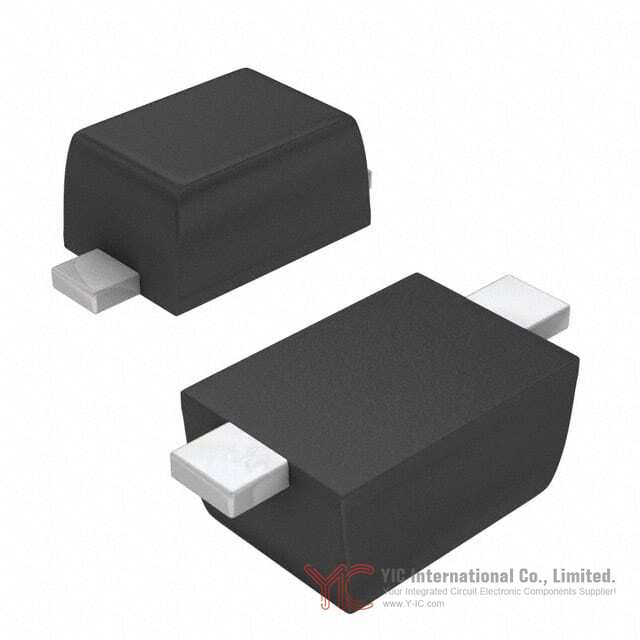

The BZT52C4V7T-7 is encapsulated in a molded plastic SOD523 package. Weighing approximately 0.001g, the package offers both cost-effectiveness and minimal footprint, critical in high-density PCB layouts. The construction includes a matte tin annealed finish on alloy 42 leadframes, supporting solderability per MIL-STD-202, Method 208 e3, and the package compound is UL 94V-0 rated for flammability. Moisture Sensitivity Level 1 certification (per J-STD-020) ensures maximum flexibility in assembly processes, including reflow soldering. Engineers benefit from package outline and pad layout designs accessible on the manufacturer’s portal, streamlining PCB integration and reliability analysis.

Electrical Specifications of the BZT52C4V7T-7 Zener Diode Series

The electrical behavior of the BZT52C4V7T-7 is centered on a 4.7V nominal Zener voltage and a power dissipation rating of 300mW. The device exhibits a ±6% tolerance on breakdown voltage, suitable for precision voltage regulation and clamping duties. Figures provided include typical Zener breakdown characteristics, total capacitance as a function of breakdown voltage, and reverse leakage profiles, enabling engineers to model device performance under a spectrum of loading and ambient conditions. Engineers should note that all critical electrical parameters are characterized at room temperature (25°C), and short-duration pulse testing methodology is used to minimize self-heating during verification.

Thermal Characteristics and Limits of the BZT52C4V7T-7 Zener Diode Series

Thermal management is pivotal in package-level component selection; the BZT52C4V7T-7 is rated for single-phase, half-wave, 60Hz resistive or inductive loads. For capacitive loads, it is required to derate the specified current by 20%, ensuring long-term reliability. The specified ratings are based on the device mounted on a standard FR-4 PCB with a 2oz copper layer and a pad area of 1.92mm², providing engineers with realistic application benchmarks. These ratings are critical for thermal simulation and selection in designs with constrained thermal budgets or high-density layouts.

Environmental Standards and Reliability Information for BZT52C4V7T-7 Zener Diodes

As global regulatory demands increase, the BZT52C4V7T-7 Zener diode series sets a high bar in environmental compliance. All products are fully compatible with EU RoHS and RoHS 2 directives, guaranteeing absence of lead, halogen, and antimony above stipulated thresholds. Qualified to AEC-Q101 standards, the series is proven for high-reliability automotive and industrial use. PPAP-capable documentation further extends suitability to controlled manufacturing environments, ensuring transparent supply chain management and quality assurance in critical sectors.

Suggested PCB Pattern for BZT52C4V7T-7 Zener Diode Series

PCB designers working with the BZT52C4V7T-7 Zener diode series are provided with recommended pad layouts and package outlines, optimizing solderability and thermal conduction. These layouts accommodate automated pick-and-place equipment and ensure robust electrical connectivity while aiding effective heat dissipation. The manufacturer’s online resources can be referenced for the latest mechanical dimensions and suggested land patterns, ensuring rapid design cycles and manufacturability compliance.

Alternative or Substitute Models for BZT52C4V7T-7 Zener Diode Series

For engineers considering the BZT52C4V7T-7 Zener diode series within the broader BZT52C2V0T to BZT52C36T family by Diodes Incorporated, numerous voltage and package variants are available to suit alternate regulation needs. Depending on application voltage requirements, models such as BZT52C3V3T-7 (3.3V), BZT52C6V2T-7 (6.2V), and higher voltage alternatives offer direct compatibility in form and function. For supply chain resilience and design flexibility, referencing the comprehensive voltage selection within this series facilitates rapid product substitution without layout redesign.

Conclusion

for BZT52C4V7T-7 Zener Diode Series

The BZT52C4V7T-7 Zener diode series by Diodes Incorporated stands as a benchmark choice for engineers demanding reliable voltage regulation, compact package dimensions, and assured environmental compliance. Its broad qualification, robust mechanical format, and electrical performance make it fit for high-reliability consumer and automotive applications alike. Whether integrating into space-constrained PCBs, revising for alternative voltage requirements, or ensuring manufacturing compliance, this series provides a strong foundation for quality and flexibility in today’s rigorous electronic design environments.
