Vishay Dale CRCW0402330RFKEDHP

Summary of CRCW0402330RFKEDHP Vishay Dale Product

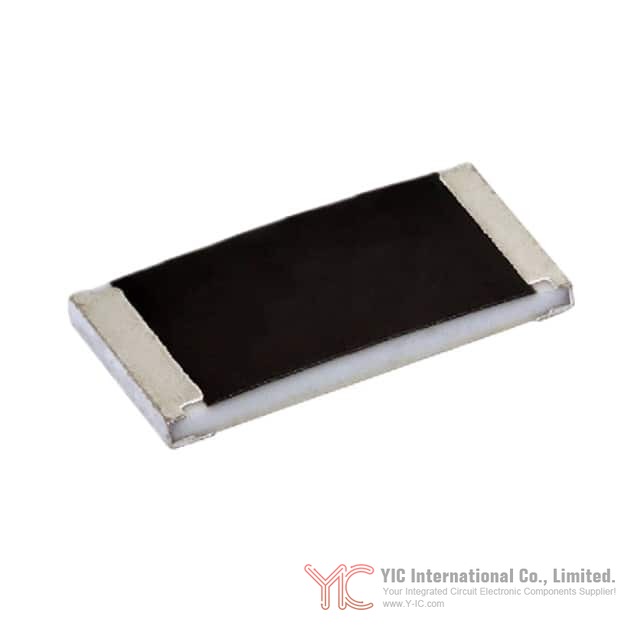

The CRCW0402330RFKEDHP from Vishay Dale is an automotive-grade, surface-mount chip resistor designed for applications demanding robust performance under high pulse loads and increased power ratings. This thick film resistor features a resistance value of 330 Ω, a precision tolerance of ±1%, and a rated power dissipation of 0.2 W (1/5 W), all packed into a highly compact 0402 (1005 metric) footprint. As part of the CRCW-HP e3 series, this device is well-suited to address the reliability and stability requirements of modern automotive, industrial, and commercial electronic systems.

Main Attributes and Benefits of CRCW0402330RFKEDHP Vishay Dale

The CRCW0402330RFKEDHP resistor distinguishes itself with several notable design features:

Excellent pulse load capability, enabling the device to withstand large and repetitive voltage or current spikes—crucial for power management and protection circuitry.

Enhanced power rating within a miniature 0402 package, providing greater flexibility where board space is at a premium.

Double-side or single-side printed thick film resistor element, designed to maximize conductive efficiency and reliability.

AEC-Q200 qualification, offering proven assurance of suitability for automotive applications where durability and consistency are rigorously tested.

RoHS and REACH compliance, ensuring adherence to international materials and substances standards.

Development and Production Methodology for CRCW0402330RFKEDHP Vishay Dale

The CRCW0402330RFKEDHP is manufactured through a carefully controlled process aimed at reproducibility and long-term stability. The resistor element is constructed from a cermet film layer deposited on both sides of an alumina (Al₂O₃) ceramic substrate, which is then finely laser-trimmed to achieve precise resistance values. To protect against environmental and mechanical stresses, the resistor is encapsulated with a highly durable protective coating. Terminals receive a nickel base layer followed by a pure tin finish, making the resistor highly compatible with automated SMD assembly and both lead(Pb)-free and traditional soldering processes.

A stringent sequence of production tests is performed on every unit to guarantee conformity with performance specifications and relevant international standards. Products that pass inspection are presented in tape packaging compliant with IEC 60286-3, supporting efficient integration into automated assembly lines.

Technical Parameters and Environmental Requirements for CRCW0402330RFKEDHP Vishay Dale

The CRCW0402330RFKEDHP delivers a robust technical profile:

Resistance value: 330 Ω

Tolerance: ±1%

Power rating: 0.2 W (1/5 W)

Package size: 0402 (1005 metric)

Outstanding pulse and surge load capabilities

Thermal resistance requirement: ≤110 K/W for rated dissipation

Solderability: specified for up to two years post-production, with a permitted storage time of up to 20 years

Encapsulation: proven chemical resistance against typical cleaning solvents used in electronics

From a regulatory standpoint, the CRCW0402330RFKEDHP is fully compliant with directives including RoHS, ELV, and WEEE, and does not incorporate substances restricted under IEC 62474, GADSL, or REACH SVHC.

Use Cases and Practical Applications of CRCW0402330RFKEDHP Vishay Dale

Designed with demanding conditions in mind, the CRCW0402330RFKEDHP thrives in automotive battery management systems, power control modules, and high-reliability industrial and commercial electronics. Its enhanced pulse endurance makes it especially fit for circuits subject to transient surges—such as those involved in switching, load dumping, or ESD events. Engineering logic dictates careful consideration of board thermal design, ensuring the specified film temperature is not exceeded to avoid drift over time. The resistor is rated for operation within permissive environmental limits and is not subject to a fixed service life provided that these conditions are met.

Installation Procedures, Standards Compliance, and Certification for CRCW0402330RFKEDHP Vishay Dale

The CRCW0402330RFKEDHP supports all mainstream SMD assembly methods including automated pick-and-place, reflow, wave, and vapor phase soldering, per IEC 61760-1 guidelines. Its encapsulation is fully resistant to standard cleaning solutions, while the plated terminals guard against tin whisker formation over prolonged storage periods. The resistor’s automotive-grade credentials are underpinned by AEC-Q200 qualification and conformance with EN 140401-802 and IEC 60068 test methodologies. Regulatory adherence extends to environmentally critical directives (RoHS, ELV, REACH, WEEE), and Vishay’s manufacturing policies emphasize the elimination of conflict minerals from the supply chain.

Alternative or Substitute Options for CRCW0402330RFKEDHP Vishay Dale

For engineering teams requiring alternatives to the CRCW0402330RFKEDHP, Vishay offers several related series tailored for specific application needs:

For superior surge and pulse performance: Vishay D/CRCW-IF e3 series

For standard thick film resistor requirements: Vishay D/CRCW e3 series

For anti-surge, high power: Vishay RCS e3 series

Selection of an equivalent or replacement model should consider the intended circuit’s pulse, power, and environmental demands. Detailed comparison of datasheets will ensure the substitute meets all electrical and quality standards expected in your application.

Conclusion

The Vishay Dale CRCW0402330RFKEDHP combines high power handling, precision, and pulse durability in a miniaturized package that meets or exceeds stringent automotive and industrial standards. Its engineered reliability, comprehensive compliance, and robust manufacturing process make it a strong choice for engineers and procurement specialists responsible for selecting critical circuit protection and power management components. By reviewing the CRCW0402330RFKEDHP’s technical characteristics alongside project-specific needs and available equivalent models, decision-makers can confidently implement this component in demanding electronic designs.
