Infineon Technologies CY7C1471BV33-117AXC

Mfr. Part

CY7C1471BV33-117AXC

Manufacturer

Cypress Semiconductor (Infineon Technologies). Y-IC is a quality distributor of Cypress/Infineon. We are committed to providing the best genuine products, fast delivery, and professional service.

Detailed Description

72 Mbit synchronous SDR SRAM with NoBL (No Bus Latency) architecture. Organization 2M x 36. Parallel interface. 3.3 V supply operation. 117 MHz clock. 7.5 ns access time. Surface-mount 100-pin TQFP/LQFP package. RoHS3 compliant. Packaged in trays. Base product number CY7C1471. Ideal for high-speed buffering and packet memory in networking and telecom.

Current stock reference: Quantity 2631

Key Features

Capacity 72 Mbit (2M x 36 organization)

NoBL/ZBT-like architecture for zero bus turnaround on reads

Synchronous SDR operation with single clock

117 MHz max clock frequency

7.5 ns access time

Parallel data bus 36 bits

3.135 V to 3.6 V supply range

LVTTL-compatible I/O (3.3 V)

Industrial-grade reliability, commercial temp 0°C to 70°C (TA)

RoHS3 compliant lead-free package

Base series CY7C1471 NoBL SRAM

Key Advantages

High throughput with simple parallel interface

Low latency read timing eliminates bus turnaround wait cycles

Stable performance across 3.3 V supply with wide operating margin

Proven Cypress/Infineon NoBL SRAM family used broadly in networking gear

Pin-count and package suited for dense boards while keeping signal integrity

Easy integration with FPGAs, ASICs, and network processors

Packaging

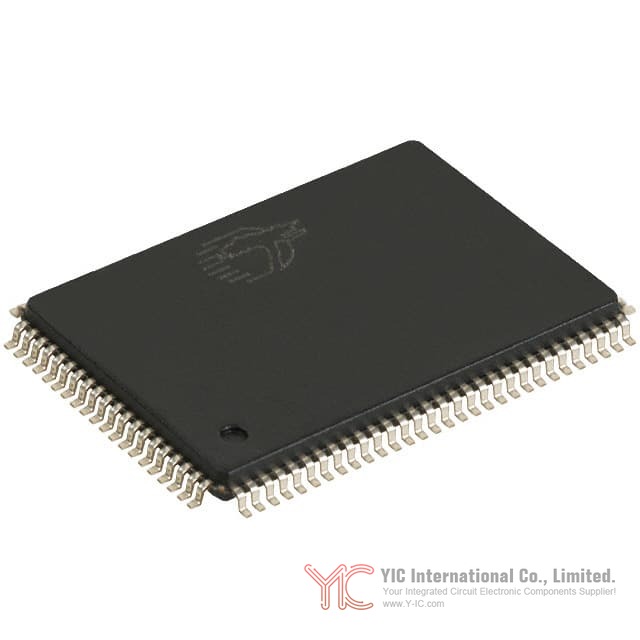

Type: 100-pin TQFP (also referred to as 100-LQFP)

Body size: 14 x 20 mm nominal

Material: Molded plastic, lead-free, RoHS3 compliant

Mounting: Surface mount

Supplier device package: 100-TQFP (14x20)

Shipment: Tray

Pin configuration overview:

- 36-bit data bus DQ[0..35]

- Address pins for 2M depth

- Control pins typical of synchronous burst SRAM (CLK, ADV, CE, OE, WE, byte write enables BWx, sleep ZZ, etc.)

Thermal characteristics:

- Operating ambient temperature 0°C to 70°C

- Use good PCB copper and airflow for heat spreading; consult datasheet for thermal resistance and power dissipation guidance

Electrical properties:

- Vcc 3.135 V to 3.6 V

- Clock 117 MHz

- Access time 7.5 ns

- LVTTL-compatible I/O signaling

Lifecycle

Status: Part of a mature Cypress/Infineon NoBL SRAM family. Availability can vary by region and date. Not broadly indicated as end-of-life in general channel checks, but lifecycle status can change.

Same-family alternatives (speed grade variations, similar pinout):

- CY7C1471BV33-133AXC (133 MHz)

- CY7C1471BV33-167AXC (167 MHz)

Same series with different bus widths (not pin-compatible, but close functional alternatives depending on design):

- CY7C1470BV33 (2M x 18)

- CY7C1473BV33 (2M x 72)

Cross-vendor ZBT/NoBL-type 2M x 36, 3.3 V synchronous SRAMs may be applicable depending on timing and pinout. For verified, drop-in or near-drop-in equivalents, please contact our sales team via the Y-IC website for a curated list and technical cross-check.

Key Application Areas

Ethernet switches and routers packet buffering

Telecom line cards and backplanes

FPGA and ASIC external cache/buffer memory

DSP frame buffers and data queues

Imaging, video, and graphics pipelines

High-speed data acquisition and protocol processing
