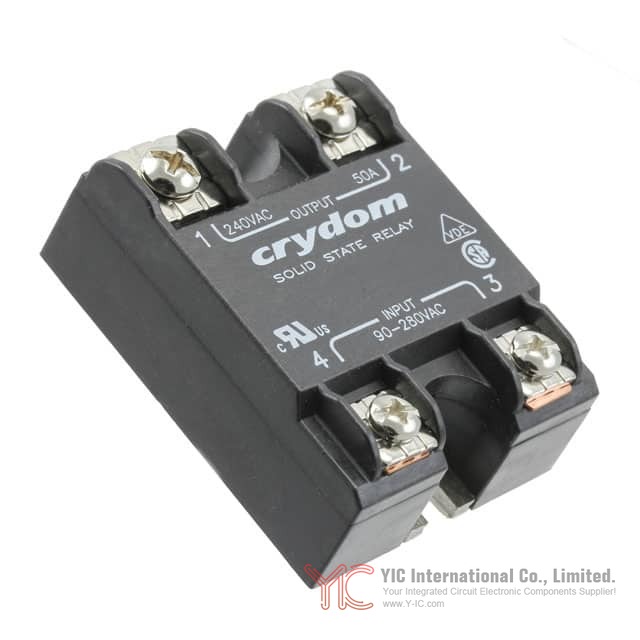

Sensata-Crydom D2450

Mfr. Part

D2450

Manufacturer

Crydom / Sensata Technologies

Y-IC is a trusted, quality distributor of Crydom / Sensata. We deliver genuine products, fast service, and strong technical support to help you pick the right relay and keep your project on schedule.

Detailed Description

Solid State Relay for AC loads. SPST-NO (1 Form A). 50 A continuous load current (with proper heat sink). Load voltage 24–280 VAC. DC control input 3–32 VDC. Zero-cross turn-on for lower EMI and smoother switching. Chassis-mount “hockey puck” module with screw terminals. RoHS compliant. From Crydom’s 1 Series. Bulk packaging. Output type AC, Zero Cross.

Key Features

AC output SSR with zero-cross switching for cleaner turn-on and reduced electrical noise

SPST-NO (1 Form A) circuit for simple on/off control of one AC load

50 A load current rating with correct heat sinking and airflow

Wide load voltage window: 24–280 VAC

Wide control input: 3–32 VDC, compatible with many PLCs and controllers

Chassis/panel mount “hockey puck” form factor

Screw terminals for secure wiring and easy field service

Optical isolation between input and output for safety

RoHS compliant; common safety/agency approvals on series (see datasheet)

Bulk pack option for production lines

Key Advantages

No mechanical contacts: silent operation, long life, and high reliability

Handles high currents up to 50 A for heavy heaters, motors, and industrial loads

Zero-cross reduces inrush on resistive loads and limits EMI

Fast switching and consistent performance vs. electromechanical relays

Simple wiring with four screw terminals; easy to mount to a chassis or heat sink

Wide control input range simplifies interfacing with 5 V, 12 V, and 24 V logic

Robust epoxy-encapsulated construction resists vibration and dust

Strong stock position: 2687 units available for quick shipment from Y-IC

Packaging

Type: Panel/chassis-mount “hockey puck” SSR module

Material: Epoxy-encapsulated body with thermally conductive base; flame-retardant housing; metal base plate for heat transfer

Size: Compact hockey-puck footprint (approx. 58 × 45 × 25 mm class; refer to datasheet for exact mechanical drawing)

Terminals/Pin configuration: 4 screw terminals

- 2 for AC load (L/T) and 2 for DC control (+/-)

- Accept ring/fork lugs; torque specs provided in datasheet

Thermal characteristics: Must be mounted to an appropriate heat sink; use thermal grease or pad; follow derating curves vs. ambient and case temperature; airflow improves performance

Electrical properties (typical of the series; check datasheet for exact values):

- Input control: 3–32 VDC, low input current; LED/optically isolated

- Output: 24–280 VAC, zero-cross turn-on

- On-state voltage drop typically around 1–2 V at rated current

- Off-state leakage typical in mA range due to snubber

- High dv/dt immunity; dielectric isolation in kV range

Lifecycle

Status: Active and widely used; not nearing discontinuation based on current market availability

Equivalent and alternative models:

- Same family, different current ratings (use when your load is lower):

- Crydom D2425 (25 A, 24–280 VAC, zero-cross)

- Crydom D2430 (30 A, 24–280 VAC, zero-cross)

- Crydom D2440 (40 A, 24–280 VAC, zero-cross)

- Same function, random-turn alternative (use when you need switching at any phase angle):

- Crydom D2450R (24–280 VAC, 50 A, random turn-on)

- Cross-brand, close spec alternatives (verify mechanical and electrical fit via datasheets):

- Opto 22 240D50 (24–280 VAC, 50 A, DC input, zero-cross)

- Carlo Gavazzi RM1A48D50 (24–600 VAC, 50 A, DC input, zero-cross)

If you need an exact substitute or different approvals, temperature ratings, or terminal styles, contact our Y-IC sales team via our website for tailored recommendations and the latest availability.

Key Application Areas

Industrial heaters, ovens, furnaces, and heat tracing

HVAC systems: compressors, fans, and electric heating elements

Motor and pump control (with appropriate protections)

Lighting loads and stage equipment (line-voltage AC control)

Packaging, plastics processing, and food equipment

Building automation and energy management

PLC output expansion and machine control panels
