Analog Devices Inc./Maxim Integrated MAX17260BEWL+T

Introduction to MAX17260BEWL+T by Analog Devices

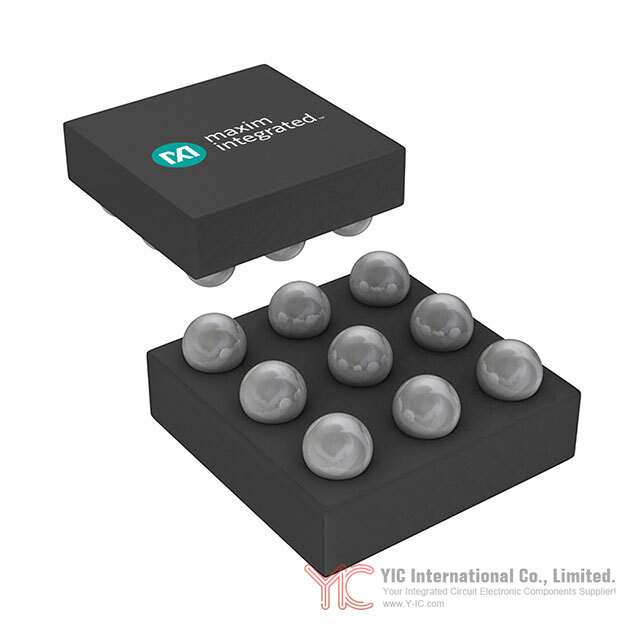

The MAX17260BEWL+T, produced by Analog Devices Inc./Maxim Integrated, is a compact, ultra-low-power battery fuel gauge IC specifically designed for monitoring single-cell lithium-ion batteries. Integrating the advanced ModelGauge™ m5 EZ algorithm, this device simplifies battery management in space- and power-constrained designs such as wearables, tablets, medical devices, handheld terminals, and portable consumer electronics. The MAX17260BEWL+T is available in either a 9-pin WLP (1.47 mm × 1.45 mm) or a 14-pin TDFN (3 mm × 3 mm) package, enabling flexible implementation for modern miniature electronics.

Main attributes and advantages of the MAX17260BEWL+T

One of the most significant advantages of the MAX17260BEWL+T is its ModelGauge m5 EZ approach, which eliminates the need for time-consuming battery characterization, making fuel gauge implementation significantly easier. The device is robust against battery variation—important for procurement engineers managing multiple battery sources—and corrects errors as the battery approaches empty. Operating at an exceptionally low quiescent current of 5.1 μA, it helps extend battery life in always-on designs.

Further, the device supports both high-side and low-side current sensing, accommodates a wide sense resistor range (1 mΩ to 1000 mΩ), and offers trace sensing with temperature compensation. The MAX17260BEWL+T is compatible with various lithium chemistries, including lithium iron phosphate (LiFePO₄), making it a versatile solution for a broad range of product types. Features like dynamic power estimation, accurate time-to-empty/full calculations, and configurable alert indicators for voltage, SOC, current, and temperature enhance both performance and system reliability.

Working mechanism and ModelGauge m5 EZ technology in MAX17260BEWL+T

The core of the MAX17260BEWL+T’s operation is the ModelGauge m5 EZ algorithm, which combines the short-term accuracy of coulomb counting with the long-term stability of voltage-based gauging and temperature compensation. The algorithm includes sophisticated self-learning and error-correction routines to ensure precise reporting of battery state-of-charge (SOC) and capacity (in mAh), and remains resilient to battery aging, discharge rates, and temperature variations.

Unlike classic fuel gauge approaches, which suffer from drift requiring regular calibration, ModelGauge m5 EZ avoids the need for empty, full, or idle states for corrections while maintaining zero error as the battery approaches empty. This algorithm is suitable for most lithium-ion batteries as a plug-and-play solution, although custom models can be provided for specific chemistries (e.g., LiFePO₄ and Panasonic NCR/NCA cells) for further optimization.

Electrical specifications and packaging information for MAX17260BEWL+T

Engineers evaluating the MAX17260BEWL+T for integration should note its broad operating voltage range (2.3 V to 4.9 V) and extended temperature range (-40°C to +85°C), making it viable for challenging environments. The IC’s absolute maximum ratings ensure ruggedness during assembly and operation. Its low current consumption (5.1 μA) is ideal for battery-operated products. The available WLP and TDFN package options provide flexibility for both ultra-compact wearable designs and more conventional layouts demanding robustness.

Register details and setup instructions for the MAX17260BEWL+T

The MAX17260BEWL+T uses a well-structured set of registers accessible via a standard 2-wire I²C interface. Key configuration registers include DesignCap (capacity), VEmpty (empty voltage threshold), and IChgTerm (charge termination current), allowing designers to tune the IC to their battery’s nominal parameters and operating conditions. Alert and configuration registers enable refined control over device behavior, including shutdown timing, alerts, and temperature sensing mode selection (internal or thermistor-based).

For measurement and reporting, output registers like RepCap (remaining capacity), RepSOC (state-of-charge %), TTE (time-to-empty), and TTF (time-to-full) are updated regularly, enabling host software to make real-time battery status decisions. The IC also logs battery charge/discharge cycles and supports power-on-reset, insertion/removal, and 1% SOC change flags for enhanced system awareness.

Measurement functions voltage, current, and temperature sensing in MAX17260BEWL+T

The MAX17260BEWL+T provides high-precision analog measurement of battery voltage (via VCell and AvgVCell registers), current (Current and AvgCurrent registers), and temperature (Temp and AvgTA registers). Maximum and minimum values are maintained to assist with diagnostics and statistics. Temperature can be measured using either the internal sensor or an external NTC thermistor, offering ±1°C accuracy for robust thermal management.

Engineering teams can use these measurements for both battery state monitoring and system fault detection. The device supports a wide range of sense resistor values, optimizing for low or high current applications, and applies temperature compensation to measurements for increased reliability.

Warning features and protection systems in MAX17260BEWL+T

Comprehensive alert mechanisms are integrated into the MAX17260BEWL+T, allowing system-level interrupts based on customizable thresholds for voltage, current, temperature, SOC, and 1% SOC change events. The ALRT pin provides an open-drain output for integration with host CPUs or MCUs.

Alerts are managed via dedicated threshold registers, and can be set to require manual clearing by software, which can be critical in safety-sensitive medical and industrial applications. The device can distinguish between battery insertions/removals and supports detection via the TH pin. These features are vital for designing robust systems that protect users and electronics from battery failures or thermal runaways.

Design and implementation guidelines for the MAX17260BEWL+T

Accurate battery measurement depends on careful PCB layout, especially regarding Kelvin connections for sense resistors and separation of current-sensing and ground traces. The MAX17260BEWL+T provides layout recommendations for both low-side and high-side current sensing. Ensuring minimal loop area for the REG capacitor and avoiding shared or via-heavy Kelvin lines enhances accuracy.

Engineers should also consider the configuration for temperature sensing, voltage reference stability, and minimizing interference in mixed-signal environments. Host software initialization procedures and register settings may further enhance measurement reliability and system responsiveness.

Example application schematics using the MAX17260BEWL+T

Designers can reference recommended circuits for both low-side and high-side current sensing implementations. In typical wearable or handheld scenarios, space constraints may favor trace sensing, while higher power designs benefit from robust sense resistors. Close placement of sensing components and adherence to layout guidelines will maximize accuracy for SOC and charge/discharge calculations.

Alternative or substitute devices for the MAX17260BEWL+T

For engineers and procurement professionals seeking alternatives to the MAX17260BEWL+T, similar battery gauge ICs from Analog Devices/Maxim Integrated may be considered. The broader MAX1726x series encompasses related devices with varying features, package options, and supported chemistries. When direct replacement is required, device selection should be based on package type, pinout compatibility, measurement range, and supported algorithm features. For applications requiring multi-cell monitoring or specialized chemistry support, other Analog Devices/Maxim Integrated fuel gauge ICs should be reviewed in detail.

Conclusion

The MAX17260BEWL+T from Analog Devices offers a proven, feature-rich solution for accurate, ultra-low power battery monitoring in modern portable electronics. Its ModelGauge m5 EZ algorithm, coupled with robust configuration, measurement precision, and comprehensive alerting capabilities, makes it an ideal choice for engineers seeking reliability and ease of integration in battery-powered product designs. By following recommended layout and application guidelines and leveraging flexible register settings, design and procurement teams can ensure successful deployment in a wide array of electronic platforms.
