Analog Devices Inc./Maxim Integrated MAX9636AXT+T

MAX9636AXT+T Analog Devices Inc./Maxim Integrated General Description

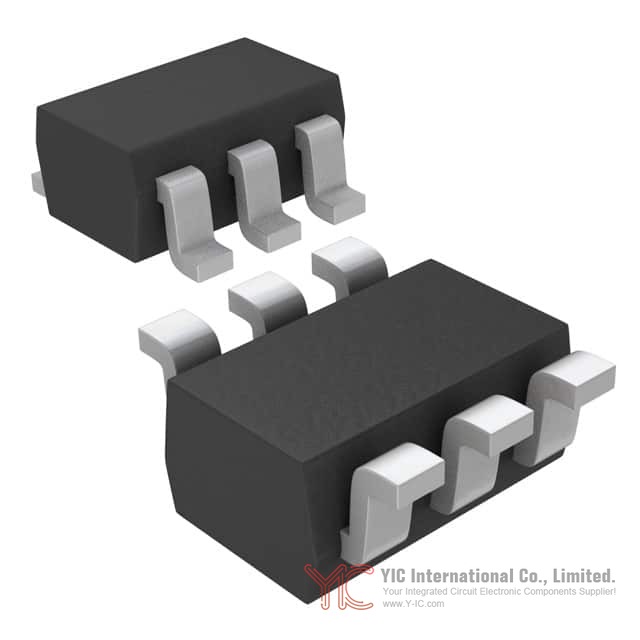

The MAX9636AXT+T from Analog Devices Inc./Maxim Integrated is a general-purpose, single-channel operational amplifier housed in a compact SC-70-6 package. Designed for battery-powered and portable applications, this device delivers precise signal amplification with minimal power consumption. The MAX9636AXT+T is part of the MAX9636/MAX9637/MAX9638 op amp family, which is widely recognized for wide bandwidth at low quiescent current, rail-to-rail I/O, and robust CMOS input stages. Its versatility makes it suitable for engineers seeking reliable analog front ends for sensor interfaces, medical instruments, and consumer electronics.

Main Attributes and Performance Metrics of the MAX9636AXT+T

The MAX9636AXT+T distinguishes itself through several core attributes vital for battery-based and precision circuit designs:

Ultra-low input bias current (typical 0.1pA), ideal for interfacing with high-impedance sensors such as photodiodes and piezoelectric transducers.

Wide bandwidth of 1.5MHz ensures accurate signal processing even in demanding analog front ends.

Exceptionally low input current-noise density (0.9fA/√Hz) and low input voltage noise, supporting high-resolution sensor applications.

Single-supply operation over 2.1V to 5.5V supports both portable and line-powered environments.

Minimal quiescent supply current of 36μA (typical) and shutdown mode reducing current draw to 1μA, maximizing efficiency and battery life.

Package options include space-efficient 6-pin SC70 for single-channel variants and multi-channel options in 8-pin SC70 and 10-pin UTQFN formats.

Electrical Specifications and Thermal Properties of the MAX9636AXT+T

Robust electrical and thermal ratings enable reliable deployment across diverse ambient conditions and use cases. The MAX9636AXT+T operates over an automotive grade temperature range from -40°C to +125°C, with quiescent supply currents precisely defined across this span. Absolute maximum supply voltage is rated at 6V, and all functional parameters are 100% production tested at +25°C. The device’s thermal performance is facilitated by its small package, with a junction-to-ambient thermal resistance (θJA) of 326.5°C/W for the 6-pin SC70, supporting dissipation up to 245mW at +70°C. Short-circuit output supports durations up to 5 seconds under specified loads, and the device can tolerate input currents up to ±20mA without permanent damage.

Operational Insights Input/Output Configuration of the MAX9636AXT+T

At the heart of the MAX9636AXT+T is a rail-to-rail I/O architecture vital for optimizing dynamic range in low-voltage designs.

The input stage features parallel nand p-channel differential inputs, permitting a common-mode voltage range that extends 0.1V beyond the supply rails. This capability supports designs where the input signal approaches or exceeds the headroom limitations of the supply, such as in single-supply sensor signal conditioning.

The output stage provides load-dependent voltage swing, guaranteed within 100mV of the positive rail at up to 3mA sourcing current. Engineers should note the absence of built-in short-circuit protection; for loads under 600Ω, thermal considerations should be validated using the device’s power dissipation ratings.

Input bias current remains exceptionally low across the full operational voltage and temperature range, making the MAX9636AXT+T particularly suited for circuits requiring negligible loading of sensor outputs.

Design Recommendations Utilizing the MAX9636AXT+T

The MAX9636AXT+T lends itself to straightforward integration into signal chains, but a few best practices maximize performance:

Capacitive load driving: In unity-gain applications, the device accommodates up to 300pF pure capacitive loads directly. For larger or mixed capacitive-resistive loads, stability is retained by either introducing a 5Ω-30Ω series isolation resistor or adding a parallel resistor across the load, depending on tolerable output swing reduction and DC error.

High-impedance sensor front-ends: The amplifier can be directly interfaced to current-output sensors (photodiodes in transimpedance configurations) and high-impedance voltage-output sensors (such as piezoelectric elements). High-value feedback resistors enable high transimpedance gain, while feedback capacitors mitigate signal instability from sensor/cable capacitance.

Layout and system integration: To ensure low noise and stability, minimize PCB trace lengths at the input, use guarding to prevent leakage, and segregate analog from digital supply domains. For portable systems, make full use of the shutdown function to extend battery runtime when the amplifier is not needed.

Use Cases for the MAX9636AXT+T

Typical applications for the MAX9636AXT+T demonstrate its strengths in real-world design environments:

Portable medical instruments: Provides low-noise, low-leakage signal amplification in battery-powered pulse oximeters and ECG/EKG preamps.

Piezoelectric transducer amplifiers: Accurately amplifies signals from high-impedance piezo sensors used in industrial or consumer sensing.

Smoke detectors and environmental monitors: Offers stable responses with minimal current draw in continuous monitoring systems.

Battery-powered media players: Serves as analog signal buffer/amplifier in low-power portable audio hardware.

ADC interfacing: Functions advantageously as an analog buffer for medium/high-resolution ADCs (e.g., MAX1286–MAX1289), directly conditioning single or dual-sensor outputs before digital conversion.

Alternative or Substitute Models for the MAX9636AXT+T

Product selection engineers and procurement personnel may consider the following related models for alternative design options or multi-channel expansion:

MAX9637: Dual-channel variant in 8-pin SC70 packaging, suitable for designs needing compact dual op amp functionality.

MAX9638: Dual op amp in a 10-pin UTQFN package, enabling ultra-small footprint dual signal amplification.

For tighter integration or alternative precision amplifier requirements, evaluation of other rail-to-rail CMOS op amps from the Analog Devices Inc./Maxim Integrated catalog may provide additional flexibility. When selecting replacement devices, review differences in input bias current, package size, supply voltage range, and shutdown implementation to ensure optimal topology fit.

Conclusion

: evaluating the MAX9636AXT+T for precision low-power designs

The MAX9636AXT+T from Analog Devices Inc./Maxim Integrated provides engineers with a small, highly efficient, and technically robust op amp specifically developed for sensor front ends and precision analog signal paths in battery-powered equipment. Its unique combination of ultra-low bias current, wide bandwidth, and rail-to-rail I/O makes it a class-leading solution for integrating high-impedance sensors and supporting next-generation portable and medical products. For engineers prioritizing power efficiency, ruggedness, and analog fidelity, the MAX9636AXT+T merits serious consideration in both new designs and system upgrades.
