Analog Devices Inc./Maxim Integrated MAX31820MCR+

MAX31820MCR+ 1-Wire Ambient Temperature Sensor Product Summary

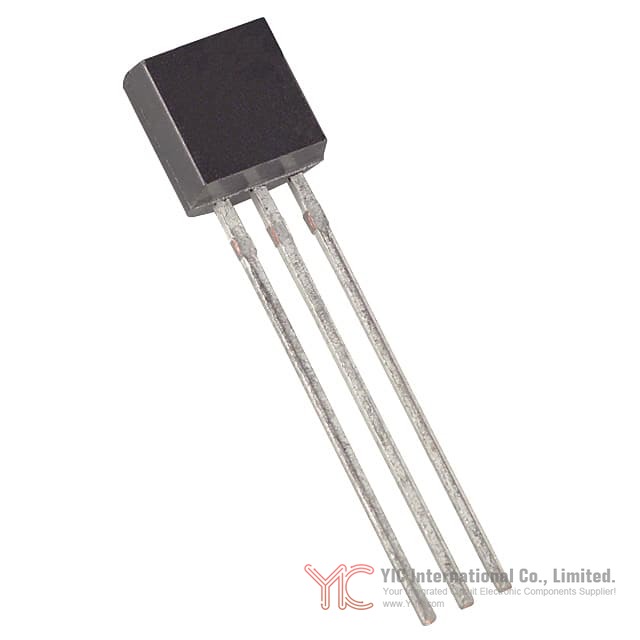

The MAX31820MCR+ from Analog Devices Inc./Maxim Integrated is a digital ambient temperature sensor designed to deliver accurate and reliable temperature measurement over a wide range of industrial, commercial, and residential applications. Packaged in a compact 3-pin TO-92 form factor, it is engineered to measure ambient environments rather than just circuit board temperature, making it particularly suitable for HVAC systems, thermostatic controls, industrial monitoring, and consumer electronics. Operating across an extended range from -55°C to +125°C, this sensor meets the needs of engineers seeking both performance and footprint efficiency in temperature monitoring solutions.

Core Attributes and Benefits of the MAX31820MCR+

The MAX31820MCR+ distinguishes itself through its unique single-wire digital interface and multidrop capability. Leveraging the 1-Wire® protocol, the sensor requires just one data line (plus ground) for both communication and, optionally, power via “parasite power.” The device offers a selectable resolution of 9 to 12 bits, providing up to ±0.5°C accuracy between +10°C and +45°C and ±2°C across its entire rated temperature range. Integrated nonvolatile memory allows configuration and alarm thresholds to be power-cycle persistent, and each device integrates a factory-programmed 64-bit serial code to simplify deployment in multidrop bus systems. Its compact TO-92 package is specifically suited to ambient, in-air temperature sensing, enabling improved measurement accuracy for free-air scenarios compared to surface-mount packages.

Operating Concepts and Temperature Measurement Methods with the MAX31820MCR+

The MAX31820MCR+ is tailored for accurate ambient temperature measurement. Unlike surface-mount sensors, which inherently report board temperature due to strong thermal coupling, the TO-92 package’s exposed leads allow for direct air temperature monitoring. Proper installation is essential: engineers should place the sensor within airflow (if present) and away from board heat sources. Minimizing adjacent copper traces further reduces board conduction effects. Upon command, the sensor digitizes temperature and writes the result to internal memory, with resolution adjusted to match application requirements. The data, calibrated in Celsius, is made available as a 16-bit, sign-extended two’s complement value, affording seamless digital integration.

Electrical Specifications and System Design Considerations for the MAX31820MCR+

Operating from a supply voltage of 3.0V to 3.7V (when externally powered), the MAX31820MCR+ supports both direct-pin power and parasite power modes. Absolute maximum voltage ratings span -0.5V to +6.0V, with operational limits enforced from -55°C to +125°C on both supply and storage. Powering via the data line (“parasite power”) facilitates minimalist installs in space-constrained or distributed remote systems. Engineers must account for system timing and bus voltage margins, particularly when multiple devices share a common bus. The design supports alarm flagging for temperature excursions, with programmable nonvolatile thresholds, and its thermal conversion time can reach 750ms at maximum 12-bit resolution.

1-Wire Data Communication Protocol and its Application in the MAX31820MCR+

At the core of the MAX31820MCR+ system integration is the 1-Wire protocol, a scheme enabling both power and data over a single line. Communication begins with master-driven initialization, including reset and presence pulses, and employs ROM-level commands to identify and address individual devices using unique 64-bit codes. Function commands such as temperature conversion, memory writes, and alarm searches are performed via meticulously timed command sequences. The protocol supports both single-drop and multidrop (multiple device) configurations, vital for sensor networks and distributed measurement setups. Proper selection of pull-up resistors (typically 5kΩ) and careful timing is essential to reliable operation.

Memory Structure and Ensuring Data Reliability in the MAX31820MCR+

The MAX31820MCR+ incorporates a dual-memory architecture: a scratchpad (SRAM) and EEPROM. The scratchpad enables transient data handling—such as recent temperature, alarm settings, and configuration—while the EEPROM secures critical configuration through power cycles. Memory operations are protected by a Cyclic Redundancy Check (CRC), supporting error detection and communication reliability. Dedicated function commands provide controlled read/write access and explicit memory transfer (e.g., Copy Scratchpad, Recall EEPROM) to manage persistent alarm settings and conversion resolutions.

Settings and Adjustable Resolution Options for the MAX31820MCR+

A hallmark of the MAX31820MCR+ is its user-configurable thermometer resolution. The configuration register, accessible via the 1-Wire interface, sets resolution from 9 to 12 bits, corresponding to digital steps from 0.5°C to 0.0625°C, allowing users to balance conversion speed and measurement granularity. Nonvolatile storage ensures that preferred settings persist across reboots, and system designers can optimize resolution for both response time and accuracy to match application constraints—be it rapid polling in thermostatic controls or fine-tuned measurement in process monitoring.

Available Power Schemes and Limitations for the MAX31820MCR+

The MAX31820MCR+ provides two primary operating modes: external power (VDD pin) and “parasite power” from the data line. Parasite power is invaluable in remote or distributed applications where separate power wiring is impractical. However, it demands tight control of bus timing and requires a strong pull-up during high-current operations (e.g., temperature conversion, EEPROM writes), typically provided by a MOSFET controlled via the master processor. For temperatures above +100°C, Analog Devices recommends external power due to increased device leakage. The device actively reports its power mode to the master, facilitating system-level coordination for robust measurement cycles.

System Integration Approaches and Use Cases for the MAX31820MCR+

Engineers have successfully deployed the MAX31820MCR+ in diverse scenarios such as HVAC environmental controls, temperature monitoring within machinery, industrial process tracking, and consumer products. Its multidrop capability, based on unique serial codes, enables precise mapping and management of large-area sensor networks with a single host processor. In distributed systems, the alarm threshold mechanism allows pinpoint alarming and efficient scanning for out-of-bounds conditions. Engineers should use recommended board layout and positioning guidelines to maximize ambient measurement fidelity and avoid error due to conductive heating effects from surrounding components.

Compatible Alternative/Replacement Devices for the MAX31820MCR+

In context of product selection or system redesign, engineers may consider devices with form, fit, and function parity to the MAX31820MCR+. The MAX31820MCR+ is software-compatible with Maxim’s DS18B20 and DS1822 digital temperature sensors, which also employ the 1-Wire interface and share similar electrical characteristics, operational modes, and programming models. The DS18B20, in particular, is a widely used alternative offering comparable accuracy and multidrop bus capability in both TO-92 and other package options. When selecting replacements, careful verification of operational voltage ranges, temperature accuracy, alarm functions, and ROM code architecture is advised.

Conclusion

The MAX31820MCR+ 1-Wire ambient temperature sensor delivers high levels of integration, measurement accuracy, and interface simplification. Its unique blend of multidrop 1-Wire communication, parasite power mode, and flexible configuration make it an optimal solution for distributed temperature monitoring tasks spanning industrial, commercial, and consumer applications. By understanding its principle of operation, powering strategies, memory architecture, and equivalent model landscape, product selection engineers and procurement professionals can make well-informed decisions for both new designs and legacy system upgrades.
