Analog Devices Inc./Maxim Integrated MAX17055EWL+T

Introduction to the MAX17055EWL+T Battery Fuel Gauge IC

The MAX17055EWL+T by Analog Devices Inc./Maxim Integrated is a dedicated battery fuel gauge IC designed for single-cell lithium-ion and lithium-polymer applications. The device leverages the proprietary ModelGauge m5 EZ algorithm to provide precision state-of-charge (SOC) and remaining capacity estimates, all while operating on an industry-leading low current draw of just 7 μA. Housed in an ultra-compact 9-ball wafer-level package (WLP), the MAX17055EWL+T offers a highly integrated solution for applications requiring minimal board area, including wearables, medical devices, smartphones, and other portable electronics.

Principal Advantages and Features of the MAX17055EWL+T

The MAX17055EWL+T is purpose-built to simplify integration and improve accuracy across a wide range of lithium-based chemistries. The ModelGauge m5 EZ algorithm eliminates the traditional requirement for battery characterization, streamlining system development and deployment. Notable features include:

Ultra-low operating current (7 μA), maximizing battery life.

Compatibility with a wide range of lithium chemistries, including Li-ion, Li-polymer, and LiFePO4 (with optional customization).

Comprehensive analog measurement of voltage, current, and temperature, using either an internal sensor or an external thermistor.

No need for empty, full, or idle system states for learning: the algorithm automatically accounts for cell aging, temperature effects, and performance drift.

Plug-and-play operation in most applications, with robust performance even under battery diversity.

Dynamic estimation of time-to-empty and time-to-full, plus active reporting on available energy under real-world load conditions.

Flexible alert system for monitoring voltage, SOC, temperature, and current, with open-drain interrupt output for rapid host response.

The MAX17055EWL+T supports both traditional sense resistor configurations (1mΩ–1000mΩ) and PCB trace metal sensing, further enhancing layout flexibility.

ModelGauge m5 EZ Algorithm Usage in the MAX17055EWL+T

At the heart of the MAX17055EWL+T sits the advanced ModelGauge m5 EZ algorithm. Unlike conventional coulomb counters that require periodic full or empty learning cycles and can suffer from cumulative measurement drift, the ModelGauge m5 EZ merges a high-accuracy coulomb counter for short-term precision with a voltage-based fuel gauge for long-term stability. This fusion allows the SO C estimation to remain highly accurate over time, even as the battery ages or usage conditions fluctuate.

The algorithm adapts continually to cell characteristics, providing three distinct metrics for battery health: reduction in capacity, increase in internal resistance, and total cycle count. For design teams, this means real-time battery aging insight without complex monitoring routines or host firmware adjustments. The EZ variant of the algorithm suits most standard cell types with only basic configuration—cell capacity, empty voltage, and charge termination current—minimizing integration effort.

Operational Overview and Use Cases of the MAX17055EWL+T

Integration flexibility is a hallmark of the MAX17055EWL+T. Typical use cases include both removable and captive battery systems. In removable applications, temperature may be monitored via an external thermistor, while captive designs often rely on the internal sensor to conserve space and eliminate BOM components. The IC supports standard I2C communication, making it readily accessible to host MCUs for data and control.

Use of an external current sense resistor between CSP and CSN ensures accurate current flow measurement; the device’s wide supported sense resistor range aids in matching targeted measurement resolution and voltage drop to application requirements. For highly miniaturized equipment, the PCB metal sensing capability enables current measurement directly through traces, further saving space.

Device applications span an array of sectors:

Consumer: Wearables, smartphones, tablets, wireless headsets, portable gaming consoles.

Medical: Patient monitors, handheld diagnostics.

Industrial and Commercial: Portable terminals, building automation, sensors, wireless speakers, and toys.

Electrical Performance and Measurement Functions of the MAX17055EWL+T

The MAX17055EWL+T operates from 2.3V to 4.9V, well covering the range of most single-cell lithium batteries. It accurately measures battery voltage between BATT and CSP pins and current across CSP and CSN pins, while temperature can be tracked with up to ±1°C accuracy using either method of temperature input.

All critical measured values (voltage, current, temperature) are accessible via dedicated registers, and the device maintains running records of maximum/minimum and average values for each parameter. Combined with dynamic capacity and time calculation registers (RepCap, RepSOC, TTE, TTF), system firmware can directly access key battery health and status metrics for user reporting or advanced energy management.

Setup and Personalization Choices for the MAX17055EWL+T

To facilitate deployment across diverse product lines, the MAX17055EWL+T exposes several key configuration registers. Essential configuration parameters include:

DesignCap: Sets nominal battery capacity for SOC calculations.

VEmpty: Defines the voltage threshold considered as “empty” for shutdown or system notification.

IChgTerm: Configures the charge termination current for end-of-charge determination.

For more specialized battery chemistries—such as LiFePO₄ or certain Panasonic NCR types—the device supports customized cell models set via the ModelCFG register, but plug-and-play EZ operation remains effective for most standard cells.

Operational control and flexible feature enablement are available via Config and Config2 registers, affecting everything from alert response behaviors to temperature sensing modes and system shutdown sequencing. Fine-tuning is thus possible to address specific product requirements or to optimize for particular deployment environments.

Notifications, Status Indicators, and Monitoring Capabilities of the MAX17055EWL+T

The MAX17055EWL+T provides sophisticated monitoring and host notification capabilities. Programmable alert thresholds for voltage, current, SOC, and temperature enable the system to preemptively react to out-of-bounds or fault conditions. Alerts are communicated via an open-drain ALRT pin, configurable for both automatic and host-cleared behavior. Specialized alerts for battery insertion/removal are especially valuable in host-side applications with removable packs.

In addition, the status register consolidates operational flags for alert conditions and battery presence events, along with automatic SOC change notifications. This seamless integration simplifies host polling routines and amplifies system reliability in critical battery-powered applications.

PCB Design Guidelines for the MAX17055EWL+T

For precision measurement ICs such as the MAX17055EWL+T, PCB layout quality directly impacts performance. Kelvin connections should be used for the sense resistor (CSP/CSN), with unshared traces and minimized loop areas for regulated supply capacitors. Vias on these critical sense lines should be avoided to ensure measurement fidelity. For the TDFN version, the exposed pad (EP) is to be directly bonded to CSP, offering the best noise immunity and thermal performance.

Other grounds and routine digital or analog signals operate without special layout requirements. Careful attention to the device’s layout guidelines ensures optimal current, voltage, and temperature sensing, which translates into reliable capacity and lifetime estimation in real-world operation.

Packaging Details for the MAX17055EWL+T

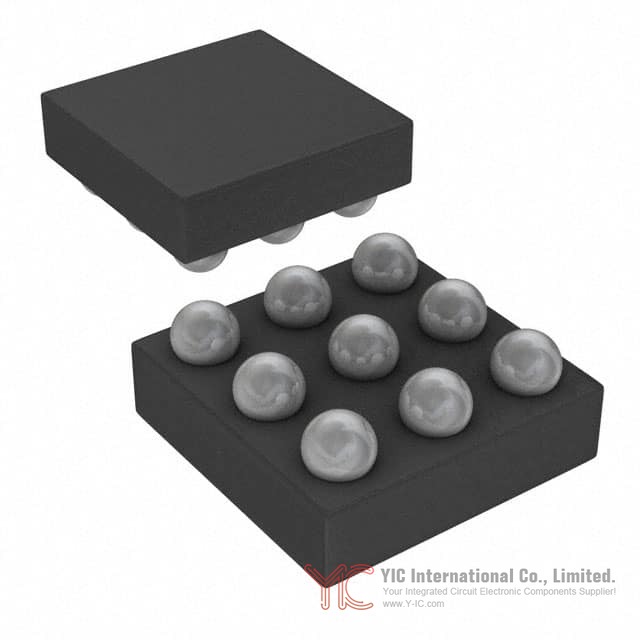

The MAX17055EWL+T is provided in a compact 9-bump WLP package (1.4mm x 1.5mm, 0.4mm pitch), ideally suited for high-density mobile and wearable applications. For designs accommodating slightly larger footprints, a 10-pin TDFN (2.0mm x 2.5mm) is also available, supporting the same feature set with easy board assembly. Both options are fully lead-free and RoHS compliant.

Alternative or Substitute ICs for the MAX17055EWL+T

Selecting an alternative for the MAX17055EWL+T requires ensuring fit to both application voltage range, current draw, measurement precision, and host interface. Notable considerations from the Analog Devices Inc./Maxim Integrated portfolio could include earlier ModelGauge generations (such as MAX17201), or the MAX17048 for lower-cost, basic SOC needs. However, few alternatives match the combination of plug-and-play operation, ultra-low operating current, and advanced algorithmic features delivered by the MAX17055EWL+T—especially for compact, battery-critical electronics. When considering alternatives, pay close attention to battery chemistry support, need for characterization, and required package footprint.

Conclusion

The MAX17055EWL+T from Analog Devices Inc./Maxim Integrated represents a best-in-class solution for engineers and procurement professionals seeking compact, highly accurate, and power-efficient battery fuel gauging in demanding portable applications. Its robust ModelGauge m5 EZ algorithm, ease of configuration, and comprehensive measurement capabilities make the MAX17055EWL+T a standout device for modern product platforms where user experience, reliability, and lifetime management are paramount. By adhering to recommended layout practices and leveraging the IC’s flexible configuration, designers can maximize performance and minimize development risk. For applications where precise and maintenance-free battery gauging is critical, the MAX17055EWL+T is a compelling contender.
