Analog Devices Inc./Maxim Integrated MAX17043G+T

MAX17043G+T Battery Monitor Summary

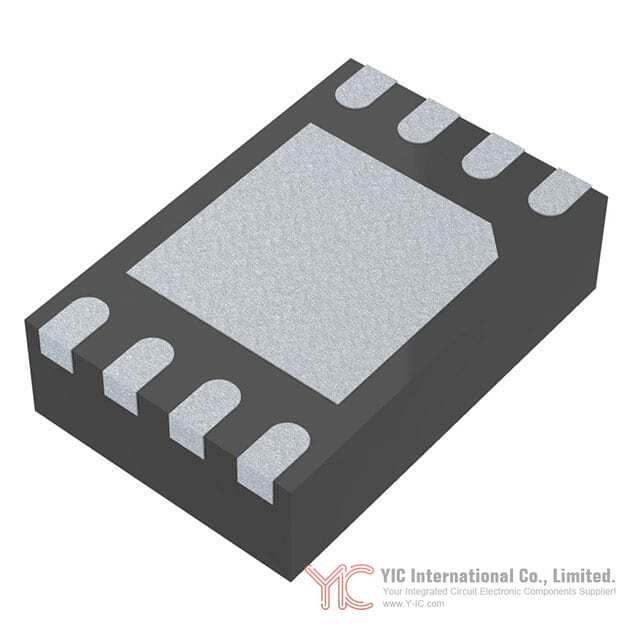

The MAX17043G+T, designed by Analog Devices Inc./Maxim Integrated, offers a streamlined and highly integrated solution for single-cell lithium-ion/polymer battery monitoring. Housed in an ultra-compact, lead-free 8-TDFN package (2mm x 3mm) and specified for an operating temperature range of -20°C to +70°C, this IC addresses the technical challenges of accurate fuel gauging in modern handheld and portable electronics. Integrating proprietary ModelGauge technology, the MAX17043G+T eliminates the traditional requirement for external current-sense resistors and battery relearn cycles, thereby simplifying the design and lowering system cost.

Main Functions and ModelGauge Technology of MAX17043G+T

At the heart of the MAX17043G+T's performance lies the ModelGauge algorithm, which tracks the battery's relative state-of-charge (SOC) in real time. Unlike classical coulomb counters, which utilize current measurement and suffer from accuracy drift or require periodic calibration, the ModelGauge approach models the intrinsic non-linear behavior and chemical dynamics of lithium-ion batteries. This enables continuous SOC tracking—regardless of charge/discharge profiles—without offset accumulation or divergence over time.

Key integrated features include:

Precision voltage measurement with ±12.5 mV accuracy up to 5.00V input.

Accurate SOC calculation adaptable to battery age, chemistry variants, and temperature changes.

No requirement for a sense resistor, reducing board real estate and simplifying PCB routing.

External alarm/interrupt signaling via an active-low ALRT pin for low battery warning, interfacing directly to host microprocessors.

Industry-standard 2-wire I2C communication for simple system integration.

Tiny form factor available as both 8-TDFN and 9-bump UCSP lead-free options.

MAX17043G+T Electrical Specifications and Usage Requirements

The MAX17043G+T operates from a supply voltage range of 2.5 V to 4.5 V, optimized for single lithium-ion cell applications. Typical active current is 50–75 μA, while sleep-mode current drops to 0.5–1.0 μA, supporting long battery life and minimal impact on energy budgets in ultra-low-power applications.

Measurement accuracy is maintained across both supply voltage and temperature ranges, with voltage measurement errors held to ±12.5 mV at room temperature (+25°C) and SOC calculation errors limited over normal operating conditions. Input impedance at the battery voltage sense pin (CELL) is typically 15 MΩ, ensuring negligible load on the cell being monitored.

The MAX17043G+T meets stringent environmental compliance standards, being RoHS3-compliant and unaffected by REACH regulations, thereby facilitating its use within global manufacturing and regulatory frameworks.

Connection Methods, Pin Layout, and Integration Options for MAX17043G+T

Integration within electronic systems is straightforward with the MAX17043G+T. The 8-TDFN form factor utilizes clearly defined pins: SDA (Serial Data), SCL (Serial Clock), QSTRT (Quick Start), ALRT (Alert), CELL (Battery Voltage Input), VDD (Power Supply), GND (System Ground), and CTG (connects to ground). The exposed pad (EP) is recommended to be tied to GND for thermal performance.

The battery voltage is sensed via the CELL pin, and all communications and controls are managed over a 2-wire I2C interface (SDA/SCL). Quick Start and Alert functions provide hardware hooks for rapid fuel gauge reset and low-battery interrupt generation, respectively. System designers benefit from reduced external component count, with only a decoupling capacitor (10 nF) required at VDD for stable operation.

Operating States and Register Roles in MAX17043G+T IC

Upon initial power-up or battery insertion, the MAX17043G+T assumes the cell has been in a relaxed state, making a best 'first guess' of SOC based on immediate voltage measurement. The ModelGauge mechanism adapts quickly, correcting any initial estimation error naturally over time and usage cycles.

Sleep mode is supported for further power savings—holding both SDA and SCL lines low for over 2.5 seconds transitions the device into low-current operation, halting fuel gauge activity. The device resumes its previous state upon waking, maintaining continuity in SOC tracking.

The MAX17043G+T manages all system and battery tracking via six internal 16-bit registers:

VCELL: Captures the instantaneous battery voltage measurement.

SOC: Records the percent-based state-of-charge as calculated by ModelGauge.

MODE: Accepts special command writes (e.g., Quick Start) to control IC behavior.

VERSION: Reveals production variant information.

CONFIG: Allows for application-specific algorithm compensation and interrupt control.

COMMAND: Performs full device resets.

The Alert function triggers a logic-low output at ALRT whenever SOC falls below the user-set threshold, keeping system controllers actively informed of critical battery conditions.

Use Cases for the MAX17043G+T Battery Fuel Gauge

Engineers selecting the MAX17043G+T will find its suitability across numerous modern portable systems. Typical application scenarios include:

Smartphones and tablets, demanding compactness, low power draw, and precise battery management.

Health and fitness wearables, medical devices, and handheld terminals, where form factor and long battery life are paramount.

Digital cameras and wireless audio products, with high reliability and uninterrupted operation critical to user experience.

Engineers can place the MAX17043G+T on the system side, freeing battery pack selection from strict fuel gauge PCB integration, thus offering flexibility in supply chain management and field upgradeability.

Alternative or Compatible Models to MAX17043G+T

For alternate design requirements or multi-cell packs, engineers might consider the following related models:

MAX17044 series: Functionally similar to MAX17043G+T but tailored for two-cell (2S) lithium battery systems, offering voltage measurement up to 10 V and ±30 mV accuracy.

MAX17043 variants (MAX17043G+U, MAX17043X+): These offer different packaging options (UCSP and TDFN) for compatibility with varied board assembly requirements.

Other Maxim Integrated ModelGauge fuel gauges: For higher cell count or extended features, review the current-family documentation for selection guidance.

When evaluating potential substitutes, carefully match voltage ranges, cell count support, packaging, and supply voltage to the specific system requirements.

Conclusion

The Analog Devices/Maxim Integrated MAX17043G+T stands out as a purpose-built, highly integrated fuel gauge IC for single-cell lithium-ion/polymer battery applications. Leveraging the ModelGauge algorithm, it ensures reliable SOC estimation, ease of integration, and lasting accuracy without the operational overhead of classical coulomb counting approaches. For product selection engineers and procurement professionals, the MAX17043G+T delivers a compelling combination of precision, low power, and engineering simplicity for next-generation portable and wearable electronic designs.
