Introduction to DS2401Z Silicon Serial Number by Analog Devices/Maxim Integrated

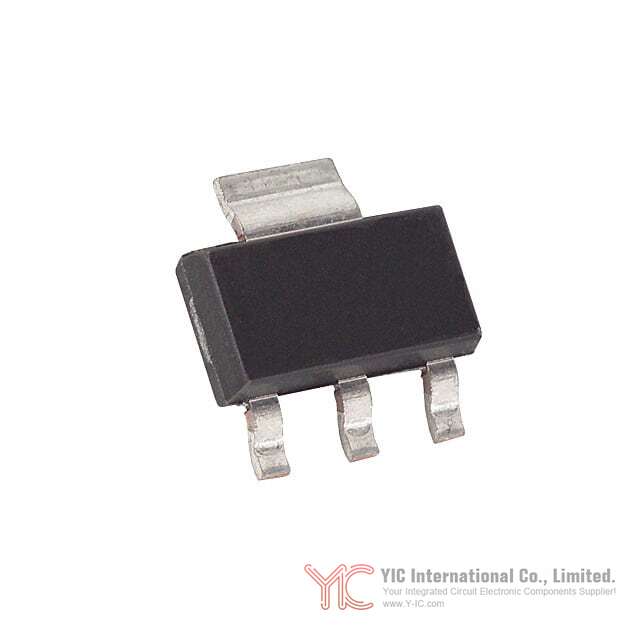

The DS2401Z, manufactured by Analog Devices Inc./Maxim Integrated, represents a robust, dedicated solution for applications where absolute device traceability and secure electronic identification are paramount. Packaged in a compact SOT-223-3 enclosure, the DS2401Z is part of the well-established DS2401 family of silicon serial number integrated circuits and is specifically engineered to provide a guaranteed unique, factory-programmed 64-bit ID in a low-cost and versatile form factor.

Practical Applications and Typical Use Cases of DS2401Z

Engineers and procurement specialists typically specify the DS2401Z in scenarios requiring tamper-proof identification and registration in electronic systems. Typical use cases include printed circuit board (PCB) identification for asset management, unique network node ID assignment in distributed or redundant control systems, and registration of industrial equipment, particularly in environments where non-replicable device serialization supports inventory management, anti-counterfeiting controls, or warranty validation. The DS2401Z’s reliable operation across an extended industrial temperature range and minimal external component requirements make it a compelling choice for such traceability and authentication tasks.

Design and Operational Principles of DS2401Z

At the core of the DS2401Z is a one-time-programmed, non-volatile 64-bit ROM. This ROM structure comprises an 8-bit family code, a unique, unalterable 48-bit serial number, and an 8-bit CRC for error detection. The device is accessed via a minimalist serial communication interface—requiring just a single data pin and ground—thanks to its implementation of the Maxim Integrated 1-Wire protocol. Notably, the DS2401Z draws operating power parasitically from the data line itself, eliminating the need for separate supply rails and supporting “zero standby” power consumption. An integrated multidrop controller allows multiple DS2401-based devices to coexist robustly on a single 1-Wire network, each maintaining unique identification for selective interrogation by the bus master.

1-Wire Protocol Communication and DS2401Z’s Integration

The DS2401Z relies on the 1-Wire bus standard, a cost-effective protocol where all data, control, and power are delivered over a single wire plus ground. In a typical system, a microcontroller serves as the bus controller, interfacing with one or multiple DS2401Z peripherals. The protocol hinges on distinct signaling conventions, including a reset and presence pulse sequence for device initialization, bit-wise read and write slots, and strict timing to ensure robustness even with multidrop bus architectures. DS2401Z’s open-drain output configuration enables seamless multipoint connections. The READ ROM command (opcode 33h/0Fh) retrieves the device’s family code, serial number, and checksum, with error detection supported by an in-protocol 8-bit CRC. Importantly, the DS2401Z remains backward compatible with the legacy DS2400 for command interpretation but introduces improved multidrop capabilities, making it suitable for evolving system topologies.

Electrical Specifications and Physical Attributes of DS2401Z

With a voltage operating range of 2.8V to 6.0V, the DS2401Z is designed for both modern and legacy system compatibility. Its industrial-grade specifications ensure reliable operation from -40°C to +85°C, accommodating demanding deployment environments. The device is characterized by zero standby power, ideal for battery-powered or low-power applications. Electro-mechanical considerations include strict adherence to recommended pullup resistor values on the data line (typically 1.5kΩ to 5kΩ for DS2401Z) to guarantee correct signal timing across varied bus lengths and loads. The part’s ESD tolerance and soldering profiles are consistent with surface-mount manufacturing standards, supporting high-volume PCB assembly.

Available Packaging Types for DS2401Z

The DS2401Z is available in several compact package types suitable for automated board assembly, including SOT-223-3, TO-92, and TSOC. The SOT-223-3 version specifically enables dense surface-mount designs, while TO-92 caters to through-hole requirements. These packages facilitate integration in both new and established product lines, accommodating a wide array of board layouts and assembly processes.

DS2401Z Customization Options

For large-scale or proprietary applications where a segment of the serial number must carry embedded customer or application-specific information, Analog Devices offers a customization option for the DS2401 family. Up to 12 bits of the 48-bit serial number field can be dedicated for customer ID, with sequential assignment and fixed increments ensuring uniqueness and traceability within defined production runs. Interested customers should consult their Analog Devices representative to discuss specific requirements and volume commitments, keeping in mind that customization is subject to certain order and procedural conditions.

Alternative or Substitute Models for DS2401Z

When considering backward compatibility or alternatives for the DS2401Z, engineers should evaluate the DS2400 family predecessor, particularly in legacy applications not requiring multidrop bus support. For enhanced feature sets or different physical formats, related 1-Wire products such as the DS2401A (noting the difference in command support and electrical characteristics) or other Maxim Integrated identification ICs may be assessed, always ensuring compatibility with system-level bus drivers, pullup resistors, and protocols. However, it is crucial to review the specific communication, package, and electrical parameters of candidate devices to ensure seamless drop-in replacement, especially regarding bus speed limits, ROM command support, and supported voltage/temperature ranges.

Conclusion

: Selecting DS2401Z for robust, cost-effective serial identification

The DS2401Z from Analog Devices/Maxim Integrated stands out as a proven, cost-effective IC for guaranteed unique device identification, supporting versatile 1-Wire bus architectures and robust operation in industrial settings. Its minimalist design simplifies system integration without compromising traceability or future scalability, making it a go-to choice for engineers and procurement professionals seeking reliable, scalable serialization solutions for PCBs, network nodes, and registered equipment. By understanding its operation, electrical nuances, and customization options, decision-makers can ensure optimal product selection for their electronic identification objectives.
