Analog Devices Inc./Maxim Integrated DS1230Y-200IND

DS1230Y-200IND+ Nonvolatile SRAM Product Summary

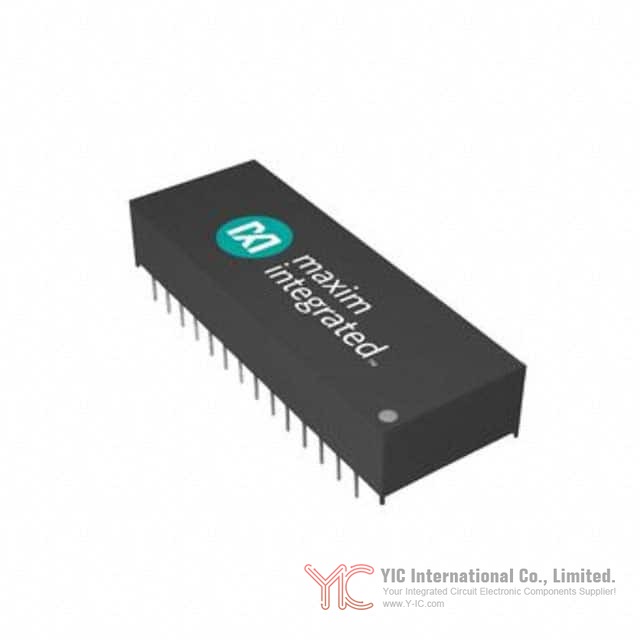

The DS1230Y-200IND+ from Analog Devices Inc./Maxim Integrated is a 256Kbit (32K x 8) parallel Nonvolatile SRAM (NVSRAM) built to withstand industrial-grade environments and guarantee reliable memory retention. Available in a JEDEC standard 28-pin DIP package, this IC combines fast, SRAM-like read/write performance with nonvolatile data retention enabled by an integrated lithium energy source. It is specifically designed to replace standard volatile 32K x 8 SRAM, EEPROM, or Flash devices, facilitating straightforward drop-in upgrades where zero data loss and robust longevity are required.

Main Attributes and Technical Benefits of the DS1230Y-200IND+

The DS1230Y-200IND+ is engineered to preserve memory integrity in mission-critical electronic systems. Key features include:

A guaranteed minimum of 10 years of data retention without external power, supported by an integrated, disconnectable lithium battery.

Instantaneous write protection and power switching on supply voltage drop, ensuring automatic safeguarding of stored data during unexpected outages.

Unlimited write cycles, as opposed to typical EEPROM or Flash alternatives that have limited endurance, making it highly suitable for applications needing frequent data logging or updates.

70ns fast access times, positioning the DS1230Y-200IND+ alongside traditional SRAMs in speed-sensitive designs.

Low-power CMOS operation, optimizing battery and system energy efficiency.

Compatibility with the full ±10% VCC operating range, accommodating power supply variations common in demanding environments.

Compliance with the industrial temperature range specification (-40°C to +85°C), making it reliable for harsh environments such as factory automation and outdoor installations.

A “freshness seal” mechanism, where the lithium energy source remains disconnected until first use, extending battery longevity in storage and logistics.

Operational Principles of the DS1230Y-200IND+ NVSRAM

The DS1230Y-200IND+ operates as a fully static RAM with seamless nonvolatile backup. Its parallel interface uses 15 address lines (A0–A14) and 8 data lines, supporting random access to each byte.

Read cycles occur when the Write Enable (WE) pin is inactive, and both Chip Enable (CE) and Output Enable (OE) are active. The device delivers valid data within a defined access time after address stabilization.

Write cycles are initiated when both CE and WE are active (low), enabling new data to be written to a selected memory location. To avoid bus contention and ensure proper operation, OE should be kept inactive during writes.

Sophisticated power management circuitry continuously monitors VCC; on power loss or brownout, the chip instantly switches to the internal battery and locks out writes, preventing corruption. As VCC recovers, control circuitry restores normal operation, ensuring stored data persists unaltered.

Electrical Specifications and Reliability Data for DS1230Y-200IND+

The DS1230Y-200IND+ is designed for robust reliability and is UL recognized (file E99151). It operates within the VCC range of 4.5V to 5.5V, with write protection becoming active if VCC falls below 4.25V. Below approximately 3.0V, the backup lithium cell seamlessly powers the device.

The IC supports industry-standard AC and DC characteristics across the entire industrial temperature window. Its CMOS output stage, power-down modes, and low input leakage contribute to long-term operational stability, critical for embedded controllers, industrial PLCs, and similar devices.

Packaging Variants and Design Integration Solutions for DS1230Y-200IND+

To address diverse mechanical and manufacturing preferences, the DS1230Y-200IND+ is offered in the following packaging:

28-pin Encapsulated DIP: Integrates SRAM, lithium battery, and control logic in a single through-hole package, compatible with sockets and PCBs designed for standard SRAM or 28256 EEPROMs.

34-pin PowerCap Module (PCM): Designed for surface-mount applications, decoupling the soldering process from the lithium battery attachment. The PCM base is first reflow soldered, followed by a snap-on DS9034PC PowerCap containing the battery backup, preventing battery exposure to high-temperature profiles.

This flexibility simplifies replacement in legacy hardware and facilitates integration into new designs—both for traditional socketed boards and modern SMT assembly.

Common Engineering Uses for the DS1230Y-200IND+ Device

The DS1230Y-200IND+ NVSRAM is suitable for embedded applications where nonvolatile data persistence and rapid access speeds are crucial, including:

Industrial control systems and PLCs: Retaining critical machine parameters and event logs through frequent power cycling and outages.

Data acquisition and logging: Maintaining calibration values, configuration settings, and event histories even after a total loss of power.

Telecommunication and networking gear: Storing system configuration and routing tables requiring instant, unlimited updates.

Medical and laboratory instrumentation: Preserving patient or calibration data between sessions without introducing write-cycle limitations.

Security and access control: Maintaining credential storage or event logs that are resistant to tampering via power removal.

Alternative or Substitute Models for DS1230Y-200IND+

When selecting or replacing the DS1230Y-200IND+, engineers can consider devices that share compatible pinouts, capacities, and functional profiles. Some candidates include:

Other speed or temperature grade variants within the DS1230Y or DS1230AB series (e.g., DS1230Y-70IND+, DS1230Y-150IND+), which offer different read/write access times and VCC tolerances.

28256 or compatible EEPROMs/Flash modules—note that these alternatives may not provide the same unlimited write cycles and speed but offer nonvolatile storage in a similar footprint.

NVSRAM products from other manufacturers with 32K x 8 organization, JEDEC-standard 28-DIP packaging, and lithium or capacitor backup features.

DS1225Y Nonvolatile SRAM, which provides comparable organization, interface, and battery-backed data retention.

It is crucial to carefully verify pin compatibility, operating voltage margin, timing parameters, and battery management strategy when qualifying substitutes for the DS1230Y-200IND+ in critical applications.

Conclusion

The DS1230Y-200IND+ NVSRAM from Analog Devices Inc./Maxim Integrated offers a proven, robust solution for engineers seeking nonvolatile, unlimited-endurance, fast-access memory within a rugged industrial temperature framework. Its integrated power-fail protection and drop-in packaging enable seamless upgrades of legacy designs and reliable deployment in new systems needing persistence without compromise. For engineers and procurement specialists evaluating nonvolatile memory, the DS1230Y-200IND+ presents a compelling blend of simplicity, versatility, and protection, making it a trustworthy building block for resilient electronic designs.
