KYOCERA AVX 08055U130GAT2A

KYOCERA AVX 08055U130GAT2A Series Product Summary

The KYOCERA AVX 08055U130GAT2A capacitor belongs to the acclaimed “U” Series of ceramic chip capacitors optimized for ultra low equivalent series resistance (ESR). Designed primarily for RF and microwave communication applications, this series targets engineers seeking highly stable and uniform capacitive components with minimal loss. The 08055U130GAT2A model features a capacitance of 13pF with a tolerance of ±2%, a maximum working voltage of 50 V DC, and is housed in an 0805 (2012 metric) case size. It employs a Class 1 C0G (NP0) dielectric, ensuring temperature-stable performance and low dissipation factors. The "U" Series capacitors deliver consistent electrical parameters lot-to-lot, a critical aspect for designs requiring predictable RF behavior. Engineering teams working on sensitive communication circuits will find these capacitors essential for maintaining signal integrity with minimal noise contribution.

Primary Electrical Parameters of 08055U130GAT2A Series Capacitors

The 08055U130GAT2A offers a nominal capacitance of 13 pF with a tight tolerance of ±2%, measured at 1 MHz. The capacitor utilizes the C0G (NP0) dielectric material, delivering a near-zero temperature coefficient of capacitance (TCC) defined as 0 ±30 ppm/°C over a wide operating temperature range from -55°C to +125°C. Capacitance stability across temperature ensures reliable performance in fluctuating thermal environments typical in RF hardware. Insulation resistance (IR) parameters are robust, with minimum values of 10^12 Ω at 25°C and 10^11 Ω at 125°C, then tested at the rated working voltage. Working voltage for the 0805 size capacitors in the “U” Series includes options up to 200 V DC; however, this specific model is rated to 50 V DC. The dielectric withstand voltage (DWV) meets 250% of the rated voltage, reinforcing reliability under transient conditions. ESR values are kept ultra low, verified using specialized instrumentation such as the Boonton 34A meter, contributing to minimal insertion loss in RF circuits. Laser marking adheres to EIA J standards, facilitating efficient identification and traceability during production.

Physical Attributes and Size Details of 08055U130GAT2A Series

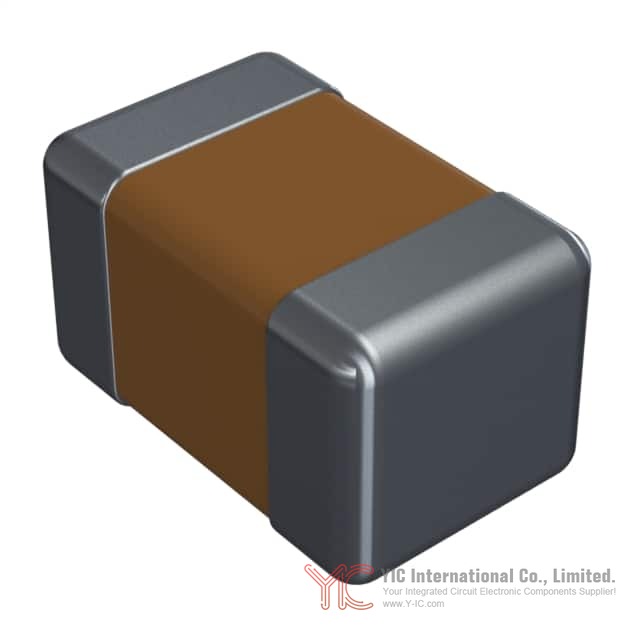

Mechanically, the 08055U130GAT2A encapsulates modern miniaturization standards within the 0805 chip footprint, corresponding to 0.08 by 0.05 inches (2012 metric). This standardized size allows compatibility with automated surface-mount technology (SMT) assembly lines while supporting high-density PCB layouts. The product’s ceramic construction provides mechanical robustness essential for handling mechanical stresses during reflow soldering. Consistent dimensional precision across production batches supports reliable pick-and-place operation and solder joint integrity, critical for high-volume manufacturing in communications device production.

Performance Factors for 08055U130GAT2A in RF and Microwave Applications

The ultra low ESR characteristic intrinsic to the “U” Series capacitors translates directly into enhanced signal fidelity for RF and microwave designs. Low ESR reduces unwanted resistive losses at high frequencies, enabling better Q-factors and improved impedance matching in filters and resonant circuits. Class 1 C0G dielectric stability offers linear capacitance behavior with negligible variation due to temperature, voltage bias, or frequency shifts, essential for phase-sensitive applications such as oscillators and antenna tuning networks. The capacitor’s tight capacitance tolerance and high insulation resistance enhance noise suppression and reduce the likelihood of distortion in sensitive communication front-ends. Designers should consider these factors when selecting decoupling and bypass capacitors in RF front-end modules, where stability and minimal parasitic effects are paramount.

Use Cases and Technical Advantages of the 08055U130GAT2A Series

The 08055U130GAT2A capacitor is well suited to a range of RF and microwave applications including cellular handsets, base stations, Wi-Fi modules, satellite communications, and radar systems. Its performance under temperature extremes and voltage stress offers reliability in both commercial and industrial communication devices. Additionally, the ultra low ESR characteristic minimizes heat dissipation, supporting longer component and system lifetime, which is especially important in compact, thermally challenging environments. Engineers focused on high-frequency filtering, tuning, impedance matching, and frequency control circuits will value the predictable electrical behavior and small footprint. The material and construction also comply with standard RoHS directives, ensuring environmental compatibility in global markets.

Durability and Environmental Standards of KYOCERA AVX 08055U130GAT2A

Reliability is ensured through stringent quality control processes, with specified lot-to-lot uniformity in capacitance and ESR. The capacitor’s insulation resistance and voltage endurance characterize it as a rugged component suitable for continuous operation in demanding environments. The KYOCERA AVX “U” Series capacitors meet RoHS compliance standards, reflecting adherence to hazardous substance restrictions prevalent in international electronics manufacturing and procurement. This compliance facilitates adoption across global supply chains without concern for environmental regulatory conflicts. Attention to detail in manufacturing and product testing supports long-term stability, reducing the requirement for frequent redesigns or component replacements during the product lifecycle.

Alternative and Substitute Models for 08055U130GAT2A

When considering alternatives, engineers should evaluate capacitors within the KYOCERA AVX "U" Series that match the key specifications of 13 pF capacitance, C0G (NP0) dielectric, 0805 case size, and 50 V working voltage. Equivalent models from other series may offer different ESR profiles or tolerances but may not fully replicate the ultra low ESR performance critical for RF applications addressed by the 08055U130GAT2A. Further, alternative capacitors from competitive manufacturers should be benchmarked for ESR, temperature stability, and insulation resistance to ensure comparability. Replacement models must also be scrutinized for RoHS compliance and similar mechanical footprints to guarantee cross-platform interchangeability with minimal design modifications.

Conclusion

The KYOCERA AVX 08055U130GAT2A capacitor embodies a high-performance solution tailored to modern RF and microwave design challenges. Its ultra low ESR, tight capacitance tolerance, and temperature-stable C0G (NP0) dielectric make it a prime candidate for critical signal path elements and noise-sensitive applications. The 0805 form factor supports flexible PCB design and high-volume manufacturing processes. Reliability and compliance with environmental standards further reinforce its suitability for global communication equipment markets. Engineers and procurement specialists evaluating ceramic capacitors for demanding RF environments will find the 08055U130GAT2A a technically robust and dependable choice.
