Summary of the P6SMB15AT3G TVS Diode by Littelfuse Inc.

The Littelfuse P6SMB15AT3G is a member of the P6SMB TVS diode series, specialized for protecting electronic circuits from transient voltage spikes. Designed for installation in surface-mount applications, this device serves a critical role in safeguarding sensitive components in industrial controls, telecommunications, consumer electronics, and automotive modules. Featuring a robust design built to withstand high surge currents, the P6SMB15AT3G is engineered for engineers who prioritize reliable suppression of overvoltage conditions due to electrostatic discharge (ESD), lightning, inductive load switching, or other transient events.

Primary Electrical Specifications and Performance Data of the P6SMB15AT3G TVS Diode

The Littelfuse P6SMB15AT3G TVS diode supports a maximum working peak reverse voltage (VWM) of 12.8V and clamps surges at 21.2V. When a voltage spike occurs, the diode swiftly transitions to a low-impedance state to divert excess energy safely away from protected circuitry. Capable of withstanding pulse currents up to 28A (Ipp), the component delivers the performance needed for demanding suppression situations. These metrics allow for reliable protection of electronic systems against damage from repetitive transients, extending product lifespan and ensuring compliance with upstream surge protection demands. Engineers evaluating safeguarding reliability will note the device’s fast response and stable clamping behavior as crucial attributes for robust design implementations.

Physical Design, Packaging, and SMT Capabilities of the P6SMB15AT3G TVS Diode

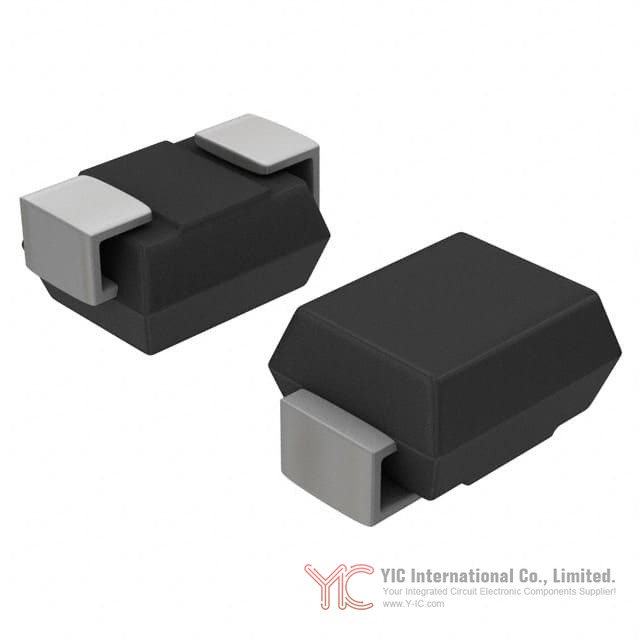

Packaged in the industry-standard SMB (DO-214AA) surface-mount configuration, the P6SMB15AT3G is engineered for automated pick-and-place mounting on PCB assemblies. The SMB package offers a compact footprint, simplifies high-speed assembly integration, and is well-suited for space-constrained applications. Solid construction provides mechanical stability through typical reflow soldering processes, and the format allows for efficient thermal management and electrical connectivity. Procurement professionals reviewing bill-of-materials (BOM) for automated production lines will appreciate the ease of component handling and compatibility with mainstream manufacturing processes.

Environmental Standards and Regulatory Certifications for the P6SMB15AT3G TVS Diode

The P6SMB15AT3G TVS diode meets stringent environmental requirements, including full compliance with RoHS3 and REACH regulations. These certifications guarantee the absence of hazardous substances and support sustainability mandates in global markets. In addition, the product’s ECCN status of EAR99 ensures easy export without the need for extensive licensing in most jurisdictions. This regulatory alignment is especially relevant for engineers and purchasers working within markets requiring demonstrable environmental responsibility or navigating international supply chains.

Possible Substitutes or Equivalent Parts for the P6SMB15AT3G TVS Diode

When selecting transient voltage suppression solutions, engineers may seek alternatives within the P6SMB series or from compatible product families. Devices with similar clamping voltages, peak pulse current ratings, and surface-mount packaging from Littelfuse—such as other P6SMB TVS diodes with adjusted voltage thresholds—can serve as drop-in replacements depending on the circuit protection requirements. Cross-referencing parameters such as VWM, clamping voltage, Ipp rating, and package with equivalent offerings enables procurement teams to quickly assess interchangeability, mitigate supply risks, or tailor designs for alternate protection strategies without significant layout changes.

Conclusion

: Application scenarios and selection considerations for the P6SMB15AT3G TVS diode series

The Littelfuse P6SMB15AT3G TVS diode stands as a reliable solution for transient voltage suppression in surface-mount electronic assemblies. Its balance of electrical performance, robust packaging, and environmental compliance makes it well-suited for engineers targeting high-reliability protection in industrial, consumer, and automotive applications. By comprehensively analyzing its electrical behavior, package features, regulatory certifications, and replacement options, product selection teams are equipped to make informed decisions to optimize circuit protection and supply chain resilience. The P6SMB15AT3G TVS diode exemplifies the attributes essential for modern transient protection strategies in advanced electronic designs.
