onsemi MBRB2515LT4G

Overview of the MBRB2515LT4G Schottky Diode by onsemi

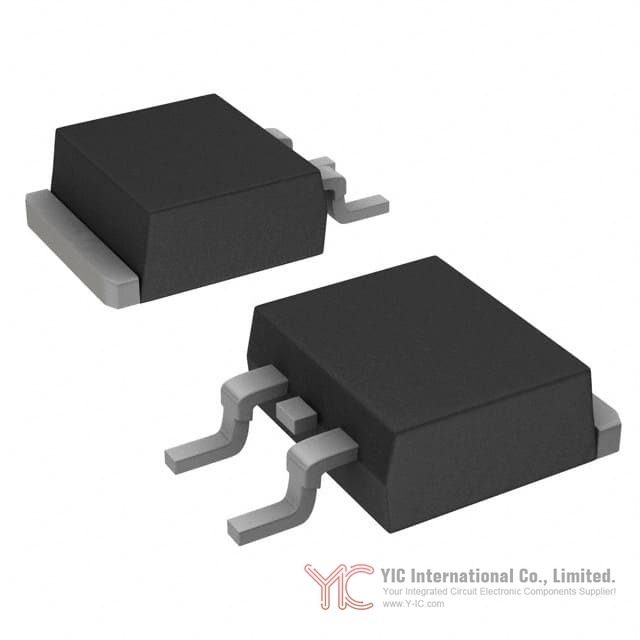

The MBRB2515LT4G by onsemi is a high-current, low-voltage Schottky barrier rectifier diode, specifically engineered for power applications requiring fast switching and high efficiency. Packaged in the surface-mount D²PAK (CASE 418B), it is rated for 25A forward current and a repetitive peak reverse voltage of 15V. This makes the MBRB2515LT4G highly relevant for engineers designing power supplies, ORing circuits, freewheeling diode setups, and polarity protection, where compactness and robust handling of surge currents are critical.

Main Features and Advantages of the MBRB2515LT4G Schottky Diode

The MBRB2515LT4G leverages the Schottky barrier principle, combining a large metal-to-silicon junction for minimal forward voltage drop and fast recovery. Epitaxial construction and oxide passivation enhance longevity and stability, while the device’s low forward voltage directly translates to lower power loss during conduction—supporting higher overall system efficiency. Key features include:

Guarding for stress protection, improving reliability under transient conditions;

Low forward voltage, ideal for high-efficiency designs;

100°C maximum operating junction temperature for broad application compatibility;

UL 94 V–0 recognized epoxy for enhanced safety;

Pb-free and RoHS compliance for modern assembly requirements;

ESD ratings: >400V (Machine Model), >8000V (Human Body Model) offering superior protection during handling and production.

Packaging Details and Thermal Handling of the MBRB2515LT4G Schottky Diode

Engineers benefit from the D²PAK package, which offers mechanical robustness, space savings, and excellent thermal performance. Weighing approximately 1.7 grams, it is comparable in size to standard TO-220 packages, but optimized for surface mounting. The short, manufactured heat sink tab maximizes heat dissipation efficiency, essential for sustaining thermal integrity under continuous 25A operation. Maximum soldering temperature is 260°C for up to 10 seconds, supporting compatibility with standard reflow processes. Corrosion-resistant external surfaces and readily solderable terminal leads ensure durable and reliable board integration.

Electrical Specifications and Application Performance of the MBRB2515LT4G Schottky Diode

The MBRB2515LT4G is designed for a repetitive peak reverse voltage (VRRM) of 15V and a continuous forward current (IF) of up to 25A. As a Schottky diode, its key electrical performance advantage lies in its low forward voltage drop—typically reducing conduction losses compared to standard silicon diodes. Additionally, the diode demonstrates characteristically low reverse recovery times, supporting high-frequency switching applications. The device's rated junction temperature and test conditions (e.g., pulse width, duty cycle) reflect its suitability for use in switching power supplies and other dynamic environments. Typical graphs supplied in the datasheet illustrate forward voltage behavior, reverse leakage current, forward power dissipation, and current derating, all of which are critical considerations for system-level power budget calculations.

Common Use Cases for the MBRB2515LT4G Schottky Diode

The MBRB2515LT4G is optimally applied in low-voltage, high-frequency switching power supplies where fast recovery and efficiency are paramount. It also excels as a freewheeling diode in motor drive circuits, limiting back-EMF and safeguarding switching devices. Another frequent use is as an ORing diode in redundant power architectures, where its low voltage drop minimizes insertion loss and power dissipation during normal operation and failover events. Additionally, its deployment in polarity protection enhances system resilience by preventing damage from reverse voltage conditions.

Assembly Guidelines and Reliability Factors for the MBRB2515LT4G Schottky Diode

When incorporating the MBRB2515LT4G into PCB assemblies, engineers must account for thermal and mechanical guidelines. Proper pad design—using the minimum recommended pad size on FR-4 PCB—ensures optimal heat dissipation. The device is classified as MSL1, indicating maximum resistance to moisture-induced failures during assembly. Its ESD ratings reinforce its robustness against handling-related failures. During the soldering process, compliance with recommended temperature profiles and times minimizes thermal stress and guarantees lead adhesion integrity.

Alternative or Replacement Options for the MBRB2515LT4G Schottky Diode

In the context of supply chain continuity or cross-brand design, understanding potential alternatives to the MBRB2515LT4G is valuable. While the MBRB2515LT4G is the preferred onsemi model in its class, engineers might consider Schottky diodes with similar 15V reverse voltage and 25A current ratings in D²PAK or TO-220 compatible packages. Comparable devices should closely match key parameters—forward voltage, maximum current, thermal characteristics, package outline, and environmental ratings—to ensure drop-in capability and consistent circuit performance during substitutions.

Conclusion

: Selecting the MBRB2515LT4G for robust power designs

The onsemi MBRB2515LT4G Schottky diode stands out as an authoritative solution for high-efficiency, high-current rectification in contemporary power electronics. Its blend of robust packaging, advanced Schottky barrier construction, and optimized electrical parameters provides design engineers and procurement professionals with a reliable, efficient, and versatile component choice. By aligning device characteristics with end-application demands and maintaining awareness of equivalent or replacement options, engineers can confidently specify the MBRB2515LT4G for demanding power supply, motor drive, ORing, and protection scenarios.
