onsemi 1SMA5925BT3G

Introduction to onsemi’s 1SMA5925BT3G Zener Diode

The 1SMA5925BT3G Zener Diode, manufactured by onsemi, represents a leading choice in surface-mount voltage regulation. As a member of the 1SMA59xxBT3G Series, this device is specifically designed to meet the stringent requirements of modern electronic system protection and voltage reference tasks. Rated for a nominal Zener voltage of 10 V and a maximum power dissipation of 1.5 W, the 1SMA5925BT3G is housed in a compact SMA package, making it especially suitable for space-constrained printed circuit board designs.

Main Attributes of the 1SMA5925BT3G

The 1SMA5925BT3G Zener Diode stands out for its robust feature set, supporting reliable electronics design and manufacturing:

Zener breakdown voltage range from 3.3 V to 68 V across the series, with 1SMA5925BT3G specifically at 10 V.

±5% tolerance ensures regulation accuracy demanded by critical applications.

High ESD robustness, rated at Class 3 (>16 kV, Human Body Model), secures the device against electrostatic events.

Flat handling surface and a low-profile package design streamline automated pick-and-place processes.

Flexible mounting orientation allows for top-slide or bottom circuit board placement.

Pb-free construction and UL 94 V-0 flammability rating underline its suitability for environmentally conscious and safety-critical products.

AEC-Q101 qualification and PPAP capability (with SZ-prefixed variants) allow for deployment in automotive and other markets with specific quality control requirements.

Physical Specifications and Packaging Information for 1SMA5925BT3G

The mechanical design of the 1SMA5925BT3G emphasizes reliability and integration ease:

Encapsulated in a void-free, transfer-molded plastic case for high durability.

All external surfaces are corrosion-resistant and feature leads optimized for solderability.

Soldering temperature resilience up to 260°C for 10 seconds, compatible with standard reflow processes.

Polarity is clearly marked with a molded cathode band for confident, error-free component identification.

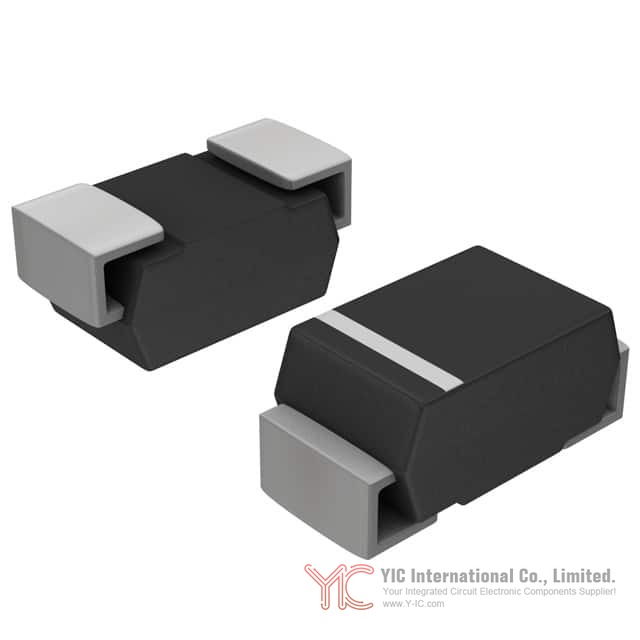

The SMA (JEDEC DO-214AC) package offers a compact footprint, crucial for dense PCB layouts, with recommended mounting data provided to ensure thermal performance and soldering reliability.

The device carries a UL 94 V-0 flammability rating, supporting the fire safety requirements of many end-use applications.

Electrical Specifications and Performance Charts of 1SMA5925BT3G

Understanding the electrical parameters of the 1SMA5925BT3G is vital for successful circuit integration:

Nominal Zener voltage: 10 V with a ±5% regulation tolerance, measured at thermal equilibrium.

Maximum forward voltage (VF): 1.2 V at IF = 200 mA.

Maximum power dissipation: 1.5 W, enabling the device to serve as a voltage stabilizer in moderate to high power circuits.

Detailed rating and typical curves (as published in onsemi’s datasheet) include steady-state power derating, Zener voltage vs. current characteristics, capacitance curves, and pulse handling profiles. These allow engineers to anticipate performance under real-world load and transient conditions.

All device ratings are specified at a standard ambient temperature of 25°C, ensuring suitability for typical operating environments.

Guidelines for Installing and Handling the 1SMA5925BT3G

Proper mounting and handling are essential to guaranteeing the performance and longevity of the 1SMA5925BT3G Zener Diode:

Recommended for surface mounting using reflow or wave soldering processes; onsemi provides detailed footprint and soldering guidelines in its technical documentation.

Its flat handling surface is optimized for automated placement, reducing risk of misalignment and improving throughput in high-volume manufacturing.

The maximum case temperature specification supports compatibility with standard solder profiles, mitigating thermal stress.

Orientation markers (polarity band) provide a simple visual reference, minimizing assembly errors.

Use Cases and Design Considerations for 1SMA5925BT3G

Engineers considering the 1SMA5925BT3G should assess its suitability for a range of scenarios:

Voltage regulation: Maintaining stable 10 V references in analog and digital subsystems, such as microcontroller VREF pins, power supplies, or sensor interfaces.

Overvoltage protection: Providing a reliable clamp against transients in automotive ECUs, industrial control PCBs, or communication equipment.

ESD-sensitive designs: High ESD rating makes the 1SMA5925BT3G ideal for I/O and signal protection in mobile devices, embedded systems, and harsh environments.

Replacement for MELF packages: The SMA footprint can directly substitute MELF Zener diodes, facilitating upgrades to surface-mount assembly without major board revisions.

Automotive and quality-critical applications: SZ-prefixed variants are qualified for automotive standard AEC-Q101 and support PPAP documentation, essential for Tier 1 and OEM automotive suppliers.

Alternative or Substitute Devices Comparable to 1SMA5925BT3G

In circumstances where the 1SMA5925BT3G is unavailable or where alternate specifications or package formats are required, engineers may consider:

Other voltages within the 1SMA59xxBT3G Series from onsemi, which span 3.3 V to 68 V for differing circuit needs.

SZ1SMA59xxBT3G Series, providing automotive and unique site requirement compliance for quality-critical projects.

Zener diodes in similar SMA packaging from reputable manufacturers, maintaining at least equivalent voltage, power dissipation, and ESD ratings.

MELF-packaged Zener diodes for legacy designs, noting mechanical and thermal differences that may affect mounting or performance.

Conclusion

: Why choose the 1SMA5925BT3G Zener Diode

The onsemi 1SMA5925BT3G Zener Diode merges high reliability, robust electrical performance, and flexible mounting options in a compact SMA package. Its combination of ±5% voltage tolerance, strong ESD immunity, low-profile form factor, and automotive-grade variant availability position it as a leading choice for voltage stabilization and circuit protection across consumer, industrial, and automotive applications. For engineers and procurement professionals seeking a proven surface-mount Zener solution, the 1SMA5925BT3G stands out as a dependable, specification-compliant component supported by comprehensive manufacturer documentation and global availability.
