Allegro MicroSystems A8498SLJTR-T

Summary of Allegro MicroSystems A8498SLJTR-T Product

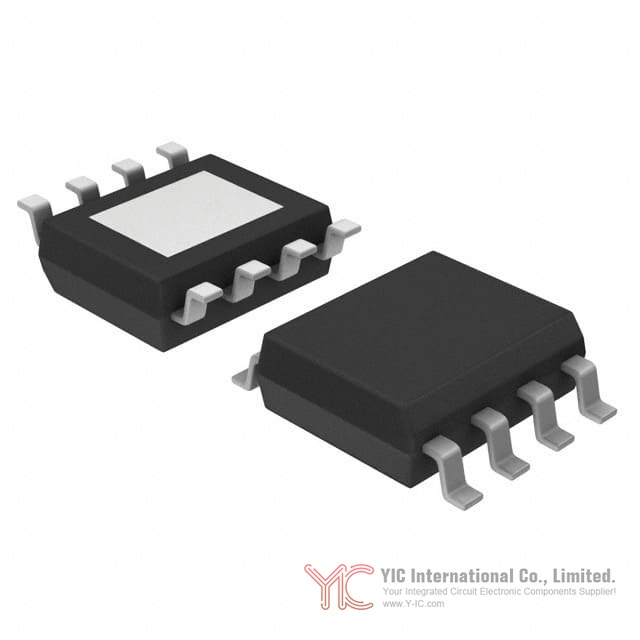

The Allegro MicroSystems A8498SLJTR-T is a high-efficiency, wide input voltage buck switching regulator IC designed for applications requiring reliable step-down conversion. Offering a positive adjustable output and capable of delivering up to 3A, the A8498SLJTR-T targets power supply designs for demanding industrial, automotive, and consumer electronics. Its integration in a space-saving 8-lead SOIC package with exposed pad ensures effective thermal management and straightforward surface-mount assembly. The device supports an input voltage range from 8V to 50V and accommodates adjustable output voltages from 0.8V to 24V, making it suitable for a broad spectrum of DC/DC conversion scenarios.

Main Characteristics and Performance Metrics of A8498SLJTR-T

The A8498SLJTR-T features a versatile step-down topology with a single adjustable output, enabling precise voltage regulation for different loads. The integrated DMOS switch facilitates efficient conversion, while adjustable fixed off-time control offers flexibility in switching frequency selection and optimization. The device’s rated output current of 3A is complemented by wide input tolerance, supporting both standard and higher-voltage environments.

Typical application areas include consumer equipment, uninterruptible power supplies (including lead-acid battery chargers), automotive telematics (with robustness against higher voltage transients), portable device power via 12V lighter sockets, point-of-sale terminals, and industrial systems operating on 24V or 36V buses. Engineers benefit from the operational temperature range of -20°C to +85°C, ensuring reliability under varying environmental conditions.

Electrical and Thermal Specifications of A8498SLJTR-T

For product selection engineers, understanding key electrical and thermal ratings is critical. The A8498SLJTR-T supports input voltages up to 50V and offers an adjustable output voltage regulated to within ±3%. At typical conditions (VIN = 42V, VBIAS = 3.2V), quiescent current levels are low to optimize overall system efficiency. On-resistance for the internal buck switch is 450mΩ at 25°C, rising to 650mΩ at higher junction temperatures.

Thermal management is enhanced by the package’s exposed pad and the low-profile SOIC form factor, offering a thermal resistance of 35°C/W on a standard 4-layer PCB. Designers must ensure the junction temperature does not exceed 150°C and observe the recommended ambient temperature limits for sustained operation. Soft start, current limiting (min. 3.5A), undervoltage lockout, and thermal shutdown are all integrated, providing essential protection mechanisms against overload and abnormal voltage conditions.

Operational Overview of A8498SLJTR-T

The A8498SLJTR-T operates as a fixed off-time, current-mode buck regulator. It requires external components—inductor, catch diode, and output filter capacitor—and works efficiently in both continuous and discontinuous conduction modes. Cycle-skipping mode ensures stable output during light load conditions to maintain tight voltage regulation.

Voltage adjustment is achieved via an external resistor divider in conjunction with the internal 0.8V reference. The off-time is set using a resistor on the TSET pin, allowing precise control of switching frequency. VBIAS can be sourced from the output to improve efficiency across target voltages between 3.3V and 5V; for lower outputs, VBIAS may be connected externally.

Engineers should consider the device’s soft start function, which ramps output voltage at power-up and upon recovery from thermal events, limiting inrush and startup currents. The ENB pin facilitates on/off control, with soft start triggered by VIN presence, ENB logic fall, or post-thermal shutdown reset. For shorted loads, dynamic current limiting extends protection by raising off-time as necessary.

Guidelines for Choosing Components with A8498SLJTR-T

Proper selection of external components directly impacts regulator performance and reliability. Inductor value and current rating should be chosen to keep ripple within bounds and ensure peak currents do not exceed the device’s internal limits. Higher inductance can further reduce ripple but may increase physical size. The output capacitor (preferably low-ESR electrolytic) is another critical component; ESR values in the 50–500mΩ range are recommended for optimal ripple suppression. Engineers can calculate ripple current and switching frequencies using the datasheet’s provided formulas, enabling precise matching to system demands.

When selecting the TSET resistor to set fixed off-time, ensure compliance with minimum value guidelines based on VIN/VOUT ratios, taking worst-case tolerances into account. The feedback network should employ low impedance resistors to reduce susceptibility to switching noise and maintain stable voltage regulation.

Suggested Components for Use with A8498SLJTR-T

The datasheet provides examples of suitable component choices for three common input voltage rails: 42V, 24V, and 12V.

For 42V systems, a Sumida RCH1216BNP-680K 68μH inductor, NSQ03A06 Schottky diode (60V rating), Rubycon ZL 220μF/50V output capacitor, and a series of feedback resistors (e.g., 2.55kΩ for 1.8V output, 6.34kΩ for 3.3V, and 10.5kΩ for 5V outputs) are recommended. Similar high-quality components from Murata, Kemet, Panasonic, and NIEC are suggested for 24V and 12V supply rails, with values adjusted to maintain proper operating margins and current ratings according to voltage and load requirements.

Special attention should be paid to component selection for the clamp diode and inductor, ensuring that voltage and current ratings are above maximum anticipated levels in deployed engineering scenarios.

Alternative or Substitute Models for A8498SLJTR-T

Selection engineers often require backup or alternative options during design, procurement, or supply chain disruptions. In the context of Allegro MicroSystems A8498SLJTR-T, comparable devices include adjustable-output buck regulators in the same current and voltage range, packaged for surface-mount deployment. While specific replacement part numbers should be evaluated against required electrical and thermal ratings, features like adjustable output range, integrated switches, and robust protection mechanisms are essential for equivalency.

Considerations for replacement include input/output voltage range, efficiency under target loads, integrated protection features, and thermal package characteristics. Engineers may reference similar step-down regulators from established manufacturers, ensuring all safety, reliability, and regulatory requirements (e.g., RoHS, REACH compliance) are met.

Conclusion

The Allegro MicroSystems A8498SLJTR-T is a versatile, high-efficiency buck regulator designed to simplify power management in demanding applications. Its wide input voltage range, adjustable output, robust current handling, and onboard protection functions make it an excellent choice in industrial, automotive, and consumer designs requiring precise DC conversion. Thorough understanding of its electrical and thermal properties, as well as rigorous selection of external components and awareness of potential equivalent models, enables product selection engineers and procurement professionals to confidently integrate the A8498SLJTR-T into high-performance systems.
