Analog Devices Inc. ADV7604BBCZ-5P

Product Summary Analog Devices Inc. ADV7604BBCZ-5P Video Digitizer

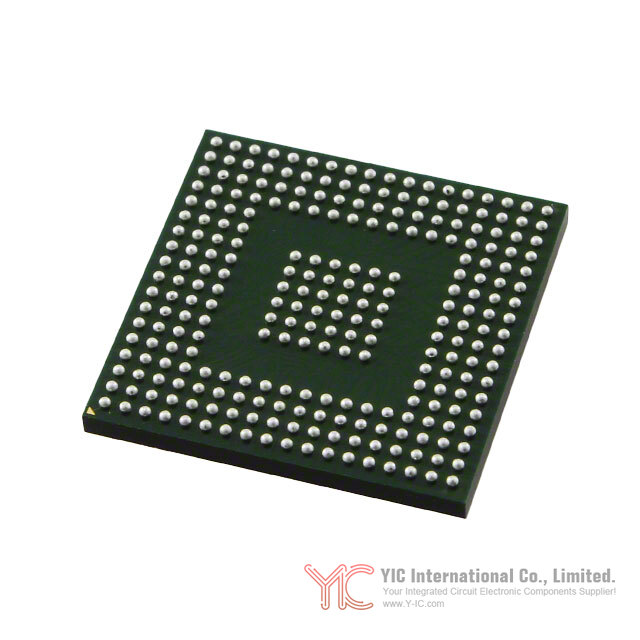

The ADV7604BBCZ-5P is a high-performance video digitizer integrated circuit, designed and manufactured by Analog Devices Inc. This device is tailored for advanced video and display applications requiring robust analog and HDMI signal conversion in a single, space-saving 260-ball 15mm x 15mm CSPBGA package. It combines a high-quality multiformat video decoder, graphics digitizer, and a quad HDMI receiver, serving a wide range of professional video processing solutions, particularly where rapid, reliable, and seamless signal conversion is critical.

Highlights of the ADV7604BBCZ-5P

Engineers and procurement specialists evaluating the ADV7604BBCZ-5P will appreciate its highly integrated and advanced feature set. Notably, the device houses three 12-bit analog-to-digital converters (ADCs), achieving sampling rates of up to 170 MHz, and supports a 12-channel analog input multiplexer that significantly reduces the need for external switching logic. This enables compatibility with a broad selection of analog formats.

Its quad HDMI 1.3a receiver offers 4:1 input multiplexing with support for all HDTV resolutions up to 1080p and computer graphics modes up to UXGA (1600 × 1200 at 60 Hz). The ADV7604BBCZ-5P further supports advanced audio features, including high-bandwidth digital content protection (HDCP 1.3), deep color processing (36/30/24-bit), and flexible audio extraction for standards such as Dolby® TrueHD and DTS®-HD.

Integrated programmable adaptive equalization allows reliable HDMI transmission over cable lengths up to 30 meters, while simultaneous HDMI and analog video sync processing provides the platform for rapid input switching and robust design versatility.

System Design and Working Mechanism of the ADV7604BBCZ-5P

At the heart of the ADV7604BBCZ-5P is a single main component processor (CP) capable of handling both YPrPb and RGB component video formats, as well as the full suite of HDMI video streams. The flexible analog front end digitizes video with 12-bit accuracy, ensuring clarity across supported standards—from legacy NTSC/PAL inputs (e.g., 525i, 625i) to high-definition progressive and interlaced formats (720p, 1080p, 1250i).

The quad HDMI receiver block is designed for rigorous operation, integrating programmable data lane equalization, packet interrupt generation, and HDCP content protection, making the device highly suited to secure content distribution and advanced display systems. The device supports internal EDID RAM and CEC for HDMI DDC and control signaling.

I²C bus compatibility allows seamless integration into complex embedded systems, facilitating processor-based control for system reconfiguration, diagnostics, and interfacing with multiple peripherals.

In-Depth Exploration of Main Functional Modules

Analog Front End: The ADV7604BBCZ-5P employs three high-speed, 12-bit ADCs, fed through a 12-channel analog multiplexer. Each video channel features voltage clamp loops for DC correction, with digital fine clamping performed downstream to maximize signal fidelity. Oversampling is used selectively (2× for standard definition; 1× for higher resolutions), reducing system noise and relaxing external anti-aliasing filter requirements.

HDMI Receiver: The HDMI subsystem incorporates adaptive equalization for high-frequency signal recovery over long cables. It supports multi-channel I²S and single-wire SPDIF interfaces, handling audio standards such as DSD, Dolby® TrueHD, and DTS®-HD. The receiver embeds an audio mute controller, preventing unwanted clicks or noise during signal interruptions.

Component Processor: The CP block offers dynamic gain, offset, and color space conversion (3x3 matrix), facilitating seamless transitions between color formats like YPrPb-to-RGB and RGB-to-YCrCb. Macrovision® detection, robust sync extraction, and vertical blanking interval (VBI) data slicing (for teletext and CGMS) enhance compatibility with diverse signal sources and standards.

Synchronizations and Standard ID: The device provides automatic detection of synchronization polarity and standard identification, supporting both native and nonstandard sources. Enhanced features such as arbitrary pixel sampling and 32-phase DLL drive flexibility in handling legacy and modern graphics inputs.

Data Output Methods and Interface Management in ADV7604BBCZ-5P

The ADV7604BBCZ-5P offers highly flexible output options, supporting both single data rate (SDR) and double data rate (DDR) modes. Engineers can configure outputs for 16/20/24-bit 4:2:2 or 24/30/36-bit 4:4:4 formats in SDR, and 8/10/12-bit (4:2:2 YCrCb) or 12-bit (4:4:4 RGB/YCrCb) formats in DDR. Timing signals such as HSYNC, VSYNC/FIELD, and DE/FIELD are programmable in position, polarity, and width—essential for interface compatibility and pipeline timing alignment in complex video systems.

Power Supply, Packaging, and Environmental Factors of ADV7604BBCZ-5P

Power efficiency is built into the ADV7604BBCZ-5P, with core operation at 1.8V (digital and analog) and I/O at 3.3V. Power-down and energy-saving ‘green PC’ modes are supported. Its compact 260-ball CSPBGA package follows JEDEC MO-275-KKAA-1, supporting RoHS compliance for lead-free designs.

Thermal performance is optimized with recommendations for minimizing power dissipation by disabling unused blocks. The device is rated for an industrial temperature range (-40ºC to +70ºC), ensuring reliability in demanding professional display environments.

Real-World Use Cases of ADV7604BBCZ-5P

The ADV7604BBCZ-5P is suitable for a broad range of high-end video receiver and processing systems, including advanced TVs (LCD, PDP, DLP®, LCoS™, CRT), professional broadcast monitors, HDMI switching matrices, projection systems, and video recorders with progressive scan support. Its robust analog and HDMI feature set makes it attractive for set-top boxes, digital signage, and AV receiver systems requiring flexible, high-fidelity video and audio integration.

Alternative or Substitute Options for ADV7604BBCZ-5P

In the event of supply constraints or evolving project requirements, engineers might consider potential equivalent or replacement models. Within Analog Devices’ portfolio, the predecessor or adjacent models such as ADV7842 or ADV7611 provide high-quality video digitizer and HDMI receiver capabilities, although specific feature sets, packaging, and supported video/audio formats may vary.

When selecting a replacement, closely evaluate: ADC resolution and speed, supported HDMI versions and feature subsets, color depth compatibility, synchronization and VBI data support, and power/performance trade-offs. It’s important to ensure equivalent HDCP functionality and supported video/audio interfacing to maintain system design compatibility.

Conclusion

The ADV7604BBCZ-5P from Analog Devices Inc. stands out as a highly integrated solution for video digitization and graphics processing, suited for contemporary high-performance display and video distribution systems. Its powerful combination of analog front end, multi-channel HDMI receiver, advanced component processor, and flexible output options ensures engineers have the versatility needed for demanding designs. As the demand for multi-standard video integration and high-definition processing grows, the ADV7604BBCZ-5P remains a proven choice for product selection specialists and engineers seeking reliable, scalable video digitizer platforms.
