Analog Devices Inc. ADSP-BF516KBCZ-4

Product Summary ADSP-BF516KBCZ-4 Embedded CPU from Analog Devices Inc.

The Analog Devices Inc. ADSP-BF516KBCZ-4 is a member of the Blackfin® family of embedded processors, designed for demanding applications requiring high computational throughput combined with system-level integration. Targeting engineers working on networking, multimedia, motor control, or industrial automation platforms, the ADSP-BF516KBCZ-4 delivers advanced signal processing and connectivity in a compact 168-ball CSPBGA package. With a maximum clock speed of 400 MHz and extensive peripheral support, the device stands out as an attractive solution for low-power, high-performance embedded systems.

Main Attributes and Performance Specs of the ADSP-BF516KBCZ-4

At its core, the ADSP-BF516KBCZ-4 achieves up to 400 MHz operation, ensuring robust processing capability for signal-intensive workloads. It supports a broad range of operating voltages (1.8V, 2.5V, 3.3V), making it suitable for various embedded environments. The device is compliant with RoHS3 and REACH, with an MSL rating of 3 for easy handling in manufacturing.

Engineers will find the ADSP-BF516KBCZ-4 particularly versatile due to its integrated peripherals: two IEEE 802.3-compliant 10/100 Ethernet MACs, dual UARTs with IrDA support, two dual-channel full-duplex SPORTs for audio streaming, two SPI ports, parallel peripheral interface (PPI) for video data, and a removable storage interface supporting MMC, SD, SDIO, and CE-ATA. The processor accommodates up to 40 general-purpose I/Os and includes eight 32-bit timers with PWM features, a dedicated three-phase PWM unit for motor control, and extensive DMA channels for efficient data movement.

Blackfin Processing Unit Features in ADSP-BF516KBCZ-4

The Blackfin processor core in the ADSP-BF516KBCZ-4 is engineered for multimedia and DSP tasks, featuring dual 16-bit MACs, dual 40-bit accumulators, four video ALUs, and a 40-bit shifter. These computation units provide efficient SIMD arithmetic for 8-, 16-, or 32-bit data operations, supporting function acceleration in scenarios such as real-time video processing and control-oriented applications. The core’s RISC-like orthogonal instruction set, combined with sophisticated vector and DSP instructions, delivers high code density and compiler-friendly programming.

A dedicated memory management unit (MMU) enables application-level protection, supporting modes like user, supervisor, and emulation. The core provides advanced program flow hardware support—zero-overhead looping, efficient branching, and robust pipeline interlocking—equipping developers to maximize performance with minimal code complexity.

Memory Structure and Handling Functions of ADSP-BF516KBCZ-4

Built for scalable application requirements, the ADSP-BF516KBCZ-4 implements a unified 4 GB address space with hierarchical memory management. Level 1 (L1) internal memory houses high-speed instruction and data SRAM, offering up to 32 KB each, configurable for cache or SRAM use, plus a 4 KB scratchpad. Fast internal memory access ensures critical code and data remain close to the core.

For expanded requirements, the external bus interface allows connection to SDRAM (up to 128 MB supported) and up to four banks of asynchronous memory, including flash, ROM, and SRAM. The ADSP-BF516KBCZ-4 also supports an optional 16 Mb SPI flash, bootable directly from the internal flash die, with software write protection, and rapid erase/program cycles, facilitating reliable system startup and secure firmware storage.

System Connectivity and Peripheral Support in ADSP-BF516KBCZ-4

The ADSP-BF516KBCZ-4 is structured as a highly integrated system-on-chip, combining industry-standard interfaces for rapid application development. Its Ethernet MAC enables real-time networked operations, while the RSI controller and TWI interface provide flexible storage access and I2C communication, respectively. Audio and video interfacing are streamlined with SPORTs (supporting up to eight stereo I²S channels) and PPI, vital for multimedia and industrial vision systems.

Motor control and automation benefit from its timer/PWM units, supporting both generic and three-phase control schemes. The device includes extensive interrupt inputs, allowing prioritized and nested servicing of external and internal events. Flexible boot options (from internal SPI flash, OTP, external memory, SPI/UART hosts) further heighten adaptability across different hardware configurations.

Interrupt Management and Advanced DMA Capabilities of ADSP-BF516KBCZ-4

Event responsiveness is a cornerstone of embedded systems design. The ADSP-BF516KBCZ-4 provides a dual-stage event controller (core and system interrupt controllers) capable of prioritizing 56 interrupt sources with nesting support, crucial in real-time scenarios. Programmable interrupt mapping lets developers fine-tune system response.

For high-efficiency data handling, the processor offers twelve peripheral DMA channels—including those dedicated to the Ethernet MAC—and two memory-to-memory DMA channels with flexible descriptors, supporting 1-D and 2-D block transfers. This architecture minimizes processor intervention and supports high-bandwidth applications, such as video streaming, networking, or large-scale sensor data acquisition.

Real-Time Clock, Watchdog, and Security Features in ADSP-BF516KBCZ-4

Operational reliability is reinforced with on-chip real-time clock (RTC) and watchdog timer modules. The RTC is supported by a dedicated 32.768 kHz external crystal, ensuring accurate alarm, timekeeping, and system wake functionality, even during low-power states. The watchdog timer provides fail-safe system reset capabilities.

Security is addressed via the Lockbox technology, enabling code protection and secure boot, alongside a one-time programmable (OTP) memory region allowing storage of keys, customer IDs, MAC addresses, and other sensitive user data. Hence, the ADSP-BF516KBCZ-4 can serve in secure industrial or networked environments, where system integrity and IP protection are essential.

Packaging, Environmental Specs, and Installation Information for ADSP-BF516KBCZ-4

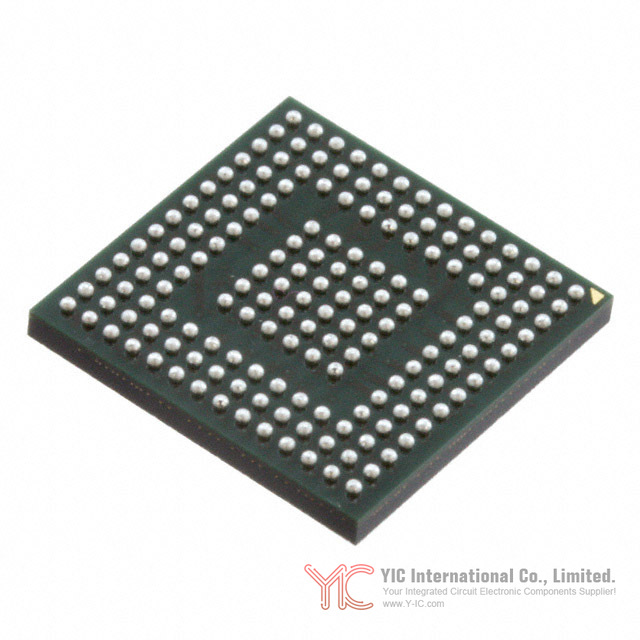

Physically, the ADSP-BF516KBCZ-4 is presented in a 168-ball CSPBGA (12x12 mm) package, supporting surface-mount processes and optimized for automated manufacturing. The device operates reliably in a temperature range of 0°C to 70°C, suitable for commercial and select industrial applications. As a RoHS3-compliant part, it ensures environmentally responsible integration into new and existing platforms.

Alternative or Substitute Models for ADSP-BF516KBCZ-4

For engineers assessing the ADSP-BF516KBCZ-4, several closely related models within Analog Devices’ Blackfin series may be considered as alternatives, depending on specific system requirements. The ADSP-BF514, ADSP-BF514F16, ADSP-BF512, ADSP-BF518, and ADSP-BF518F16 offer varying configurations of flash memory, peripheral sets, and core functionalities. For example, the ADSP-BF518/BF518F16 extend Ethernet MAC support with IEEE 1588 capabilities, while the ADSP-BF514F16 and ADSP-BF518F16 incorporate 16 Mb SPI Flash. Careful comparative review of peripheral support, memory structure, and package options helps optimize device selection for application needs.

Conclusion

In summary, the Analog Devices ADSP-BF516KBCZ-4 stands out as a robust, highly integrated embedded processor offering engineers a superior blend of computational performance, peripheral versatility, and scalable memory architecture. Its advanced Blackfin core, responsive event management, and rich peripheral support make it particularly suited for application domains such as multimedia processing, industrial automation, motor control, and secure networked devices. For system design and procurement professionals, the ADSP-BF516KBCZ-4 and its Blackfin series equivalents present compelling options for modern high-performance embedded applications.
