Analog Devices Inc. ADSP-2115BPZ-100

ADSP-2115BPZ-100 16-Bit DSP Processor Introduction

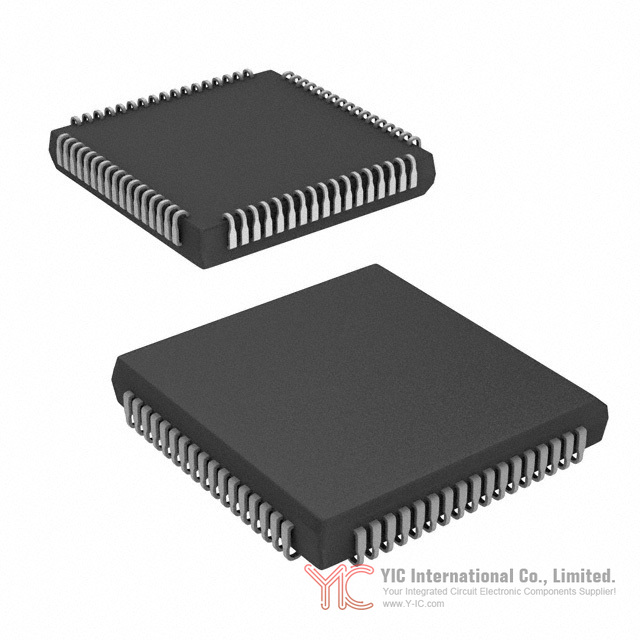

The ADSP-2115BPZ-100, developed by Analog Devices Inc., is a member of the ADSP-2100 Family—a widely implemented range of 16-bit fixed-point digital signal processing (DSP) microprocessors. Housed in a 68-lead PLCC (Plastic Leaded Chip Carrier) package, the ADSP-2115BPZ-100 is optimized for high-speed numeric and DSP applications requiring reliable throughput and broad compatibility. It delivers up to 25 MIPS performance with a 40 ns instruction cycle, and every instruction executes in a single cycle, simplifying both code design and performance analysis.

As an embedded, integrated circuit solution, the ADSP-2115BPZ-100 features on-chip program and data memory, dual synchronous serial ports, an interval timer, and a rich instruction set oriented toward real-time signal computation tasks. Its submicron CMOS process technology supports robust operation at low power consumption, making it both powerful and efficient for a diverse range of embedded signal processing scenarios.

Primary Design Attributes of the ADSP-2115BPZ-100

The ADSP-2115BPZ-100 leverages an enhanced Harvard architecture with three parallel buses: one for instructions and two for data. This three-bus approach allows simultaneous fetching of instructions and operands, maximizing arithmetic throughput and minimizing wait states during algorithm execution.

Within the processor, three independent computation units—the Arithmetic Logic Unit (ALU), a hardware multiplier/accumulator (MAC), and a shifter—enable rich parallelism. In systems needing high-efficiency computations (e.g., real-time filtering, FFTs, and adaptive algorithms), the ADSP-2115BPZ-100’s core can simultaneously execute address generation, data fetch/move, arithmetic operations, and program sequencing in a single instruction cycle.

On-chip program memory (1K words) and data memory (512 words) reduce external memory bottlenecks and accelerate algorithm critical sections. The chip supports both single- and double-word computations, as well as multi-precision arithmetic for applications requiring extended dynamic range.

Built-in Peripheral Devices and Input/Output Functions of ADSP-2115BPZ-100

A standout feature of the ADSP-2115BPZ-100 is its integrated I/O system, notably including two full-featured synchronous serial ports (SPORT0 and SPORT1). These facilitate high-throughput, bidirectional serial communication in audio, telecommunications, digital control, and sensor interface applications. The serial ports feature double-buffered transfers, autobuffering, hardware companding (A-law and μ-law per CCITT G.711), flexible word length (3-16 bits), and multichannel time-division multiplexed (TDM) operation on SPORT0. SPORT1 may be alternately configured for external event signaling through general-purpose flag inputs/outputs.

The built-in interval timer supports periodic interrupt generation, enhancing real-time operating system (RTOS) integration and cyclic data processing. Up to three external interrupts are supported, with individual programmable priority and edge/level sensitivity, and the chip supports maskable, vectored, and nested interrupts for complex control applications.

Connectivity and Memory Assignment within ADSP-2115BPZ-100

The ADSP-2115BPZ-100 provides robust system interfacing capabilities, supporting both stand-alone operation and integration into larger, shared-bus systems. A multiplexed 14-bit address and 24-bit data bus are used for both program and data memory access, with memory-mapped peripheral support and bus arbitration (bus request/grant) logic built-in for transparent resource sharing with external processors, direct memory access (DMA) controllers, or custom hardware.

Addressable program memory extends to 15K words, with a clear memory mapping mechanism using the MMAP signal to select between program RAM and external memory ranges. Important for embedded systems is the automatic bootloading sequence, which draws code from an external byte-wide EPROM upon reset, streamlining field updates and manufacturing workflows.

The data memory map supports 14K off-chip addresses in addition to 512 words on-chip. Five programmable off-chip memory zones, each with their own wait-state generator, make integration with varied-speed peripherals (such as A/D and D/A converters, ASICs, or slow SRAM) systematic and reliable.

ADSP-2115BPZ-100 Instruction Architecture and Program Management

The instruction set of the ADSP-2115BPZ-100 is highly regular and algebraic, supporting single-cycle execution for all operations. The structure encompasses data movement, computation (including multiply-accumulate and shift instructions), program flow control (jumps, subroutines, loop constructs with zero-overhead looping), and miscellaneous instructions (such as idle, stack operations, and system configuration).

Notably, multifunction instructions allow the execution of an arithmetic operation and up to two data moves within a single cycle, directly accelerating DSP primitives like FIR/IIR filtering and adaptive algorithms. Efficient addressing modes—such as indirect, modulo, and bit-reverse—support circular buffers and fast algorithms like FFTs.

The interrupt controller prioritizes efficient response with minimal overhead, automatically stacking and unstacking system status, and supporting advanced features like nesting and selective masking, vital for multichannel and multitasking applications.

Operating Parameters and Package Alternatives for ADSP-2115BPZ-100

The ADSP-2115BPZ-100 operates across a broad ambient temperature range (-40°C to +85°C for industrial, others available for specific package types), and the device is tolerant of supply voltages up to 5.5V. Its submicron CMOS fabrication supports low power operation, and an IDLE instruction provides further power savings—crucial for battery- or thermally-constrained designs.

Output drive, capacitive loading, and timing characteristics are specified in detail, supporting robust system engineering and timing closure in both prototype and high-volume manufacturing environments. The device is available in multiple package styles, including plastic leaded chip carrier (PLCC), and its pinout is designed for straightforward PCB routing in multi-layer board layouts.

Development Environment Compatibility for ADSP-2115BPZ-100

Analog Devices provides a comprehensive suite of development tools tailored for the ADSP-2115BPZ-100 and its family. These include a full C and assembly software toolchain, linker, simulation and system debug environments, and PROM code generation utilities. In-circuit emulators (ICE) and demonstration boards streamline prototyping and system bring-up, while low-cost evaluation kits allow early system modeling and architectural validation prior to PCB design commitment.

Alternative or Substitute Models for ADSP-2115BPZ-100

The ADSP-2115BPZ-100 is a core member of the ADSP-21xx family. Engineers seeking alternatives or evaluating migration paths should consider:

ADSP-2101: Offers similar architecture with larger on-chip program and data memory (2K words of program RAM and 1K words of data RAM). Available in multiple voltage and package options.

ADSP-2103: A 3.3V version of the ADSP-2101, suited for low-voltage or power-sensitive designs.

ADSP-2105: Entry-level DSP in the family with on-chip memories and single serial port.

ADSP-2111: Enhances the basic feature set with a dedicated host interface port for glueless interfacing with mainstream microcontrollers or microprocessors, useful in mixed microcontroller/DSP applications.

ADSP-2161/2162/2163/2164: Custom ROM-programmed versions for applications with fixed code and high volumes, minimizing external boot memory and reducing system cost.

Designers must evaluate memory requirements, external interface needs, package constraints, and the necessity for a host communication interface before choosing a replacement or equivalent component.

Conclusion

: Application Guidance and Selection Considerations for ADSP-2115BPZ-100

The ADSP-2115BPZ-100 is ideally suited for real-time digital signal processing applications in telecommunications, embedded audio, instrumentation, and control systems. Its robust architecture, integration of flexible high-speed I/O, support for a comprehensive instruction set, and extensive development support make it a compelling option for engineers requiring deterministic, single-cycle DSP performance in a compact package.

Key selection criteria include on-chip versus off-chip memory needs, requirements for dual serial ports or multichannel TDM support, power and thermal constraints, and integration with host or peripheral subsystems. For systems designers and procurement specialists, the longstanding availability and family compatibility within the ADSP-21xx series assure strong ecosystem support and future-proofing for both new and legacy DSP-centric designs.
