Analog Devices Inc. ADG5419BCPZ-RL7

Summary of ADG5419BCPZ-RL7 Analog Devices Single-Pole Double-Throw Switch Family

The ADG5419BCPZ-RL7 from Analog Devices represents a monolithic, high-voltage analog switch solution based on CMOS technology, packaged in a compact 8-lead LFCSP (2x3 mm). At its core, the ADG5419BCPZ-RL7 is a single-pole, double-throw (SPDT) switch, capable of routing precision analog or digital signals with low distortion and minimal on-resistance. The device operates reliably across wide supply voltage ranges, making it an optimal choice for demanding instrumentation, industrial, and automated test system designs.

Highlights and Main Features of ADG5419BCPZ-RL7

One of the primary strengths of the ADG5419BCPZ-RL7 lies in its immunity to latch-up—a failure mode that can be catastrophic in industrial environments. Using trench isolation technology between the NMOS and PMOS transistors, it guarantees uninterrupted operation even under severe overvoltage conditions. The device also boasts an exceptionally high ESD rating (8 kV, human body model) and a low typical on-resistance of 13.5 Ω, providing reliable signal integrity across its operating range. Additionally, flexible supply configurations are supported: ±9 V to ±22 V for dual-supply (bipolar signal path), and 9 V to 40 V for single-supply (unipolar), with supply rail voltages up to 48 V maximally tolerated.

Electrical Specifications and Operating Parameters of ADG5419BCPZ-RL7

The ADG5419BCPZ-RL7 is comprehensively specified at multiple standard voltages, such as ±15 V, ±20 V, +12 V, and +36 V, facilitating straightforward integration in both legacy and next-generation system designs. Its analog signal input range extends fully from the positive to negative supply rails, a critical property for wide dynamic range signal routing. The device demonstrates robust electrical characteristics under all conditions, with minimal variation in on-resistance and effective blocking of signals when off, making it adept for high voltage signal multiplexing and relay replacement in precision environments.

Physical Properties and Packaging Details of ADG5419BCPZ-RL7

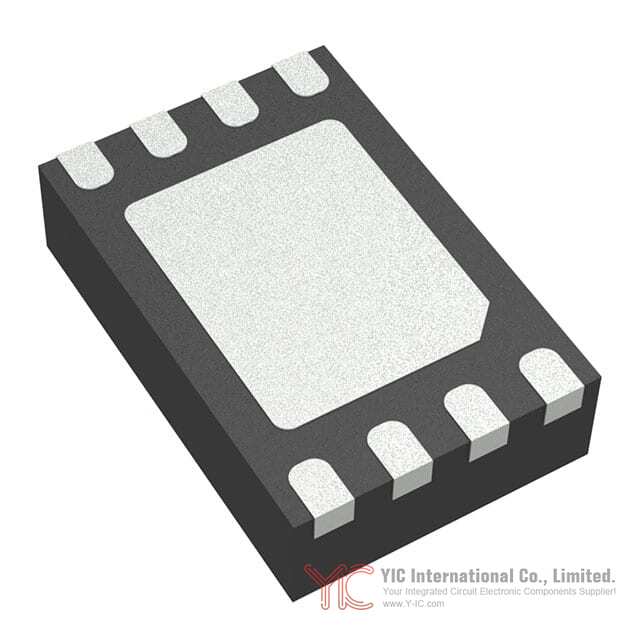

Analog Devices offers the ADG5419BCPZ-RL7 in the industry-standard 8-lead LFCSP as well as 8-lead MSOP packages. The LFCSP variant features a minimal footprint (2 mm × 3 mm), supporting high-density board layouts. Mechanical details, including pin configuration and exposed pads for thermal and substrate connection, align with automated assembly and reflow soldering requirements of modern electronics production.

Durability ESD Safeguards and Latch-up Resistance in ADG5419BCPZ-RL7

In demanding environments, switches are often exposed to high voltage transients and ESD events. The ADG5419BCPZ-RL7 is engineered with robust protection mechanisms: its 8 kV ESD rating (HBM) typically eliminates the need for additional external safety circuitry, simplifying signal path layout and saving PCB real estate. Its unique trench isolation structure shields against latch-up—a high-current state precipitated by ionizing overvoltage events—which commonly plagues conventional junction-isolated CMOS switches.

Common Engineering Uses for ADG5419BCPZ-RL7

The ADG5419BCPZ-RL7 is tailored for use in a broad spectrum of application domains. In automatic test equipment (ATE), it performs high-voltage signal routing with precise control. Analog front-ends and data acquisition systems benefit from its low distortion and flat on-resistance across temperature and voltage swings. Industrial instrumentation leverages its reliability for amplifier gain selection and replacing mechanical relays, reducing maintenance and increasing operational uptime. Its integration in precision signal paths supports improvement of system accuracy in environments where signal integrity is paramount.

Overview of Trench Isolation Technology in ADG5419BCPZ-RL7 Design

Central to the ADG5419BCPZ-RL7’s reliability is its use of trench isolation at the silicon level. Traditional junction-isolated CMOS switches risk SCR-type latch-up during voltage stress, requiring power cycling to recover. The ADG5419BCPZ-RL7 sidesteps this through a dielectric trench separating its N- and P-channel transistors, eradicating the parasitic diode path responsible for latch-up formation. As a result, the switch remains immune even under extended overvoltage or transient conditions, suitable for aerospace and mission-critical industrial installations.

Block Diagrams and Signal Routing Logic for ADG5419BCPZ-RL7

With break-before-make logic implemented at the silicon level, the ADG5419BCPZ-RL7 ensures that unintended signal paths are never momentarily connected during switching—essential for multiplexer systems that demand low crosstalk. Digital control inputs are fully compatible with typical 3 V logic levels (VINH, VINL), simplifying system interconnect and minimizing the need for additional logic translation hardware. The truth tables and pin function definitions are designed to enable quick schematic design and firmware integration.

Exploring Essential Technical Specifications of ADG5419BCPZ-RL7

Engineers evaluating the ADG5419BCPZ-RL7 should pay attention to its on-resistance (RON, typically 13.5 Ω), flatness over the signal range, leakage currents as a function of temperature and voltage, charge injection during switching, off isolation, crosstalk, bandwidth, and switching delays (including transition and enable times). The device provides AC power supply rejection ratio (ACPSRR), total harmonic distortion plus noise (THD+N), and robust channel-to-channel isolation, all supported by detailed graphs in the datasheet. These figures allow accurate performance prediction in high-fidelity signal circuits.

Comparable or Substitute Options for ADG5419BCPZ-RL7

For engineers reviewing alternatives, the ADG54xx family from Analog Devices presents several options with similar latch-up immune, high-voltage capabilities. Models like the ADG5412 and ADG5413 offer multi-channel switch configurations with compatible trench isolation and ESD ratings for expanded signal path requirements. Selection of equivalent parts should be based on channel count, control logic, supply and voltage requirements, and package preference. Always confirm absolute maximum ratings and application compatibility in design validation before specifying replacements.

Conclusion

: Selection considerations for ADG5419BCPZ-RL7 switches

The ADG5419BCPZ-RL7 from Analog Devices stands out as a high-reliability SPDT analog switch for engineers seeking robust, latch-up free signal routing in high-voltage and precision environments. Its latch-up immune trench isolation, wide supply range, strong ESD protection, and flexible mechanical options make it a preferred choice for modern industrial instrumentation, ATE, and precision analog front-end circuits. Product selection engineers and procurement specialists should weigh its electrical characteristics, package compatibility, and system-level robustness to ensure optimal performance in their application and board designs.
