Summary of the AD9910BSVZ Direct Digital Synthesizer

The AD9910BSVZ is a high-performance, direct digital synthesis (DDS) integrated circuit designed and manufactured by Analog Devices Inc. Leveraging a 14-bit digital-to-analog converter (DAC) and an advanced DDS core capable of a maximum internal clock speed of 1 GSPS, the AD9910BSVZ delivers precise sine waveform generation up to 400 MHz. Housed in a 100-lead TQFP exposed pad package (14x14 mm), it is tailored for surface-mount assembly, meeting demanding requirements for compact designs. This device is fully RoHS3 compliant and is specified for operation over the extended industrial temperature range (-40°C to +85°C), ensuring suitability for robust applications in communications, test and measurement, radar, and agile local oscillator synthesis.

Main attributes and built-in capabilities of the AD9910BSVZ

The AD9910BSVZ Direct Digital Synthesizer integrates a range of advanced functions addressing both performance and system flexibility. At its core, it provides:

Integrated 14-bit, 1 GSPS DAC: Facilitates high-fidelity, synthesized analog output with excellent dynamic performance, supporting agile frequency generation up to 400 MHz.

32-bit frequency tuning word: Delivers incredibly fine frequency resolution (as low as 0.23 Hz) necessary for precision applications.

Frequency, phase, and amplitude agility: Enables fast frequency hopping, fine tuning, and flexible signal modulation, suitable for radar, scanning, and polar modulator systems.

Multi-profiling and sweep capabilities: Supports up to 8 independent frequency/phase offset profiles and both automatic linear/arbitrary sweeps, further backed by onboard 1024-word × 32-bit RAM for real-time modulation scenarios.

Advanced noise performance: Exhibits low phase noise (≤ –125 dBc/Hz @ 1 kHz offset for a 400 MHz carrier) and narrow-band SFDR in excess of 80 dB, ensuring clean signals for sensitive use-cases.

Rich modulation support: Offers phase, amplitude, and polar modulation; also includes inverse sinc correction filtering for improved spectral purity.

Integrated PLL and clock multiplier: Accommodates flexible system clocking with crystal or external reference clocks, multiplying input reference frequencies for optimizing internal timing.

Power-down and synchronization: Supports rapid mode switching and multichip synchronization for phased-array systems or multi-source architectures.

Electrical parameters relevant to AD9910BSVZ-based system design

Selecting the AD9910BSVZ for system integration relies on understanding its key electrical specifications. The device accepts reference clocks ranging from 60 MHz to 1 GHz (multiplier disabled), with differential and single-ended input flexibility. When the PLL clock multiplier is enabled, input clocks down to 3.2 MHz are accepted, and output frequencies can be internally multiplied. The 14-bit DAC interface delivers a full-scale output current adjustable from 8.6 mA to 31.6 mA with maximum differential and integral nonlinearity rated at 0.8 and 1.5 LSB, respectively.

Power requirements are served through independent 1.8V and 3.3V rails, with total consumption ranging from approximately 715 mW (single tone mode) to under 40 mW (full sleep mode). Wake-up time from sleep and rapid power-down modes is fast, permitting energy-saving implementations without sacrificing response.

Interface timing is robust, featuring serial port clocking up to 70 Mbps and parallel databus clocking up to 250 MHz. Latency and setup/hold times are tightly specified, allowing for trusted design-in to deterministic systems such as RF test instruments or real-time modulated LOs.

Packaging, environmental, and usage guidelines for AD9910BSVZ application

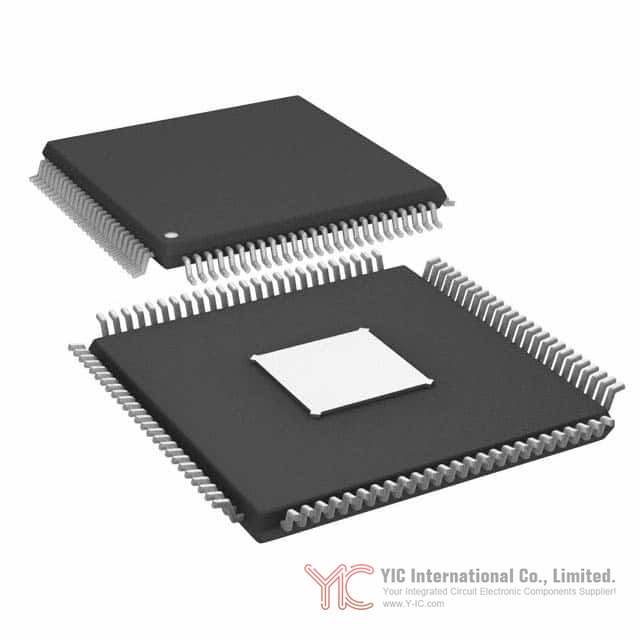

The AD9910BSVZ’s exposed pad 100-TQFP (14x14 mm) package enhances heat dissipation and is designed for surface-mount assembly. The device maintains full performance within operating temperatures from -40°C to +85°C, crucial for industrial, military, and harsh outdoor deployments. It is fully RoHS3 compliant and unaffected by REACH restrictions, and features a JDEC Moisture Sensitivity Level (MSL) rating of 3. The design offers robust ESD protection, but installers should follow established ESD management procedures during handling and assembly.

Block diagram analysis and operational principles of AD9910BSVZ

A closer look at the AD9910BSVZ reveals a sophisticated signal and control architecture. The heart of the device is its 1 GSPS DDS core, directly driving a high-performance 14-bit DAC. Frequency, phase, and amplitude parameters are managed through both serial and parallel interfaces, with additional modulation support via onboard RAM and sweep generators. A built-in PLL multiplies external reference clocks, delivering finely tuned system clocking.

Sin(x)/x correction, amplitude and phase modulation, and multi-profile switching are all routed through a flexible timing and control subsystem. The parallel datapath, digital ramp generator, and multichip sync lines enable advanced signal architectures—ideal for applications ranging from vector signal generators to distributed phased arrays.

Connectivity and control mechanisms for AD9910BSVZ hardware integration

System integration with the AD9910BSVZ is made straightforward via a broad array of hardware control options. The device can be programmed through a serial I/O port for simple command-and-control, or through a high-speed parallel interface when real-time modulation is required. The 32-bit register map allows granular configuration, with hardware pins for synchronization, power-down, and profile switching. Internal RAM and ramp generators further allow dynamic signal shaping, while the sync and clock lines permit precise timing relationships necessary for multi-source synchronization.

Possible alternatives or substitute models for the AD9910BSVZ

For engineers considering design flexibility, it is critical to evaluate equivalent or replacement DDS models that provide comparable performance. While the AD9910BSVZ is unique for its combination of 1 GSPS, 14-bit DAC, and integration features, candidates such as the Analog Devices AD9954 and AD9912 offer closely related function sets at varying speed or resolution points, potentially fitting alternative cost, power, or output requirements. Evaluating signal purity, modulation capability, interface compatibility, and package considerations will guide suitable substitution, especially in redesigns or multi-source procurement.

Conclusion

The AD9910BSVZ Direct Digital Synthesizer from Analog Devices Inc. stands as a premier solution for high-speed, precision frequency synthesis, serving applications that demand fine frequency, phase, and amplitude control. Its integration of advanced digital and analog functions, flexible interface options, and robust package/environmental traits make it a strategic choice for engineers designing demanding RF, test, and instrumentation equipment. Competent evaluation of its feature set, electrical parameters, and practical implementation factors ensures optimal selection and deployment, while awareness of equivalent models supports both design resilience and supply chain efficacy.
