AD9743BCPZ Dual 10-Bit DAC Product Summary

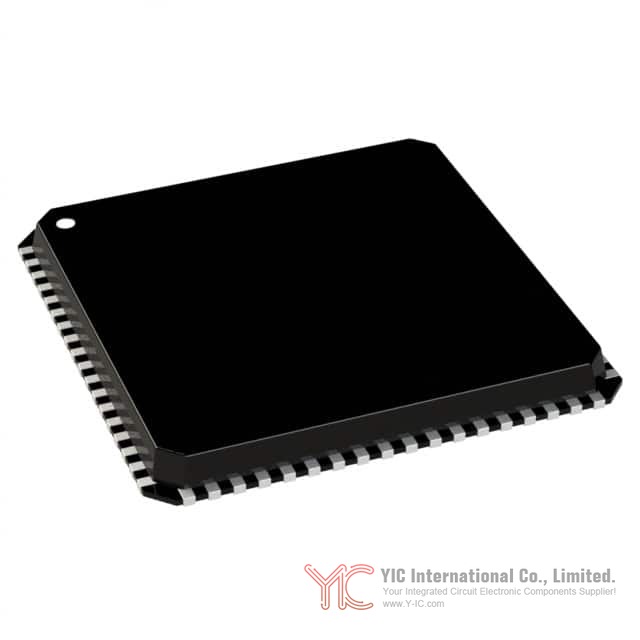

The AD9743BCPZ from Analog Devices Inc. is a high-performance, dual-channel, 10-bit digital-to-analog converter (DAC) tailored for high-speed and wideband applications. Housed in a compact 72-lead LFCSP package (10mm x 10mm), the AD9743BCPZ integrates two high-dynamic-range DACs and flexible interfaces, targeting engineers who require robust signal quality, high sample rates, and low power consumption for demanding systems such as wireless infrastructure, wideband communications, and instrumentation.

Highlights and Main Attributes of the AD9743BCPZ

The AD9743BCPZ distinguishes itself with a blend of advanced features developed for high-frequency and wideband environments:

Dual matched 10-bit DAC cores capable of 250 MSPS

Low noise floor and exceptional intermodulation distortion (IMD), ensuring spectral purity in digitally synthesized signals

Adjacent channel leakage ratio (ACLR) of 80 dBc (single carrier WCDMA at 61.44 MHz IF)

Proprietary switching output architecture supporting output signals beyond the Nyquist frequency

LVCMOS-compatible parallel data interface with selectable dual-port or single-port operation, optimizing integration with FPGAs or ASICs

Differential current outputs, programmable full-scale range from 8.6 mA to 31.7 mA

On-chip 1.2V precision reference and support for both internal and external references

Dual auxiliary 10-bit current DACs for offset correction in quadrature modulator interfaces

Operation from 1.8V and 3.3V supplies with a typical power dissipation of 315 mW

Electrical Characteristics and Performance Specifications of the AD9743BCPZ

A thorough understanding of electrical characteristics is essential for system-level integration:

Output type: Differential, current output

Analog supply voltage (AVDD): 3.13V to 3.47V; Digital supplies (DVDD, CVDD): 1.7V to 1.9V and 3.13V to 3.47V

Input code resolution: 10 bits

Integral nonlinearity (INL): ±0.1 LSB (max)

Differential nonlinearity (DNL): ±0.05 LSB (max)

Operating temperature range: -40°C to +85°C

Compliance with RoHS3 and REACH for green applications

Moisture Sensitivity Level (MSL): 3 (168 hours)

The device is engineered to withstand real-world variations in supply voltage, temperature, and signal bandwidth without degradation in key linearity or spectral parameters, making it ideal for applications such as WCDMA/CDMA2000 base stations, RF generators, and arbitrary waveform generators.

Operational Principles and Block Diagram of the AD9743BCPZ

At its core, the AD9743BCPZ leverages a proprietary quad-switch architecture, significantly reducing code-dependent glitches by shifting nonlinearity errors into a higher frequency domain. This technique is particularly beneficial for direct conversion transmitters and applications where output signal quality in adjacent Nyquist zones is critical.

The device provides three principal operating modes—normal, mix (frequency shifted), and return-to-zero (RZ)—allowing designers to optimize spectral endpoint and power characteristics according to application needs. Key highlights include:

Direct interface with analog quadrature modulators, such as the ADL5370

Software programmability for all features via a standard SPI interface, offering both flexibility and platform agnosticism

Pin-based mode selection for controller-less applications

Communication, Control, and Data Input Options for the AD9743BCPZ

The AD9743BCPZ supports flexible data input through a parallel interface that can be configured into dual-port or interleaved single-port modes. This provides maximum compatibility with both traditional logic devices and advanced digital signal processing platforms:

Dual-port mode assigns separate data buses to each DAC, suitable for systems where independent I and Q data streams are available

Single-port (interleaved) mode requires only one data input bus, utilizing the IQSEL signal to direct alternating samples to the appropriate DAC—ideal when logic pin availability is limited

Configuration and register control are accessible through a standard 4-wire SPI, supporting both MSB-first and LSB-first protocols, multi-byte transfers, and dynamic reconfiguration. Additional pin-based configuration is supported for minimal-software integration.

Analog Output Functionality and Current Production in the AD9743BCPZ

The device’s analog outputs are fully differential, delivering programmable current to the load. The full-scale output (IFS) for each DAC is defined by an external resistor (nominally 10 kΩ) and can be fine-tuned via digital register settings. Output compliance and voltage swing must be referenced carefully to maintain linearity and minimize harmonic distortion. For optimal dynamic performance, the recommended load is 50Ω to ground, with a compliance range up to 1V at 20 mA.

The system architecture encourages differential-mode operation, which provides significant advantages:

Intrinsic cancellation of common-mode noise, distortion, and offset errors

Enhanced output swing and signal power, supporting direct drive for transformers or modulator inputs

Supplementary DACs and System Implementation with the AD9743BCPZ

Onboard auxiliary DACs provide 10-bit resolution and can source or sink up to 2 mA, enabling flexible offset nulling. This feature is crucial for RF systems employing quadrature modulators, where precise baseband dc offset tuning directly improves local oscillator (LO) suppression and spurious performance. Engineers can implement both ac- and dc-coupled correction topologies, leveraging these DACs as programmable analog trim resources.

Power Consumption and Power Solutions for the AD9743BCPZ

The AD9743BCPZ demonstrates excellent power efficiency for high-speed DACs:

Typical quiescent power dissipation is around 190 mW (AVDD), increasing with sample rate up to a typical 315 mW at maximum throughput

Separate power-down modes are available for output stages and functional blocks, allowing significant power savings during idle or low-activity periods

Output disable function provides rapid wake-up for burst-mode applications with minimal standby current

Careful power domain architecture (AVDD, DVDD, CVDD separated) optimizes supply noise performance, crucial for RF and sensitive analog environments

Designers should use appropriate supply sequencing and layout techniques to maintain performance and prevent noise coupling, especially when operating near maximum clock rates.

Environmental and Physical Specifications of the AD9743BCPZ

Reliability for harsh or space-constrained environments is ensured by:

Compliance with RoHS3 and REACH directives

Moisture Sensitivity Level (MSL) 3 for up to 168 hours floor life

JEDEC-standard 72-lead LFCSP-VQ exposed paddle for enhanced thermal dissipation

Operating temperature from -40°C to +85°C, targeting industrial and telecom-grade equipment requirements

Alternative or Substitute Devices for the AD9743BCPZ

Selecting a suitable replacement or variant can streamline system design or facilitate multi-resolution platforms:

AD9741: 8-bit resolution, otherwise pinand feature-compatible for cost-optimized or entry-level signal chains

AD9745: 12-bit version for improved dynamic range in applications requiring finer signal granularity

AD9746: 14-bit version, offering a mid-point between cost and performance among the family

AD9747: 16-bit resolution for premium applications needing the highest linearity and lowest quantization noise

All these devices share the same 72-LFCSP package and are register-compatible, providing seamless migration paths for engineers upgrading or downgrading system resolution. Cross-comparison of their INL, DNL, and speed specifications should be carefully considered relative to the application’s dynamic range requirements.

Conclusion

The Analog Devices AD9743BCPZ is a versatile, high-dynamic-range dual 10-bit DAC developed to meet the performance and integration demands of modern wideband and high-frequency communications equipment. With its advanced architecture, flexible interfaces, low noise, and on-chip auxiliary trimmer DACs, it represents a compelling solution for engineers designing next-generation transmitters or instrumentation platforms. The device’s architecture, combined with robust power and thermal management features and a portfolio of pin-compatible alternatives, facilitates long-term design confidence and system scalability. For engineers and procurement professionals deliberating over DAC selection, the AD9743BCPZ aligns performance, flexibility, and reliability into a comprehensive signal conversion solution.
