| Part Number: | AD9432BSTZ-80 |
|---|---|
| Manufacturer/Brand: | Analog Devices Inc. |
| Part of Description: | IC ADC 12BIT PIPELINED 52LQFP |
| Datasheets: |
|
| RoHs Status: | ROHS3 Compliant |
| Payment: | PayPal / Credit Card / T/T |
| Shipment Way: | DHL / Fedex / TNT / UPS / EMS |
| Share: |
Ship From: Hong Kong
| Quantity | Unit Price |
|---|---|
| 1+ | $104.0743 |
Online RFQ submissions: Fast responses, Better prices!
| Product Attribute | Attribute Value |
|---|---|
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Voltage - Supply, Analog | 5V |
| Supplier Device Package | 52-LQFP (10x10) |
| Series | - |
| Sampling Rate (Per Second) | 80M |
| Reference Type | External, Internal |
| Ratio - S/H:ADC | 1:1 |
| Package / Case | 52-LQFP |
| Package | Tray |
| Operating Temperature | -40°C ~ 85°C |
| Product Attribute | Attribute Value |
|---|---|
| Number of Inputs | 1 |
| Number of Bits | 12 |
| Number of A/D Converters | 1 |
| Mounting Type | Surface Mount |
| Input Type | Differential |
| Features | - |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Base Product Number | AD9432 |
| Architecture | Pipelined |




The AD9432BSTZ-80 from Analog Devices Inc. is a high-performance, 12-bit monolithic analog-to-digital converter (ADC) designed for applications that demand both speed and precision. Housed in a 52-lead LQFP (10x10 mm), the AD9432BSTZ-80 targets engineers developing next-generation systems such as wireless communications infrastructure, base stations, HDTV broadcast equipment, and high-resolution imaging platforms. Its pipelined architecture, integrated track-and-hold, and on-chip references streamline board-level integration, making it a compelling solution for both design and procurement teams seeking a reliable high-speed ADC.
The AD9432BSTZ-80 stands out with an 80 MSPS (million samples per second) sampling rate and 12-bit resolution, offering an optimal balance between speed and dynamic performance. Core specifications and metrics include:
Signal-to-Noise Ratio (SNR): 67 dB at 49 MHz input frequency (105 MSPS configuration)
Spurious-Free Dynamic Range (SFDR): 80 dB at 49 MHz input frequency (105 MSPS)
Analog input bandwidth: 500 MHz, supporting wideband input signals
Typical power dissipation: 850 mW at 105 MSPS
Single 5.0 V analog supply with a dedicated 3.3 V digital output supply compatible with CMOS/TTL logic levels
0 V p-p differential analog input range
Industrial temperature rated: –40°C to +85°C
Performance data, including SNR, SINAD, and distortion across signal frequencies and encode rates, enables engineers to assess suitability for applications such as IF/RF sampling or video digitization. The built-in on-chip buffer and voltage reference further simplify both schematic capture and layout.
At the heart of the AD9432BSTZ-80 is a pipelined, switched-capacitor architecture meticulously optimized for flat dynamic response up to near-Nyquist input frequencies. Dynamic performance is maintained through careful calibration of differential nonlinearity (DNL) and integral nonlinearity (INL), which are factory trimmed for typical accuracy of 0.25 LSB and minimized error across the input range.
The analog inputs implement a differential buffer, self-biased via an on-chip resistor divider to a 3 V common-mode level. For maximum performance—including lowest offset and distortion—driving the device differentially with well-matched impedance is recommended. The analog section is robust against moderate overdrive, but careful attention to allowable input ranges is required during system integration. Driving the ADC in single-ended mode is possible, though with noted performance degradation, making differential drive architecture mandatory in precision designs.
The AD9432BSTZ-80 offers robust and flexible interfacing. Digital outputs are 3.3 V CMOS/TTL compatible, formatted in twos complement, supporting direct connection to standard logic families or FPGAs. The output system includes an out-of-range flag (OR) that is asserted when the digital value reaches maximum positive or negative limits, providing immediate notification of signal excursions beyond the device's input range—a valuable design check for safety-critical systems.
The encode input, which controls sampling, accepts either differential or single-ended input and is recommend to be driven by a low-jitter clock source, such as a crystal oscillator, to avoid degradation of signal integrity. The encode pins are not directly PECL compatible but can be adapted via AC coupling. Proper encode duty cycle and pulse width adherence are essential for achieving datasheet performance at high clock rates.
The device features an internal precision 2.5 V reference, accessible to both internal and external circuitry. By tying the reference input and output pins together and providing a suitable decoupling capacitor, the AD9432BSTZ-80 operates autonomously. For applications requiring calibration or alternate span, the reference pin can be overridden within ±5% for linear adjustment of the ADC input range without significant performance drop.
Integrating the AD9432BSTZ-80 into system designs involves key practical considerations. For analog drive, solutions like the AD8138 differential amplifier can transform single-ended sources to the required differential input, ensuring the necessary 3 V common-mode and minimizing total harmonic distortion. This approach unlocks both DC and AC coupling possibilities, supporting a wide application spectrum from direct RF sampling to high-fidelity video.
Clock quality is a critical determinant of ADC system performance; noise or jitter directly translates to reduced SNR and spurious dynamic range. Careful selection and layout for clock circuitry—often using shielded crystal oscillators or carefully routed differential clock lines—are critical. There is also a short pipeline latency (ten clock cycles) to factor into system timing calculations, particularly with respect to synchronization or real-time data capture.
During initialization or loss of clock, the AD9432BSTZ-80 requires at least 200 ns or 10 consecutive clock cycles to resume valid data—a factor to be considered in systems with dynamic power management or clock gating.

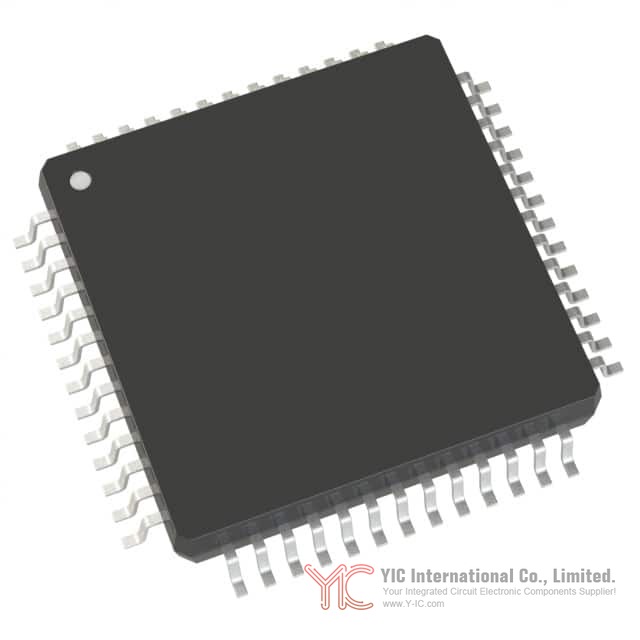

The AD9432BSTZ-80 is available in a standard JEDEC-compliant 52-lead LQFP, as well as a 52-lead TQFP with an exposed pad for enhanced thermal performance. For both options, it is recommended to solder the exposed pad to the board’s ground plane, ensuring both maximum thermal dissipation and improved solder joint reliability.
The device has been qualified over the full industrial temperature range and features ESD protection. Nonetheless, standard PCB handling practices and ESD precautions must be followed throughout assembly to prevent latent damage. For thermally constrained designs, particularly at higher encode rates, layout should facilitate efficient heat removal. Furthermore, average and peak power consumption should be considered in supply selection and thermal design.
In sourcing or updating existing product designs, engineers may consider alternative solutions depending on availability or evolving system requirements. The primary alternative within the same series is the AD9432BSTZ-105, which offers a higher maximum encode rate of 105 MSPS while maintaining otherwise compatible performance and pinout. Care should be taken to verify all power, interface, and dynamic performance requirements against application needs, especially if substituting in existing production lines.
Engineers may also evaluate the AD9444 and AD9240 series from Analog Devices for related applications, though careful comparison of interface logic levels, input ranges, and package compatibility is needed. Substitutions may impact layout, timing, and system integration, so a comprehensive technical review is recommended during equivalent or replacement selection.
: Selecting the AD9432BSTZ-80 for advanced ADC requirements
The AD9432BSTZ-80 12-bit pipelined ADC stands as a highly integrated, high-speed data converter suitable for engineers tasked with building advanced communication infrastructure, imaging systems, or high-resolution instrumentation. Its best-in-class dynamic range, simple integration with standard logic, and comprehensive reference and input buffering solutions reduce both design complexity and procurement risk. With robust documentation, predictable performance, and multiple packaging options, the AD9432BSTZ-80 remains a reliable choice for demanding analog-to-digital conversion tasks. For new designs or upgrades, careful evaluation of input configuration, clocking, and system thermal management will ensure the AD9432BSTZ-80 delivers its full performance potential in the target application.
