Analog Devices Inc. AD8341ACPZ-REEL7

Summary of the AD8341ACPZ-REEL7 Product

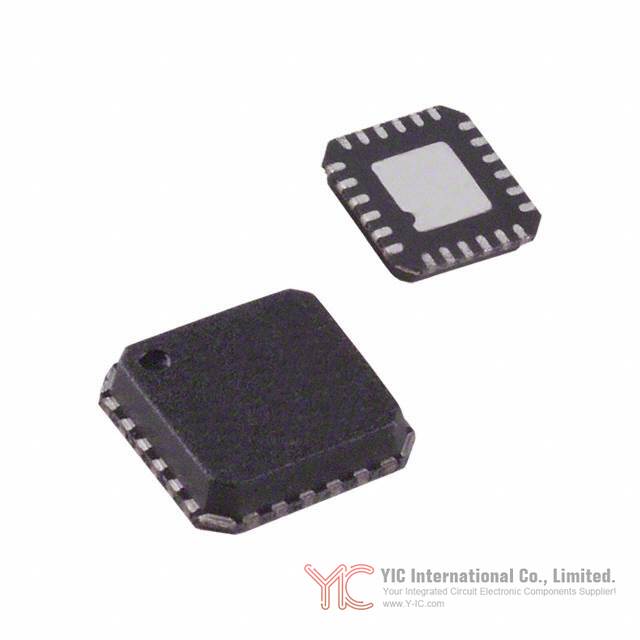

The AD8341ACPZ-REEL7 from Analog Devices Inc. is a high-performance RF vector modulator IC targeted at demanding applications across the 1.5 GHz to 2.4 GHz frequency range. Encapsulated in a 24-lead VFQFN with exposed pad for superior thermal management, this device provides precise amplitude and phase control for modern RF signal processing systems. Built on a 25 GHz SOI complementary bipolar IC process, the AD8341ACPZ-REEL7 ensures excellent linearity, low distortion, and reliable operation over a wide temperature range (-40°C to +85°C), making it a robust solution for engineers developing RF systems in wireless communications and instrumentation.

Main Characteristics and Performance Metrics of the AD8341ACPZ-REEL7

The AD8341ACPZ-REEL7 offers a compelling feature set for RF modulation and signal conditioning. Its fully linear Cartesian vector modulator architecture allows for arbitrary amplitude and phase modulation, supporting continuous magnitude control from -4.5 dB to -34.5 dB and continuous phase control across 0° to 360°. The device delivers an output 1 dB compression point (OP1dB) of 8.5 dBm and an output third-order intercept (OIP3) of 17.5 dBm, essential parameters for maintaining signal integrity in high-linearity applications.

Operational noise performance is another standout characteristic, with an output noise floor of -150.5 dBm/Hz at maximum gain. The AD8341ACPZ-REEL7 supports modulation bandwidths up to 230 MHz, thanks to its optimized baseband amplifier and attenuator design. Fast output disable functionality protects downstream circuitry, while a single 4.75 V to 5.25 V supply supports typical DC power architectures.

Working Principles and Design Structure of the AD8341ACPZ-REEL7

At its core, the AD8341ACPZ-REEL7 features a direct linear RF path, preserving the fidelity of the incoming modulation. The architecture divides the RF input into in-phase (I) and quadrature (Q) components using a multistage RC polyphase quadrature generator. Each path passes through proprietary variable attenuators and baseband amplifiers, whose differential control enables precise vector summation—resulting in programmable amplitude and phase response.

Sum outputs from the I/Q channels are combined and buffered, then delivered to differential, open-collector RF output pins. The device’s output disable pin (DSOP) ensures rapid shutdown (<100 ns response), which can be crucial for protecting sensitive downstream RF stages.

Baseband Management and Modulation Functions of the AD8341ACPZ-REEL7

Amplitude and phase modulation on the AD8341ACPZ-REEL7 is achieved via Cartesian baseband controls applied differentially to the I and Q inputs. These inputs operate within a ±500 mV differential range centered around a typical 0.5 V common-mode level, and can be driven by high-speed DACs or other signal sources. The amplitude and phase settings correlate directly to the magnitude and direction (respectively) of the input vector, according to well-defined trigonometric relationships.

Bandwidth of the control path exceeds 200 MHz, permitting modulation schemes required in wideband applications. For lower-noise or reduced-bandwidth use cases, engineers can add external capacitors to adjust the baseband low-pass characteristics, reducing extraneous noise introduced via control lines. The flexibility of interfacing the AD8341ACPZ-REEL7 with DACs, such as those in the ADI AD977x series, enables integration into digital predistortion, quadrature modulation, and other software-defined RF platforms.

Input/Output Connections and System Integration Factors for the AD8341ACPZ-REEL7

System integration of the AD8341ACPZ-REEL7 requires attention to matching and coupling at both RF and baseband interfaces. The RF input can be driven differentially or single-ended; optimal 50 Ω matching across the 1.5 GHz to 2.4 GHz range is achieved by incorporating series matching inductors (typically 1.2 nH) and AC coupling capacitors.

The differential RF output, a signature feature, is designed for compatibility with standard 50 Ω systems. Engineers can use a broadband or narrow-band 1:1 RF balun for single-ended applications, while attention to balun selection (especially insertion loss and balance) directly influences output power, noise, and linearity. The output disable function provides >30 dB attenuation, allowing on-the-fly control essential in some test, measurement, and transmit path protection scenarios.

Driving the device’s I/Q baseband inputs differentially provides optimal dynamic range and noise performance; single-ended operation is also supported for systems where differential signals are unavailable. Adjustable baseband filtering, implemented via external capacitors at dedicated pins, allows further tailoring of the modulation bandwidth.

Use Cases and Assessment Insights for the AD8341ACPZ-REEL7

The AD8341ACPZ-REEL7 is well-suited for a variety of RF system designs, including but not limited to:

Linearization and predistortion in RF power amplifiers, especially for standards like CDMA2000, WCDMA, and GSM/EDGE, where amplitude and phase accuracy are critical to adjacent channel protection and overall system compliance.

Variable attenuators and phase shifters in smart antenna and beamforming systems, thanks to precise vector modulation.

Single-sideband (SSB) modulation and remodulation functions in advanced radio architectures, leveraging the device’s continuous and linear phase/amplitude control.

Extensive bench and system-level evaluations have demonstrated the AD8341ACPZ-REEL7’s ability to achieve stringent adjacent and alternate channel power ratio (ACPR) requirements. Its performance under demanding modulation profiles remains robust, with low noise and distortion maintained across the entire amplitude/phase range.

Alternative or Substitute Models for the AD8341ACPZ-REEL7

When specifying a vector modulator for similar frequency ranges and applications, engineers may consider alternative models with comparable capabilities. Direct equivalents or replacement devices should offer:

Linear amplitude and phase control across a similar RF frequency range (1.5 GHz to 2.4 GHz)

Support for differential baseband Cartesian input

Comparable output compression and intercept point

Robust noise and modulation bandwidth characteristics

While the AD8341 series is distinctive in its combination of bandwidth, linearity, and integration, products such as the Analog Devices ADL5391 or AD8330, or other vector modulators covering the 1.5 GHz to 2.5 GHz range, may be evaluated as functional alternatives depending on system requirements. However, careful assessment of phase/gain accuracy, control interface compatibility, and package characteristics should be performed during model selection.

Conclusion

: Engineering value of the AD8341ACPZ-REEL7 vector modulator

For engineers involved in RF product design, wireless infrastructure, or advanced instrumentation, the AD8341ACPZ-REEL7 provides an optimized yet flexible solution for high-precision amplitude and phase modulation over a broadly relevant frequency range. Its integrated, linear signal path, fast response, and controllable modulation bandwidth support both legacy and emerging communication standards. The device’s robust design, combined with extensive system-level application data and evaluation board support, make it a reference choice for vector modulation tasks in modern RF architectures.
