Analog Devices Inc. AD7706BN

AD7706BN Product Summary

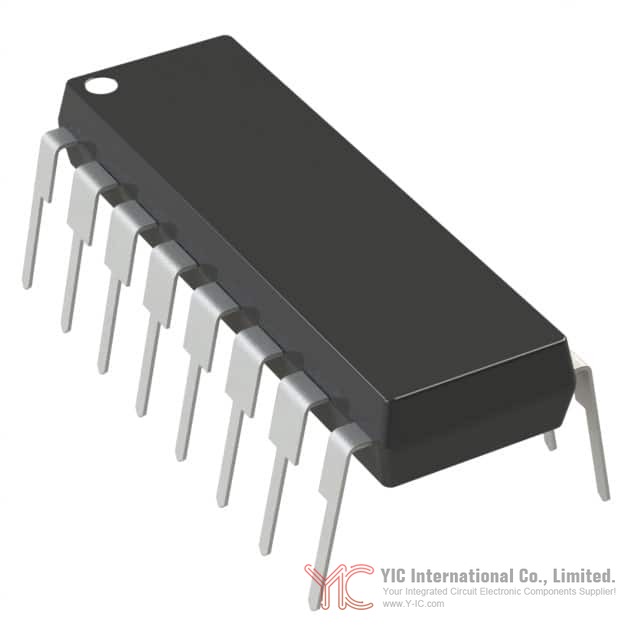

The AD7706BN, manufactured by Analog Devices Inc., is a 16-bit, sigma-delta analog-to-digital converter (ADC) designed for direct connection to low-level signal sources such as transducers and sensors. Integrating a complete analog front end with a programmable gain amplifier, on-chip digital and analog filters, and calibration logic, the device supports applications requiring high accuracy, low power, and flexible system integration. The AD7706BN is housed in a 16-lead PDIP and is optimized for cost, board space, and power in multi-channel sensor interfaces.

Main Characteristics of the AD7706BN

The AD7706BN offers distinct capabilities making it suitable for precise data acquisition in demanding environments:

16-bit resolution with no missing codes for robust performance in high-precision measurements.

3 pseudo-differential analog input channels referenced to a common pin, simplifying multi-sensor designs.

Programmable gain front end ranging from 1 to 128, allowing direct sensor input and minimizing the need for external signal conditioning.

Extremely low nonlinearity (0.003%) and full software calibration support, including selfand system calibration to remove offset and gain errors.

Power consumption as low as 1 mW at 3 V, with a typical standby current of just 8 µA.

Flexible power supply range of 2.7 V to 3.3 V or 4.75 V to 5.25 V, ensuring easy integration into both low voltage and standard 5 V systems.

Industry-standard 3-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP protocols.

How the AD7706BN Works

At its core, the AD7706BN is a precision measurement front end built for microcontroller or digital signal processor-based systems. It can digitize three separate pseudo-differential input signals, each referenced to a dedicated common pin. Input signals, even as low as just a few millivolts, are sampled and amplified by the on-chip programmable gain amplifier (PGA). The sigma-delta modulator and a programmable digital filter further process the signals. Input selection, gain, calibration routines, and filter characteristics are software-configurable using a serial interface and a set of on-chip registers.

A functional block includes:

Sigma-delta ADC core for high noise immunity and dynamic range.

Front-end PGA for tuning sensitivity to match sensor output levels.

Proprietary digital filter with programmable cutoff and notch frequencies (via control registers), setting output rate and filter response as needed for target environments.

On-chip calibration engine and storage for offset and gain corrections.

Input options support both unipolar and bipolar signal configurations, referenced to the device’s COMM input.

AD7706BN Electrical Performance Details

The AD7706BN is designed to excel in low-power, high-performance applications:

Resolution: 16 bits, guaranteed no missing codes.

Nonlinearity: ±0.003%.

Input voltages: Operates with common-mode voltages from GND to VDD. In buffered and unbuffered modes, input handling and source impedance requirements should be carefully considered.

Output noise (typical): Less than 600 nV rms at the lowest gain and bandwidth settings.

Reference input: Differential, accepting high-impedance analog references. Nominal V_REF is 2.5 V for 5 V operation and 1.225 V for 3 V operation.

Operating temperature range: –40°C to +85°C.

Signal Input Processing and Reference Design of the AD7706BN

The AD7706BN accepts three pseudo-differential analog input channels, all referenced to the COMMON pin. The programmable gain amplifier allows for direct interfacing with sensors such as strain gauges, thermocouples, or bridge circuits without the need for additional external amplification. Unipolar input ranges span 0 mV to 2.5 V (for 5 V VDD, 2.5 V reference and gain = 1), and as low as ±10 mV full scale (with high gain). Both buffered and unbuffered modes are supported:

Unbuffered mode: Ideal for low source impedance, with the input tied directly to an on-chip sampling capacitor; absolute input voltages can range from GND –100 mV to VDD +30 mV (with some tolerance down to GND –200 mV at the cost of leakage).

Buffered mode: Allows higher source impedances but restricts input range due to buffer headroom limits.

Reference inputs are differential and must be driven by a stable source. Recommended choices for 5 V operation include the AD780, REF43, and REF192. For 3 V operation, the AD589 and AD1580 are suitable. Low-noise, well-decoupled reference sources are critical for achieving the device’s rated performance.

Digital Filtering Techniques and Noise Reduction in the AD7706BN

A key feature of the AD7706BN is its on-chip, low-pass, sinc³ digital filter, which processes modulator outputs to provide averaged, settled measurement results. The filter bandwidth and first notch (output update rate) are programmable, enabling optimization for line-frequency noise rejection (e.g., 50 Hz/60 Hz) or data acquisition speed. Digital filtering removes much of the broadband and power supply noise that would otherwise degrade low-level measurements. The ADC’s sigma-delta architecture also provides inherent rejection of signals outside the passband, improving measurement accuracy in electrically noisy environments.

Settling time after step changes is determined by the selected filter bandwidth, typically requiring up to four output periods for valid data after a channel change or calibration.

Calibration Methods and Precision Control in the AD7706BN

To achieve – and maintain – high measurement accuracy, the AD7706BN provides both self- and system calibration facilities:

Self-calibration: Internally shorts the analog front end to acquire zero-scale and full-scale readings for correction, compensating for device-internal errors.

System calibration: Uses specified external input voltages (zero and full scale) to correct system-level offset and gain errors, for instance, those introduced by external wiring or sensors.

Calibration data is stored in on-chip registers, one pair per channel.

Calibration should be repeated if temperature, supply voltage, or configuration (gain/filter) settings change, ensuring specified error performance across varying conditions.

Power Requirements, Usage, and Board Design for the AD7706BN

Designed for battery-powered and low-power industrial systems, the AD7706BN draws as little as 320 µA in active mode and even less in standby. It operates directly from single-supply rails between 2.7 V and 5.25 V. Power-saving modes allow system designers to further reduce power when the ADC is idle.

Board layout and grounding are paramount to preserve accuracy, especially given the high resolution and low noise floor of the converter. Analog and digital grounds should be separated and connected at only one star point. Power supply decoupling, controlled layout for reference and analog inputs, and appropriate trace widths are recommended to minimize performance degradation from EMI or supply glitches.

Digital Connectivity and System Integration with the AD7706BN

The AD7706BN integrates a versatile three-wire serial interface, offering compatibility with most common microcontrollers and DSPs—supporting SPI, QSPI, and MICROWIRE protocols. The interface uses a set of control and data registers, accessed via serial commands, to configure:

Channel selection.

Gain and input polarity (unipolar/bipolar).

Output update rate and filter settings.

Mode selection (normal, standby, or calibration).

The DRDY (data ready) pin signals when a new conversion result is available. The interface is robust, with a hardware reset pin and a software reset sequence to facilitate reliable operation in embedded environments. Software routines and flowcharts are available for rapid integration with generic 8-bit microcontrollers (e.g., 68HC11 or 8051), as well as DSPs.

Real-World Uses for the AD7706BN

The device’s combination of low power, flexible inputs, and high accuracy makes it particularly well-suited for:

Portable or loop-powered data acquisition instruments, such as smart industrial transmitters.

Precision sensor interfaces: pressure, temperature (with thermocouples or RTDs), strain measurements, and other analog transducers.

Battery monitoring systems, leveraging the dual-channel structure (with an external multiplexer, if more than two points are needed).

Process-control and industrial monitoring applications, where robustness to electrical noise and parameter drift are essential.

Alternative or Replacement Options for the AD7706BN

When considering alternative devices or direct replacements for the AD7706BN, engineers should evaluate compatible parts based on channel count, input type (differential or pseudo-differential), resolution, interface options, and supply voltage:

Analog Devices AD7705: Nearly identical, but with two fully differential input channels instead of three pseudo-differential inputs. Ideal if true differential measurement is required, with similar noise and digital architecture.

Texas Instruments ADS1213: A 16-bit delta-sigma ADC with similar input configuration and digital filtering, appropriate for industrial and sensor environments, though with different interface details.

Texas Instruments ADS1115: A newer, high-resolution delta-sigma ADC featuring four single-ended or two differential inputs, integrated reference, and I²C interface (note protocol difference).

Maxim Integrated (Analog Devices) MAX11200: Ultra-low-power, 24-bit delta-sigma ADC suitable for similar sensor front-end applications with wide supply voltage range.

Selection of an equivalent or replacement part must also consider package, pinout, and supply voltage compatibility.

Conclusion

The Analog Devices AD7706BN is a robust, high-precision, low-power sigma-delta ADC specifically engineered for direct sensor interface applications in modern microprocessor and processor-based systems. Its programmable gain, extensive calibration features, low power consumption, and flexible input architecture provide design engineers with a sophisticated, ready-to-integrate solution for a wide range of precision measurement and data acquisition tasks. With careful application of recommended layout, interface, and calibration practices, the AD7706BN delivers a competitive edge in industrial and portable sensor systems. When selecting an ADC solution, product selection engineers and procurement professionals should consider the AD7706BN’s strengths, as well as its established alternatives, in the context of their systems’ power, accuracy, and integration requirements.
