Analog Devices Inc. ADV7186WBBCZ-TL-RL

Product Summary ADV7186WBBCZ-TL-RL Video Decoder and Display Processor

The ADV7186WBBCZ-TL-RL from Analog Devices Inc. is a high-performance integrated circuit designed to serve as both a video decoder and display processor. Housed in a compact 196-CSPBGA (12x12 mm) package, this device addresses the need for robust signal conversion and advanced video processing in modern automotive, industrial, and consumer display systems. The ADV7186WBBCZ-TL-RL supports a broad range of analog and digital standards, offering engineers a versatile platform for interfacing various video sources with contemporary LCD and projector displays.

Main Attributes of the ADV7186WBBCZ-TL-RL

At the core of the ADV7186WBBCZ-TL-RL’s appeal is its comprehensive feature set. The device incorporates a 3D comb video decoder with support for NTSC, PAL, and SECAM color standards, and includes advanced 2D/3D motion-detecting comb filters for enhanced image quality. Time-base correction with frame synchronization, vertical and horizontal peaking filters, and color space conversion (CSC) capabilities further optimize the input and output signal paths.

The platform is equipped to deliver hardware-based downscaling and upscaling between QVGA and WXGA resolutions, supporting a wide variety of display panel requirements. Overlay capabilities allow for integration with external graphical human-machine interfaces (HMIs) or on-screen displays (OSD), enabling greater flexibility in embedded design. Furthermore, the ADV7186WBBCZ-TL-RL features Edge Adaptive Interlaced-to-Progressive conversion and Adaptive Contrast Enhancement, addressing key requirements in automotive vision and infotainment systems.

ADV7186WBBCZ-TL-RL Support for Analog and Digital Video Inputs

The ADV7186WBBCZ-TL-RL boasts an extensive suite of input support to maximize compatibility with legacy and modern video sources. Its analog front-end utilizes a single low-power 10-bit analog-to-digital converter (ADC) capable of handling single-ended or fully differential signals across six multiplexed channels. Antialiasing filtering on three channels supports a broad spectrum of input standards, including composite, S-video, and component (progressive and interlaced formats from SD to Full HD).

The device is additionally equipped to process RGB graphics inputs up to 800 × 600 at 60 Hz (SVGA), expanding its use beyond traditional video into industrial monitor and infotainment display systems. On the digital side, a flexible 24-bit pixel input interface and an integrated LVDS receiver (with OpenLDI mapping) round out the broad spectrum of supported signal types, ensuring seamless integration into existing and emerging designs.

Output Ports and Display Processing Features of the ADV7186WBBCZ-TL-RL

To facilitate diverse display connectivity, the ADV7186WBBCZ-TL-RL supplies multiple output pathways. It features a 24-bit pixel output interface and an LVDS transmitter (following OpenLDI standards), making it suitable for driving a wide range of modern LCD panels. An independent BT.656 output channel is also available for simplified connection to legacy display controllers.

The device integrates a timing controller (TCON) for LCD panels and pulse width modulation (PWM) for backlight control, supporting direct display interfacing and robust image management. Programmable gamma correction allows for customized image rendering tailored to specific display characteristics.

Built-in Functions and Enhanced Features of the ADV7186WBBCZ-TL-RL

The ADV7186WBBCZ-TL-RL’s integration extends beyond basic decoding and formatting functions. Fast boot and bitmap load capabilities from external EEPROM enhance system responsiveness and user customization. Hardware-based bitmap overlays can be implemented without requiring external memory, reducing both system complexity and cost.

For advanced system synchronization and management, the device provides a programmable interrupt output and features a spread spectrum output pixel clock, which contributes to reduced electromagnetic interference—especially valuable in noise-sensitive automotive environments. Additional support for low power mobile DDR (LPDDR) and DDR2 SDRAM interfaces increases flexibility for memory-intensive applications.

Common Use Cases for the ADV7186WBBCZ-TL-RL

The ADV7186WBBCZ-TL-RL is targeted at high-growth application areas requiring reliable video decoding and advanced display processing. Key sectors include automotive navigation and infotainment head units, central console and rear-seat entertainment monitors, parking guidance and advanced driver-assistance system (ADAS) vision platforms, pico and mini projectors, as well as industrial monitor and specialized display applications. Its robustness, flexibility, and high integration level make it well-suited for next-generation connected vehicles and smart visual interfaces.

Packaging Details and Automotive Certifications of the ADV7186WBBCZ-TL-RL

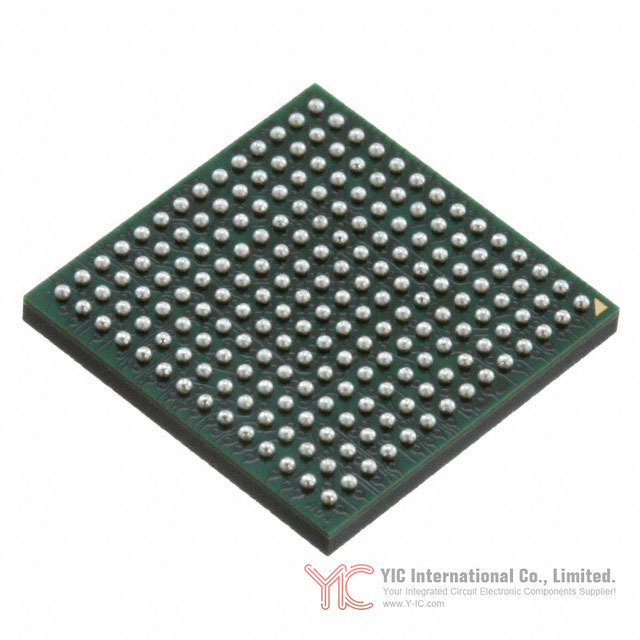

The device is offered in a space-efficient 196-ball CSPBGA package (12x12 mm), supporting high-density board layouts and integration in compact form factors. Importantly, the ADV7186WBBCZ-TL-RL meets the stringent requirements for automotive qualification, ensuring reliability under extended temperature cycles and continuous operation—key considerations for engineers working in the automotive electronic domain.

Comparable or Replacement Options for the ADV7186WBBCZ-TL-RL

When evaluating the ADV7186WBBCZ-TL-RL, engineers may consider alternative models within the ADV7186 series, as well as video decoder/display processors from other suppliers that meet the same signal compatibility, automotive qualification, and integration standards. Within Analog Devices’ portfolio, the ADV7186BBCZ and ADV7186BBCZ-T offer different combinations of LVDS transmit/receive and TCON functionality, providing direct replacements for variant-specific requirements. Careful analysis of interface support and feature subsets is advised to match system needs in the case of supply chain changes or design updates.

Conclusion

The ADV7186WBBCZ-TL-RL from Analog Devices represents a highly capable solution for modern video decoding and display processing challenges, especially in automotive and industrial environments. Its advanced processing, signal compatibility, and integrated display support streamline development and enable flexible, robust products with reduced bill of materials complexity. With a range of integrated features catering to both analog and digital domains, the ADV7186WBBCZ-TL-RL stands out as a compelling choice for engineers and procurement professionals seeking a reliable and versatile video interface IC.
