Product Summary ADSP-21567BBCZ6 SHARC+ Processor Family

The ADSP-21567BBCZ6 SHARC+ processor from Analog Devices is a member of the high-performance SHARC+ DSP family, designed for advanced signal processing tasks in embedded systems. With clock speeds reaching up to 1 GHz and featuring extensive floating-point capabilities (32-, 40-, and 64-bit), the device targets demanding applications across automotive, professional audio, and industrial sectors. Its inclusion of a SHARC+ SIMD core, significant on-chip memory, and advanced Digital Audio Interfaces makes it a go-to choice for engineers designing systems with stringent DSP performance and integration requirements.

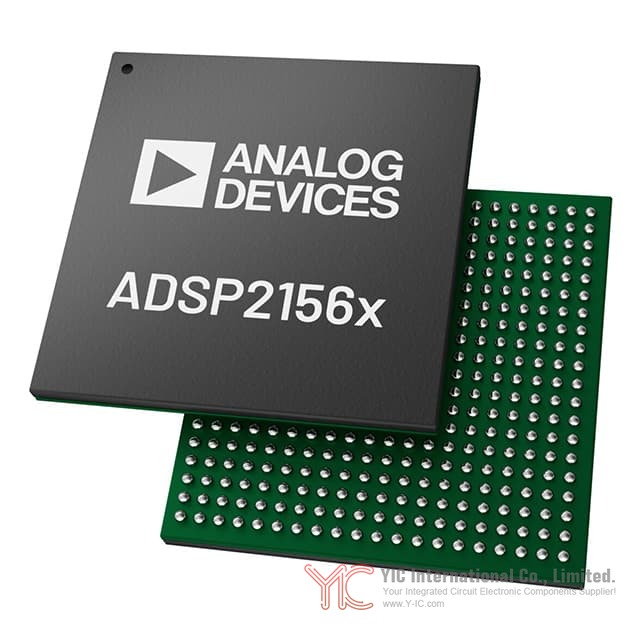

The ADSP-21567BBCZ6 is available in a 17 mm × 17 mm, 400-ball CSP_BGA package (0.8 mm pitch) that complies with RoHS standards, supporting installation flexibility and environmental specifications crucial for modern electronics.

Core Architecture and Fundamental Characteristics of the ADSP-21567BBCZ6 SHARC+ Processor

At the heart of the ADSP-21567BBCZ6 lies the SHARC+ SIMD core, which builds on the Super Harvard Architecture and offers enhanced features such as cache improvements and branch prediction, maintaining instruction set compatibility with earlier SHARC generations. The core operates with two parallel processing elements in SIMD mode, enabling highly efficient parallel execution of math-intensive algorithms—essential for tasks such as digital filtering and fast Fourier transforms (FFT).

Key architectural highlights include:

Dual computational engines (ALU, multipliers, shifters) supporting parallel instruction execution.

Support for 32-, 40-, and 64-bit floating-point, along with fixed-point data types.

Advanced instruction set with compact 48-, 32-, and 16-bit opcodes (VISA support) for efficient code density.

Single-cycle access to core memory and optimized DMA pathways for high-throughput data operations.

Hardware mechanisms for rapid context switching, universal status registers, and byte/word addressing flexibility, allowing seamless adaptation to a variety of algorithmic and protocol requirements.

Built-in Memory Structure of ADSP-21567BBCZ6 SHARC+ Processor

One of the defining strengths of the ADSP-21567BBCZ6 is its sophisticated hierarchical memory design. The processor features:

5 Mb (640 kB) Level 1 (L1) SRAM with optional parity and flexible cache configuration; accessible with single-cycle latency.

Configurable L1 memory blocks for code and data, with independent paths for fast parallel access.

Large on-chip Level 2 (L2) SRAM—up to 8 Mb (1 MB) with ECC protection and banked architecture for concurrent access.

Level 3 (L3) interface optimized for low power, providing a 16-bit wide channel to DDR3/DDR3L SDRAM, critical for applications with extensive data set requirements or real-time audio buffering.

Instruction and data cache controllers with user-controlled locking, invalidation, and flush—enabling advanced cache management strategies appropriate for complex software architectures.

Support for secure, one-time programmable memory (OTP) for custom keys and secure boot provisioning.

This flexible memory hierarchy allows designers to optimize data throughput, minimize latencies, and tune memory protection mechanisms against software and hardware faults or attacks.

System Framework and Integrated Resources of ADSP-21567BBCZ6 SHARC+ Processor

The ADSP-21567BBCZ6 implements a robust system infrastructure centered around hierarchical crossbar architecture for efficient data movement. System highlights include:

High-efficiency System Crossbars (SCBs) with full-duplex concurrent transfer capability and secure bus access models.

Advanced DMA controllers supporting descriptor-based and register-based operations, with support for linear, circular, scattered/gathered, and 2D buffer structures, enabling high flexibility in data streaming designs.

Cyclic Redundancy Check (CRC) engines embedded in DMA channels for continual data verification, essential in safety-critical or high-integrity communication environments.

Comprehensive event handling, including interrupt prioritization, nesting, and distributed security and fault management via a dedicated System Event Controller (SEC).

Trigger Routing Units (TRU) for coordinated peripheral and DMA interactions—crucial for systems requiring synchronized multi-source data processing.

Integrated safety features such as multi-parity, ECC correction on RAM, watchdog timers (WDT), and programmable fault response logic—all important for applications in automotive and industrial automation.

Processor I/O and Peripheral Connections in ADSP-21567BBCZ6 SHARC+ Processor

Meeting the needs of modern embedded systems, the ADSP-21567BBCZ6 is endowed with an extensive array of peripherals:

Dynamic Memory Controller (DMC) supporting high-speed DDR3/DDR3L memory interfaces.

Two Digital Audio Interfaces (DAI) with signal routing units (SRU), allowing flexible software-controlled interconnection for audio-centric applications.

Eight synchronous serial ports (SPORTs) compatible with DSP, TDM, I2S, packed I2S, left/right justified modes, facilitating integration with ADCs/DACs and codecs.

Eight ASRC blocks supporting high-performance (up to 140 dB SNR) sample rate conversion with jitter attenuation capability.

S/PDIF transmitter/receiver units, AES3 compatible, with support for a broad sample rate range.

Precision Clock Generators (PCG), UART ports with LIN protocol support, multiple SPI and OSPI interfaces (up to 8-bit wide, DDR mode capable), and MediaLB interface for automotive and infotainment networking.

Multichannel general-purpose timers, counters (CNT for quadrature/binary codes), programmable GPIOs (interrupt and pin multiplexing), and housekeeping ADC for monitoring analog signals.

Dedicated hardware accelerators including FIR and IIR blocks, each with deep memory and high MAC throughput, and modular concurrent operation capability.

Electrical Properties and Packaging Information for ADSP-21567BBCZ6 SHARC+ Processor

For board-level design, the processor is available in a 400-ball CSP_BGA package (17 mm × 17 mm, 0.8 mm ball pitch) or a 120-lead LQFP_EP (0.4 mm pitch). Detailed signal description tables for each package provide necessary pin mapping, multiplexing options, and assignment information for PCB layout and integration.

Electrical and timing specifications encompass core clock, system clock, peripheral interface clocks, driver strength, and capacitance loading. Designers are guided by comprehensive rise/fall time graphs, input/output current characteristics, and ESD/absolute ratings. The device adheres to JEDEC standards for packaging.

Protection, Security, and Reliability Attributes of ADSP-21567BBCZ6 SHARC+ Processor

The ADSP-21567BBCZ6 integrates critical safety and security features:

Hardware cryptographic accelerators for AES, DES/3DES, ARC4, SHA-1/2/HMAC, and MD5; supporting secure boot, authentication, and integrity.

Secure key storage and debug access restriction, making it compliant with automotive and industrial cybersecurity requirements.

Error detection and correction across all RAM hierarchies—ECC on L2, parity on L1 and peripheral memories, and continuous CRC protection during transfers and boot.

Fault management infrastructure with event/fault controller, watchdog timers, memory error controller (MEC), and system-level fault granularity (signal watchdogs).

Multiparity and ECC protection for real-time error correction, important for ISO 26262 automotive functional safety specifications.

System Integration Guidelines for the ADSP-21567BBCZ6 SHARC+ Processor

Effective use of the ADSP-21567BBCZ6 necessitates attention to system and board-level design:

Configurable clock generation with two independent PLLs (CGUs), supporting variable frequencies for core, DDR memory, and peripherals.

Programmable reset control unit (RCU) with multiple reset source/target definitions to ensure safe state transitions for the full system or core-only operations.

Power domain management across five separate voltage rails, with sequenced power-up/power-down guidelines to avoid voltage-induced faults.

Thermal management support (on-chip TMU, package-level thermal models), ensuring device reliability across operating temperature range and heat dissipation needs.

Boot mode selection for flexible flash or external host memory loading, including secure boot with ECC/AES encryption and authentication.

Development Environment and Supporting Tools for ADSP-21567BBCZ6 SHARC+ Processor

Analog Devices supports the ADSP-21567BBCZ6 with a comprehensive suite of development tools:

CrossCore Embedded Studio (CCES), an Eclipse-based IDE for C/C++ development, code generation, debug, algorithm modules, and board support packages (BSPs).

EZ-KIT evaluation systems (EV-21569-EZKIT and compatible SOM/carrier boards) for rapid prototyping, in-circuit debug, and system-level validation.

IEEE 1149.1 JTAG emulation support for full-speed debug and trace, with technical resources provided for target board integration.

Middleware and algorithmic add-ins available through the CCES platform for audio, file systems, TCP/IP, USB stacks, and signal chain modeling.

Alternative or Substitute Models for ADSP-21567BBCZ6 SHARC+ Processor

Engineers seeking alternative solutions within the SHARC+ processor family may consider the following models, each tailored to specific performance and integration requirements:

ADSP-21562 / ADSP-21563: Entry-level SHARC+ models with variances in on-chip memory and peripheral sets.

ADSP-21565 / ADSP-21566: Mid-tier options, balancing processing power and integration.

ADSP-21569: Full-featured flagship SHARC+ model, offering additional performance headroom and advanced features for the most demanding applications.

Selection across this SHARC+ lineup depends on the required computational throughput, memory capacity, peripheral integration, and environmental ratings (such as automotive-grade reliability). Comparative study of each model's datasheet is recommended to best match system requirements.

Conclusion

The ADSP-21567BBCZ6 SHARC+ processor stands out as a feature-rich solution, ideal for high-performance signal processing applications demanding high-speed floating-point computation, robust memory hierarchies, advanced security and safety compliance, and versatile peripheral integration. Its architecture and development ecosystem facilitate streamlined system prototyping, safe deployment in automotive and industrial environments, and rapid customization for audio, control, and multimedia processing tasks. Selection engineers and product procurement professionals will find the ADSP-21567BBCZ6 a strong candidate for embedded DSP-centric designs, with scalable alternatives available within the same SHARC+ family to suit various engineering targets.
