Analog Devices Inc. ADG509AKN

Summary of the ADG509AKN Analog Multiplexer

The ADG509AKN from Analog Devices Inc. is a high-performance CMOS analog multiplexer, specifically designed for applications that require efficient signal routing and minimal leakage. Characterized as a dual 4-channel (SP4T x 2) switch, the device enables selection of one of four differential inputs to a common differential output via digital address lines. With an on-resistance of approximately 4500Ω and robust temperature operational capability, the ADG509AKN expands solution flexibility for mixed-signal circuits, instrumentation, and precision analog signal multiplexing, supporting both single and dual power supplies across a wide voltage range.

Main Attributes and Technology Behind the ADG509AKN

Central to the ADG509AKN’s value proposition is its design on Analog Devices’ proprietary LC²MOS process. Highlights include:

Supply voltage operation from 10.8 V to 16.5 V, for both single and dual supply configurations.

TTL and 5 V CMOS logic compatibility on control inputs, simplifying integration into mixed-voltage logic environments.

Low power dissipation, with a maximum of 28 mW, supporting thermal efficiency in dense system layouts.

Minimal leakage currents—typically 20 pA—making the device exceptionally well-suited for high-precision analog front ends and data acquisition circuits.

Guaranteed break-before-make switching action, essential for signal integrity, ensuring that input channels do not momentarily short during switching transitions.

Extended signal range up to the full span from VSS to VDD, supporting wide dynamic signals in instrumentation and control.

Electrical Specifications and Performance Metrics of the ADG509AKN

The ADG509AKN is characterized by strong electrical robustness and operational precision. Key performance metrics include:

Dual supply: VDD from 10.8 V to 16.5 V; VSS from -10.8 V to -16.5 V. Also functional on single-supply setups with VSS tied to ground.

On-resistance (RON): Approximately 4.5 kΩ, with flatness supporting consistent analog signal quality across the multiplexed channels.

Switching speed: Fast transition times, with typical test circuits demonstrating prompt response to digital address changes.

Leakage currents: With channel off-leakage around 20 pA (typ.), the device limits error sources in high-impedance measurement applications.

Input signal range: Handles signals from VSS to VDD, guarding against clipping and distortion for full-scale analog input.

Power supply currents (IDD): Favorable for low-power systems, allowing deployment in battery-powered and low heat-dissipation designs.

Pinout Details and Operational Functions of the ADG509AKN

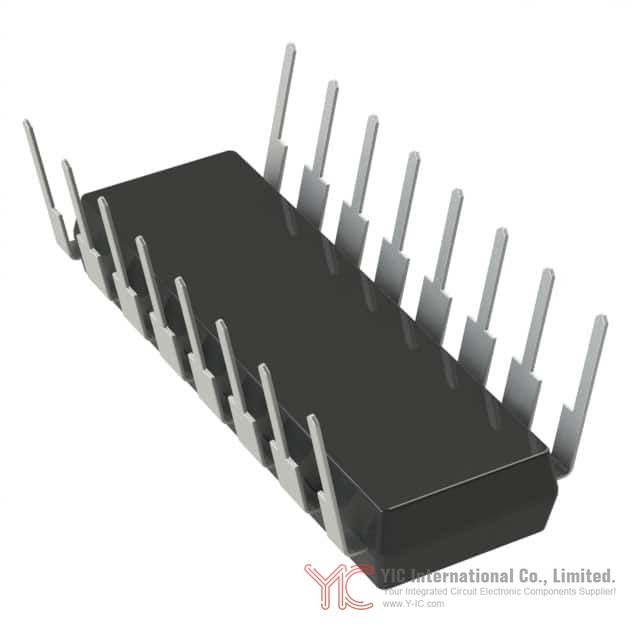

Offered in a standard 16-lead dual in-line package (PDIP) as well as alternative SOIC and PLCC/LCC forms, the ADG509AKN features a clearly defined pinout facilitating straightforward system integration. Two digital address lines and an enable input govern channel selection, while the break-before-make guarantee is implemented internally. The device truth table allows deterministic channel control for precision signal selection.

Available Package Types and Physical Dimensions of the ADG509AKN

To support wide-ranging mechanical requirements, the ADG509AKN is available in:

16-lead PDIP (Plastic Dual In-Line Package, Narrow Body)

16-lead SOIC

20-lead PLCC (Plastic Leaded Chip Carrier)

20-terminal LCC (Leadless Chip Carrier)

Compliant with JEDEC standards, the packages are dimensioned for compatibility with standard PCB design practices. This flexibility benefits engineers seeking drop-in replacements or mechanical fit across new and existing platforms.

Use Cases and Technical Guidelines for the ADG509AKN

Thanks to its low leakage, high signal range, and logic compatibility, the ADG509AKN excels in data acquisition systems, precision instrumentation, programmable analog front-ends, and control systems. Its break-before-make operation mitigates the risk of unwanted cross-channel transient currents—vital when switching sensitive analog signals. In single-supply DAC applications, for example, the ADG509AKN’s low charge injection simplifies voltage setting with minimal error, as demonstrated in multiplexed DAC output conditioning.

When designing with the ADG509AKN, attention should be paid to PCB layout for minimizing parasitics, careful routing of analog signals to avoid coupled noise, and robust ESD handling during assembly, as specified by the device’s ESD caution requirements.

Alternative or Substitute Devices for the ADG509AKN

For engineers evaluating alternatives, the ADG509AKN can be considered a superior alternative to functionally similar multiplexers such as the DG509A and HI-509. Similarly, the ADG508A (from the same Analog Devices family) provides a one-of-eight (SP8T) configuration for applications requiring more channels per chip. Selection among these devices should be guided by system channel count, signal range, and integration constraints.

Conclusion

on the ADG509AKN’s suitability for system designs

The ADG509AKN analog multiplexer stands out for its balance of precision, versatility, and robust operational parameters. Its extended temperature range, logic compatibility, low leakage, and multiple package options make it highly adaptable for both new designs and legacy system upgrades. Procurement teams and product selection engineers can confidently specify the ADG509AKN for projects demanding reliable analog signal switching, ensuring future-proof solutions backed by a broad application and replacement landscape.
