Analog Devices Inc. AD8293G80ARJZ-RL

Summary of AD8293G80ARJZ-RL Instrumentation Amplifier Lineup

The AD8293G80ARJZ-RL from Analog Devices Inc. is a precision instrumentation amplifier integrated circuit designed to deliver high accuracy and robust performance in compact board layouts. As part of the AD8293Gxx family, the AD8293G80ARJZ-RL provides a fixed gain of 80, and its counterpart, AD8293G160, offers a gain of 160. Housed in a space-efficient SOT-23-8 package, the device is engineered to minimize ancillary components for streamlined design integration. It targets engineers developing circuits for current sensing, strain gauge measurement, and other precision applications where size, power, and error minimization are critical.

Main Characteristics and Technical Benefits of the AD8293G80ARJZ-RL

The AD8293G80ARJZ-RL delivers a host of performance-enhancing features for demanding analog front-end designs:

Low offset voltage (maximum 20 μV) and low offset drift (maximum 0.3 μV/°C) ensure minimal error over temperature and operating conditions.

Integrated gain and filter resistors reduce the total required external component count, simplifying the design and assembly process.

Rail-to-rail output enables maximum signal swing even in single-supply configurations.

Wide supply voltage range from 1.8 V to 5.5 V offers flexibility for portable and low-power systems.

High common-mode rejection ratio (CMR) at 140 dB (typical) and high power supply rejection (PSR) for robust operation in electrically noisy environments.

Low noise performance (0.7 μV p-p over 0.01 Hz to 10 Hz) ensures superior signal fidelity for sensitive measurements.

Available in two pre-set gain models (80, 160) for standardization and design convenience.

Buffered reference input eliminates the need for external op amps in setting output reference levels.

Electrical Specifications and Performance Metrics of the AD8293G80ARJZ-RL

The core electrical performance parameters of the AD8293G80ARJZ-RL instrumentation amplifier, tested under typical conditions (V_CC = 5 V, V_REF = 3.3 V, T_A = 25°C), include:

Input offset voltage: 20 μV maximum

Offset voltage drift: 0.3 μV/°C maximum

Gain drift: 25 ppm/°C maximum

Bandwidth and noise tradeoff: higher bandwidths yield increased noise, designable via external capacitor selection

Output swing: Rail-to-rail at both single (1.8 V min) and dual supply configurations

Input voltage range: Differential inputs limited to ±5.0 V or supply voltage, whichever is smaller

Load compatibility: Appropriate for direct ADC driving, with internal 5 kΩ series resistor at designated output pin (ADC OUT)

Engineering Applications and Use Cases for the AD8293G80ARJZ-RL

AD8293G80ARJZ-RL is optimized for instrumentation tasks that demand accuracy, minimal thermal drift, and small footprint. Key engineering applications include:

Current sensing in industrial and process control

Strain gauge and pressure sensing for load cells and mechanical transducers

Laser diode control loops in precision optical systems

Thermocouple amplifiers for temperature measurement circuits

Compact and portable medical electronic devices

Its low noise and drift characteristics are particularly beneficial in scenarios where error accumulation cannot be tolerated, such as differential sensor interfacing and signal chain applications requiring high channel density.

Operating Principle and Design Structure of the AD8293G80ARJZ-RL

At its core, the AD8293G80ARJZ-RL employs a precision current-mode autocorrection topology combined with a high-performance auto-zero amplifier. Differential input voltages are converted to signal currents, processed through matched transistors and resistors, and then translated to voltage output by the amplifier stage. Continuous autocorrection mechanisms compensate for offset-induced errors, including those arising from changes in supply and input common-mode voltage.

This architecture gives rise to excellent CMR and PSR characteristics, maintaining consistent performance across the full industrial temperature range (-40°C to +85°C) and varying supply conditions. The internal autocorrection also suppresses low-frequency (1/f) flicker noise, providing lower DC noise than conventional instrumentation amplifiers, which is instrumental in precision and low-frequency measurement environments.

Integration Guidelines, Output Filtering, and Reference Pin Usage for AD8293G80ARJZ-RL Implementation

The AD8293G80ARJZ-RL is highly integrated, with critical gain and filter resistors embedded in the die, reducing board area and simplifying design. Two outputs are available: a direct OUT pin for general signal extraction and an ADC OUT pin with an integrated 5 kΩ series resistor for anti-aliasing filter implementation.

For output filtering, only external capacitors are needed to complete primary and secondary low-pass filters for suppressing switching noise and clock feedthrough. A recommended overall bandwidth of 500 Hz is achieved by combining two single-pole 700 Hz filters (using R2 and C2 for the primary; R3 and C3 for the secondary), with capacitor values calculated directly from the internal resistor values.

Reference setting via the REF pin is flexible: optimal performance in single-supply systems is achieved with precision external references, while simpler designs may use resistor dividers between V_CC and ground. Notably, the device’s autocorrection design eliminates the need for an external buffer to maintain high CMR, unlike conventional three-op-amp instrumentation architectures.

Recommendations for Power Supply, Input Protection, and PCB Design with AD8293G80ARJZ-RL

AD8293G80ARJZ-RL uses synchronized internal clock signals for autocorrection, necessitating proper power supply bypassing to suppress internal ripple and avoid increased noise or offset. Placement of a 0.1 μF ceramic surface-mount capacitor close to the supply pins is strongly recommended, with configurations adjusted for single- and dual-supply environments.

ESD protection circuitry is integrated, but for input voltages exceeding supply rails, engineers should select external series resistors to limit current to 5 mA, preserving device reliability under potential fault conditions.

Package Details and Pinout Information for the AD8293G80ARJZ-RL Instrumentation Amplifier

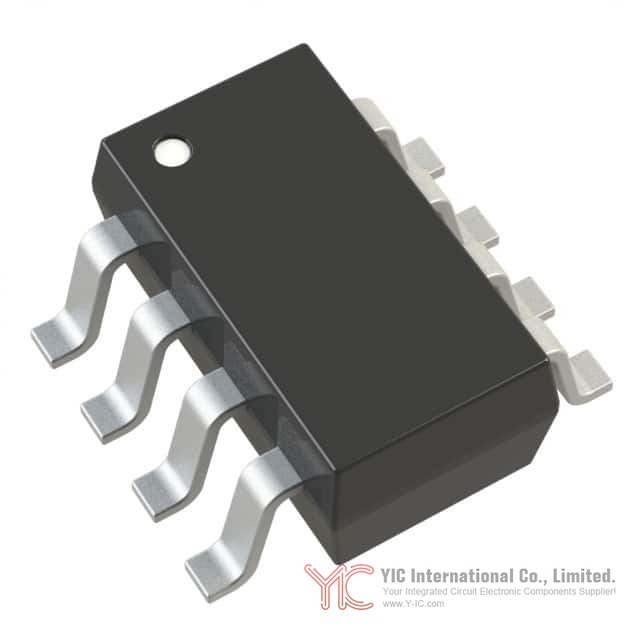

The AD8293G80ARJZ-RL is available in an industry-standard 8-lead SOT-23 (RJ-8) package, compliant with JEDEC MO-178-BA standards. The small outline enables high channel density and minimal footprint, ideal for portable, modular, or constrained board designs. Pin configuration is optimized for simplified routing in analog measurement circuits.

Alternative Models and Pin-Compatible Replacements for the AD8293G80ARJZ-RL

Engineers considering the AD8293G80ARJZ-RL may also evaluate the AD8293G160 variant for higher gain applications within the same series and pinout. Other families within Analog Devices’ instrumentation amplifier portfolio, such as the AD8420 or AD8221, might be explored for alternate gain settings, package forms, or specific input impedance or bandwidth requirements. Selection should be based on required gain, package preference, integration level, and target application performance criteria.

Conclusion

The AD8293G80ARJZ-RL instrumentation amplifier excels in delivering precision, integration, and low error performance for engineers designing analog front ends in compact and high-density systems. Its autocorrecting architecture enables superior offset, noise, and common-mode rejection, while the built-in resistors and filters streamline board-level implementation. With a robust feature set geared for single- and dual-supply operation, as well as versatile output and reference strategies, the AD8293G80ARJZ-RL is a dependable choice for applications ranging from industrial sensing to portable medical instrumentation. Product selectors and procurement engineers will recognize its capacity to optimize system accuracy, reliability, and footprint with minimal compromise.
