Texas Instruments TPS61055YZGR

Series Introduction Texas Instruments TPS61055YZGR LED Driver Chip

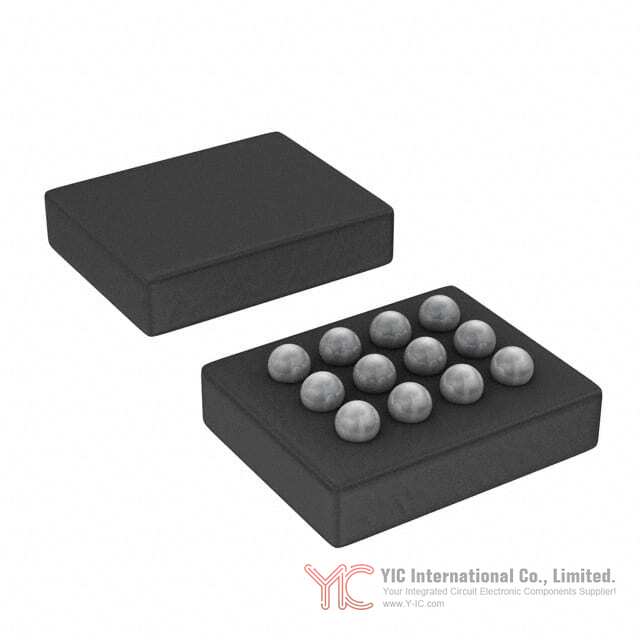

The Texas Instruments TPS61055YZGR is a high-efficiency synchronous boost converter tailored to drive high-power white LEDs, particularly in mobile and portable device applications. Packaged in a compact 12-ball DSBGA NanoFree™ footprint, the TPS61055YZGR integrates a sophisticated DC-DC regulator and a PWM controller, supporting output currents up to 500mA in flash mode. The device is designed to address stringent requirements for size, power efficiency, and fast response in modern camera flash, torch, and general illumination applications.

Main Functions and Working Modes of TPS61055YZGR

TPS61055YZGR offers multiple operational modes, enabling flexible control in different system states:

Torch Mode and Flash Mode: Drives LED currents up to 700mA, supporting both steady illumination (torch) and brief, high-intensity pulses (flash).

Voltage-Regulated Boost Operation: Functions as a standard boost regulator with a regulated output voltage of 5.0V, useful for powering subsystems like audio amplifiers or other peripherals requiring higher supply voltages.

Low-Light Dimming: Utilizes a fixed-frequency PWM modulation scheme to enable precision brightness control at low light levels, achieving high usability in variable lighting environments.

Shutdown Mode: Reduces the device's quiescent current to as low as 0.3μA, with a high-impedance LED output to prevent leakage during inactivity.

Integrated Features: Includes safety timers for LED turn-on, TX-masking (zero latency input for load current reduction), open/short LED failure protection, overtemperature shutdown, and an LED disconnect function during shutdown.

These operation modes are controlled by standard logic interface pins (MODE0/1 and FLASH_SYNC), simplifying integration with a host microcontroller or camera module.

Essential Electrical and Physical Characteristics of TPS61055YZGR

The TPS61055YZGR is optimized for use in compact, high-reliability designs. Key specifications include:

High Efficiency: Up to 96% in boost mode, thanks to a low 250mV feedback sense voltage and high-frequency (2MHz) synchronous topology.

Input Voltage Range: 2.5V to 6.0V, compatible with standard lithium-ion battery systems.

Output Current: Supports up to 500mA for flash applications, with integrated current regulation.

Package Options: 12-ball DSBGA and 10-pin VSON, with an overall circuit solution area <25mm².

Thermal Performance: Supports operation from -40°C to +85°C ambient temperature, maximum junction temperature of 150°C, and features thermal shutdown for protection.

ESD Protection: Integrated protection for safe manufacturing and handling.

Environmental Compliance: Pb-Free, RoHS-compliant packages suitable for modern assembly and environmental standards.

Engineering Applications Using TPS61055YZGR

The versatility of TPS61055YZGR makes it an ideal choice for white LED driving in a range of portable systems, including:

Camera flashlight modules in cell phones, smartphones, and PDAs where rapid response and high current delivery are critical for synchronized photo capture.

General illumination solutions in compact, battery-powered devices, leveraging the high efficiency and adjustable output modes for optimal power management.

Power supply for audio amplifiers or other subsystems requiring voltage higher than the battery level.

Dual LED flash applications (e.g., 2 x 350mA configuration), made possible by scalable output and flexible mode selection.

In each case, the synchronous boost architecture minimizes ripple, supports small inductors (typically 2.2μH), and provides robust handling of load and line transients, essential for reliable system performance.

Design Recommendations TPS61055YZGR Circuit, Layout, and Heat Dissipation

Optimal performance of TPS61055YZGR depends on careful engineering decisions regarding passive components, board layout, and thermal considerations:

Inductor Selection: Use 1.3μH–2.9μH inductors rated for expected peak currents (e.g., ≥1000mA for full-load flash operation), prioritizing low hysteresis and copper losses to maximize efficiency.

Capacitor Selection: Implement low-ESR ceramic capacitors (10μF recommended on input, ≥3μF on output for stability) close to device pins, ensuring minimal voltage ripple and robust transient response.

Layout: Short, wide traces for main current paths and dedicated nodes for power and control grounds help minimize EMI and stability issues at 2MHz switching frequency.

Thermal Management: The package should be mounted with a thermal pad soldered to the PCB, with additional measures including improved PCB thermal dissipation, enhanced coupling, or system airflow for high current or extended flash operation.

Loop Stability: Engineers should evaluate steady-state signals (switching node, inductor current, output voltage ripple) and perform load transient tests to ensure adequate phase margin and damping across input voltage, output current, and temperature ranges.

Alternative/Ersatz Models Suitable for Replacing TPS61055YZGR

For design flexibility or obsolescence planning, engineers may consider other members of the Texas Instruments TPS6105x family as potential replacements. The TPS61054 is a closely related model with similar functionality and performance characteristics, compatible in many single-LED flash or torch applications. When evaluating equivalents, engineers should match operating current, package type, control interface, and safety features to ensure seamless substitution. Detailed datasheet comparison is recommended for system-specific requirements.

Conclusion

: Engineering Value of TPS61055YZGR in Modern LED Designs

The Texas Instruments TPS61055YZGR stands out in the high-power white LED driver IC landscape by providing exceptional efficiency, robust safety and protection features, and versatile operating modes—all within a remarkably compact package. For engineers and procurement professionals selecting critical components for mobile camera flash, portable lighting, or compact power regulation, TPS61055YZGR offers a well-documented, field-proven solution adaptable to current and future system needs. Thoughtful component selection and system-level integration unlock the full capabilities of this device, making it a highly competitive choice in advanced electronic design projects.
